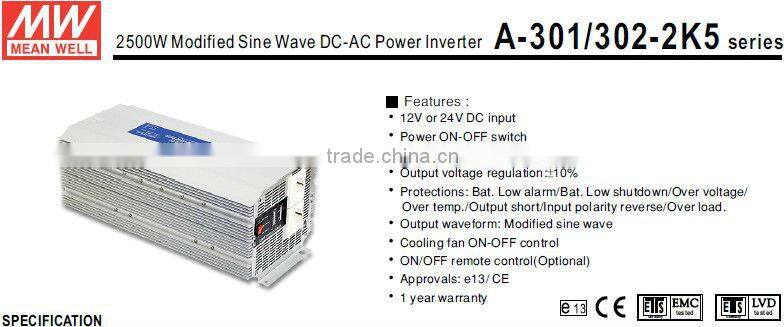

Mean Well 110v 2500W Modified Sine Wave Power Inverter 2500w

Name: Mean Well 110v 2500W Modified Sine Wave Power Inverter 2500w
Brand: Meanwell
SKU: 117409617
Availability: InStock

US$ 1 - 300 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

A302-2K5-B4

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number A302-2K5-B4

Output Power Other, 2500W

Output Type Single

Input Voltage Other, 24V

Output Voltage 110V

Output Frequency 47~63Hz

Output Current 130A

Specifications

ORDER NO.		A302-2K5-B4
OUTPUT	SAFETY MODEL NO.	A-300-2K5W
	AC VOLTAGE	110V
	RATED POWER	2500W
	SURGE POWER	5000W
	WAVE FORM	Modified Sine Wave
	FREQUENCY	60Hz ±1%
	AC REGULATION	±10%

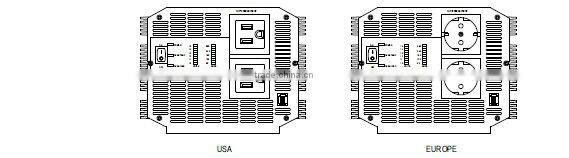

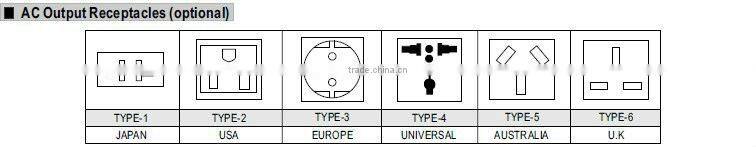

	STANDARD RECEPTACLES	TYPE-2* 2ea
	LED INDICATOR	Green LED for power on; Yellow LED for O.T.P.; Red LED for O.L.P.; Battery V/A meter
INPUT	DC CURRENT	130A
	NO LOAD CURRENT DRAW	0.6A
	DC VOLTAGE	24V
	VOLTAGE RANGE	21~ 30VDC
	EFFICIENCY (Typ.)	85%
	DC CONNECTOR	None
	FUSE	15 A * 12
PROTECTION	BAT. LOW ALARM	21± 0.8V
	BAT. LOW SHUTDOWN	20± 0.8V
	OVER LOAD	>2700W shut down o/p voltage, re-power to recover
	OVER VOLTAGE	30~32V
	OVER TEMPERATURE	60± 5°C / 140± 9F
	OUTPUT SHORT	Shut-off
	BAT. POLARITY	By fuse open
ENVIRONMENT	WORKING TEMP.	0~25°C at 100% load
	WORKING HUMIDITY	20%~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-30~+70°C / -22~ +158 F, 10~95%RH
	TEMP. COEFFICIENT	±0.05%/°C (0~50°C)
SAFETY&EMC	ISOLATION RESISTANCE	I/P-O/P: 100M Ohms / 500VDC / 25°C/ 70% RH
	EMI CONDUCTION & RADIATION	Compliance to EN55022 class B, 72/ 245/ CEE, 95/ 54/ CE
	EMC IMMUNITY	Compliance to EN61000-4-2,3
	LVD	Compliance to EN60950
OTHERS	MTBF	37Khrs min. MIL-HDBK-217F (25°C)

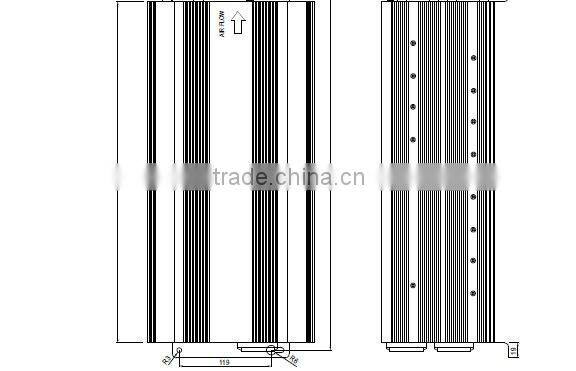

	DIMENSION	430210159mm (LWH)
	PACKING	8.7kg ; 2pcs / 19kg / CARTON
	COOLING	>40°C (NTC) fan on
	APPLICATIONS	Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc.
