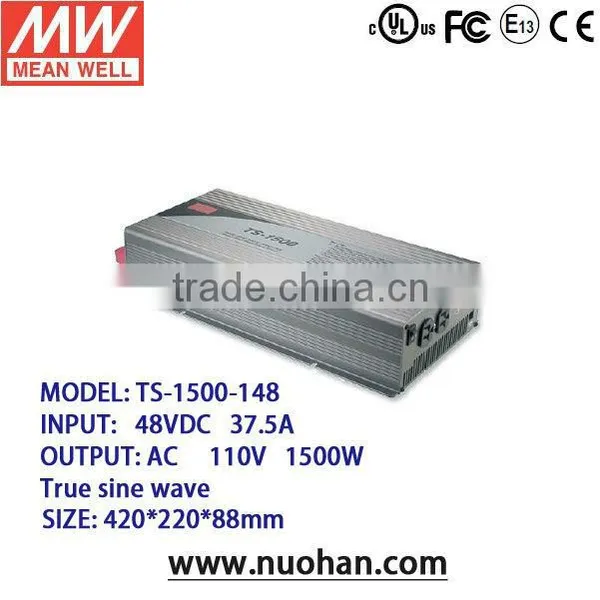

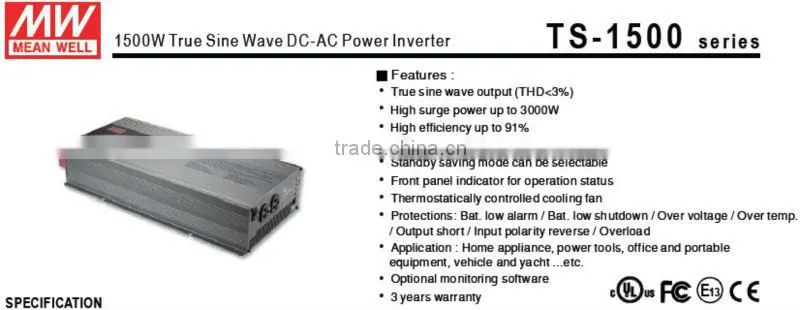

Help CenterMeanwell 1500W True Sine Wave DC-AC Power Inverted Levers
Related Products
-
Meanwell Power Inverter Remote ControlUS$ 1 - 10MOQ: 10 Pieces -
Meanwell 700W True Sine Wave DC-AC Power Inverter ac InverterUS$ 1 - 10MOQ: 10 Pieces
-
Meanwell 400W True Sine Wave DC-AC Power Inverter ChargerUS$ 1 - 10MOQ: 10 Pieces
-
Meanwell 400W True Sine Wave DC-AC Power Inverter SolarUS$ 1 - 10MOQ: 10 Pieces
-
Meanwell 200W True Sine Wave DC-AC Power Inverter ac InverterUS$ 1 - 10MOQ: 10 Pieces
MODEL |
TS-1500-148 |
|
OUTPUT |
RATED POWER |
1500W |
MAXIMUM OUTPUT POWER |
1725W for 180 sec. / 1875W for 10 sec. / surge power 3000W for 30 cycles |
|
AC VOLTAGE |
100 / 110 / 115 / 120VAC selectable by setting button |
|
FREQUENCY |
60 ±0.1Hz 50/60Hz selectable by setting buttonS.W |
|
WAVEFORM Note. 2 |
True sine wave (THD<3%) at rated input voltage |
|
AC REGULATION (Typ.) |
±3.0% |
|
SAVING MODE (Typ.) |
Default disabled. Load≤5W will be changed to standby mode |
|
FRONT PANEL INDICATOR |
Battery voltage level, output load level, saving mode, fault and operation status |
|
|
INPUT
|
BAT. VOLTAGE |
48V |
VOLTAGE RANGE (Typ.) Note. 3, 6 |
42 ~ 60VDC |
|
DC CURRENT (Typ.) Note. 5 |
37.5A |
|
NO LOAD DISSIPATION |
≤18W at standby saving mode |
|
OFF MODE CURRENT DRAW |
≤1mA |
|
EFFICIENCY (Typ.) Note.2 |
89% |
|
BATTERY TYPES |
Open & sealed Lead Acid |
|
BATTERY INPUT PROTECTION |
FUSE |
30A*2 |
BAT. LOW ALARM |
45± 4% |
|
BAT. LOW SHUTDOWN |
42± 4% |
|
BAT. POLARITY |
By internal fuse open |
|
OUTPUTPROTECTION |
OVER TEMPERATURE |
96°C ± 5°C |
Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode | ||
OUTPUT SHORT |
Protection type : Shut down o/p voltage, re-power on to recover |
|
OVER LOAD (Typ.) |
105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. |
|
Protection type : Shut down o/p voltage, re-power on to recover | ||
GFCI PROCTECTION |

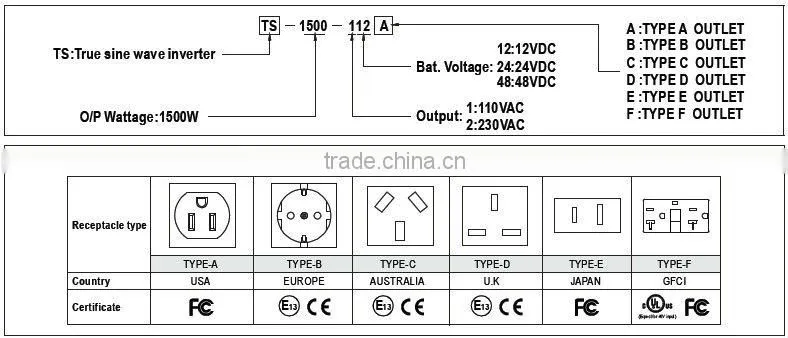

UL458 (only for "GFCI" receptacle-Type F ) |
|
ENVIRONMENT |
WORKING TEMP. Note.4 |
0~+40°C at 100% load 60°C at 50% load |
WORKING HUMIDITY |
20%~90% RH non-condensing |
|
STORAGE TEMP., HUMIDITY |
-30~+70°C / -22~ +158 F, 10~95%RH |
|
VIBRATION |
10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes |
|
SAFETY&EMC |
SAFETY STANDARDS |
None |
LVD |
None |
|
WITHSTAND VOLTAGE |
Bat. I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC |
|
ISOLATION RESISTANCE |
AC O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH |
|
|
EMC EMISSION |
Compliance to FCC class A |
EMC IMMUNITY |
None |
|
OTHERS |
CONTROL WIRING |
RJ11 -RS232 (Option) |
DIMENSION |
420*220*88mm (L*W*H) |
|
PACKING |
6.81Kg; 2pcs/14.6Kg/1.61CUFT |
|
NOTE |
1.Output derating capacity referenced by curve 1. 2.THD and Efficiency is tested by 1000W, linear load at 13V, 26V, 52V input voltage. 3.Input derating capacity referenced by curve 2. 4. All parameters not specified above are measured at rated load, 25°C of ambient temperature. 5. DC current is tested by 1500W, linear load at 13V, 26V, 52V input voltage. The tolerance of each voltage value by models is:112/212 →±0.5V;124/224 →±1V;148/248 →±2V |
|
