Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell 700W True Sine Wave DC-AC Power Inverter ac Inverter

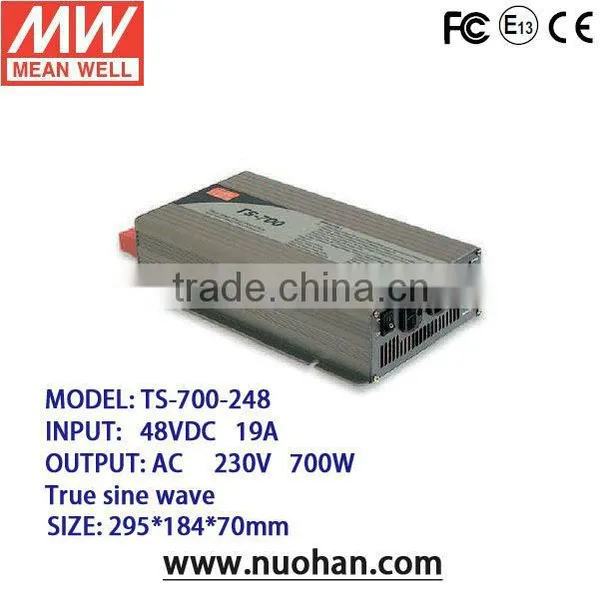

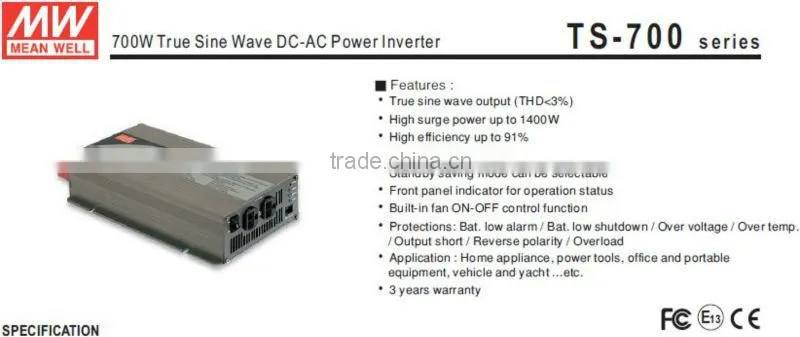

Meanwell 700W True Sine Wave DC-AC Power Inverter ac Inverter

Name: Meanwell 700W True Sine Wave DC-AC Power Inverter ac Inverter
Brand: Meanwell
SKU: 117409665
Availability: InStock

Meanwell 700W True Sine Wave DC-AC Power Inverter ac Inverter thumbnail-1

Meanwell 700W True Sine Wave DC-AC Power Inverter ac Inverter photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

TS-700-248

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number TS-700-248

Output Power Other, 700W

Output Type Single

Input Voltage Other, 48V

Output Voltage 200~240V

Output Current 2.9~3.5A

MODEL		TS-700-248
OUTPUT	RATED POWER	700W
	MAXIMUM OUTPUT POWER	800W for 180 sec. / 1050W for 10 sec. / surge power 1400W for 30 cycles
	AC VOLTAGE	Factory setting set at 230VAC
	AC VOLTAGE	200 / 220 / 230 / 240VAC selectable by setting button S.W
	FREQUENCY	50 ±0.1Hz 50/60Hz selectable by setting buttonS.W
	WAVEFORM	True sine wave (THD<3%) at rated input voltage
	AC REGULATION (Typ.)	±3.0%
	SAVING MODE (Typ.)	Default disabled. Load≤5W will be changed to standby mode
	FRONT PANEL INDICATOR	Battery voltage level, output load level, saving mode, fault and operation status
INPUT	BAT. VOLTAGE	48V
	VOLTAGE RANGE (Typ.) Note.3,5	42~ 60VDC
	DC CURRENT (Typ.)	19A
	NO LOAD DISSIPATION	≤6W at standby saving mode
	OFF MODE CURRENT DRAW	≤1mA
	EFFICIENCY (Typ.) Note.1	91%
	BATTERY TYPES	Open & sealed Lead Acid
BATTERY INPUT PROTECTION	FUSE	20A*2
	BAT. LOW ALARM	45± 4%
	BAT. LOW SHUTDOWN	42± 4%
	BAT. POLARITY	By internal fuse open
OUTPUTPROTECTION	OVER TEMPERATURE	75°C ± 5°C
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode
	OUTPUT SHORT	Protection type : Shut down o/p voltage, re-power on to recover
	OVER LOAD (Typ.)	105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.
	OVER LOAD (Typ.)	Protection type : Shut down o/p voltage, re-power on to recover
	GFCI PROCTECTION	None
ENVIRONMENT	WORKING TEMP. Note.4	0~+40°C at 100% load +60°C at 50% load
	WORKING HUMIDITY	20%~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-30~+70°C / -22~ +158 F, 10~95%RH
	VIBRATION	10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY&EMC	SAFETY STANDARDS	None
	LVD	EN60950-1
	WITHSTAND VOLTAGE	Bat. I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
	ISOLATION RESISTANCE	Bat. I/P-AC O/P, AC O/P-FG:100M Ohms / 500VDC / 25¢J/ 70% RH
	EMC EMISSION	Compliance to EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark
	EMC IMMUNITY	Compliance to EN61000-4-2,3,8
OTHERS	MTBF	74.4K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION	29518470mm (LWH)
	PACKING	3.8Kg; 2pcs/8.6Kg/1.27CUFT

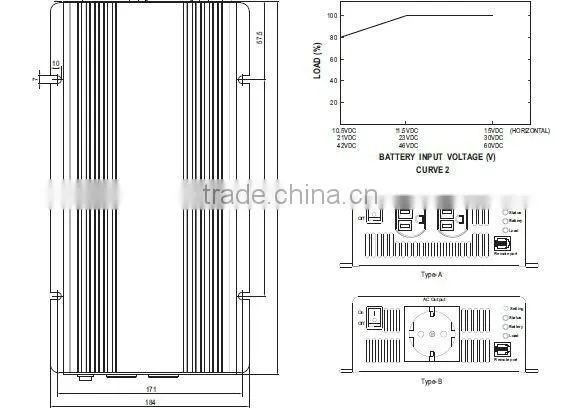

NOTE	1.Efficiency is tested by 530W, linear load at 13V, 26V, 52V input voltage. 2.All parameters not specified above are measured at rated load, 25°C of ambient temperature. 3.Input derating capacity referenced by curve 2. 4.Output derating capacity referenced by curve 1. 5.The tolerance of each voltage value by models is:112/212 →±0.5V;124/224 →±1V;148/248 →±2V
