Original MEAN WELL
OWA-60E-42
Output: 42V 1.5A 63W
Input: 90 ~ 264VAC 127 ~ 370VDC
Warranty: 5 years
Certificates: CB,EMC,CE
OUTPUT |
MODEL |
OWA-60E-42 |
DC VOLTAGE |
42V |
|
RATED CURRENT |
1.5A |
|
RATED POWER |
63W |
|
RIPPLE & NOISE (max.) Note.2 |
250mVp-p |
|
VOLTAGE TOLERANCE Note.3 |
±1.0% |
|
LINE REGULATION |
±1.0% |
|
LOAD REGULATION |
±1.0% |
|
SETUP, RISE TIME Note.4 |
500ms, 80ms/230VAC 1000ms, 80ms/115VAC at 95% load |
|
HOLD UP TIME (Typ.) |
10ms at full load 115VAC / 230VAC |
|
INPUT |
VOLTAGE RANGE |
90 ~ 264VAC 127 ~ 370VDC |
FREQUENCY RANGE |
47 ~ 63Hz |
|
EFFICIENCY (Typ.) |
90% |
|
AC CURRENT (Typ.) |
1.2A / 115VAC 0.7A / 230VAC |
|
INRUSH CURRENT (Typ.) |
COLD START 65A(twidth=750 s measured at 50% Ipeak) at 230VAC |
|
LEAKAGE CURRENT |
<0.25mA / 240VAC |
|
PROTECTION |
OVERLOAD |
105 ~ 115% |
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
SHORT CIRCUIT |
Hiccup mode, recovers automatically after fault condition is removed |
|
OVER VOLTAGE |
46 ~ 54V |
|
Protection type : Shut down o/p voltage, re-power on to recover | ||
OVER TEMPERATURE |
Shut down o/p voltage, re-power on to recover |
|
ENVIRONMENT |
WORKING TEMP. |
-35 ~ +70℃ (Refer to "Derating Curve") |
WORKING HUMIDITY |
20~90% RH non-condensing |
|
STORAGE TEMP., HUMIDITY |
-40 ~ +80℃ , 10 ~ 95% RH |
|
TEMP. COEFFICIENT |
±0.03%/ ℃(0 ~ 50℃ ) |
|
VIBRATION |
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes |
|
SAFETY&EMC (Note. 8) |
SAFETY STANDARDS |
EN61558-1,-2-16 listed; EN60335-1 listed(except for OWA-60E-48,54); IP67 approved for power body |
WITHSTAND VOLTAGE |
I/P-O/P:3.75KVAC |
|
ISOLATION RESISTANCE |
I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH |
|
EMC EMISSION |
Compliance to EN55022 (CISPR22) Class B, EN55014-1, EN61000-3-2 class A,EN61000-3-3 |
|
OTHERS |
MTBF |
292.8K hrs min. MIL-HDBK-217F (25 ) |
DIMENSION |

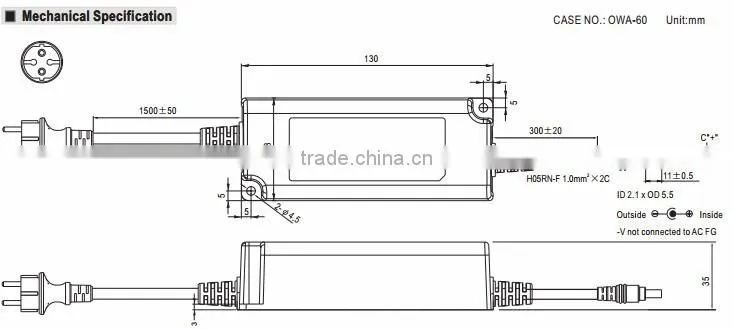

130*53*35mm |
|
PACKING |
0.41Kg; 16pcs/6.8Kg/0.85CUFT |
|
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.Length of set up time is measured at cold first start.Turing ON/OFF the power supply may lead to increase of the set up time. |
|
