Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > Meanwell 120W AC-DC Single Output Desktop ac Switching Power Supply

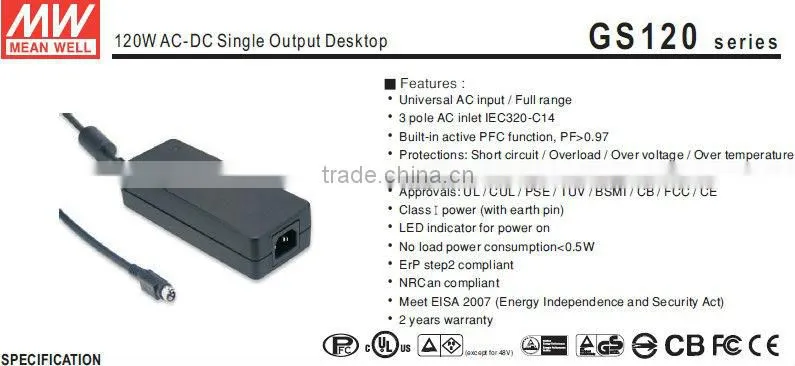

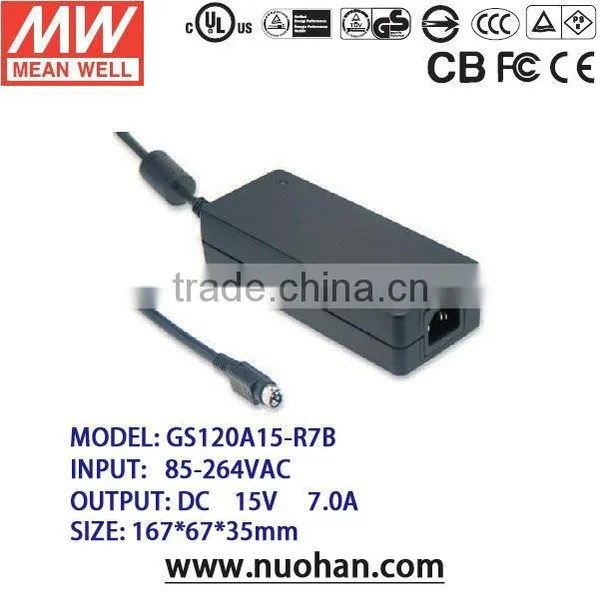

Meanwell 120W AC-DC Single Output Desktop ac Switching Power Supply

Name: Meanwell 120W AC-DC Single Output Desktop ac Switching Power Supply
Brand: Meanwell
SKU: 117409339
Availability: InStock

Meanwell 120W AC-DC Single Output Desktop ac Switching Power Supply thumbnail-1

Meanwell 120W AC-DC Single Output Desktop ac Switching Power Supply photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

GS120A15

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number GS120A15

Output Type DC

Connection Desktop

ORDER NO.			GS120A15-R7B
OUTPUT	SAFETY MODEL NO.		GS120A15
	DC VOLTAGE		15V
	RATED CURRENT		7A
	CURRENT RANGE		0 ~ 7A
	RATED POWER		105W
	RIPPLE & NOISE (max.) Note.2		120mVp-p
	VOLTAGE TOLERANCE Note.3		±5.0%
	LINE REGULATION Note.4		±1.0%
	LOAD REGULATION		±5.0%
	SETUP, RISE TIME Note.6		2000ms, 30ms / 230VAC 2500ms, 30ms / 115VAC at full load
	HOLD UP TIME (Typ.)		20ms / 230VAC 20ms / 115VAC at full load
INPUT	VOLTAGE RANGE Note.7		85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE		47 ~ 63Hz
	POWER FACTOR (Typ.)		PF>0.97 / 230VAC PF>0.99 / 115VAC at full load
	EFFICIENCY (Typ.)	R7B	89%
		P1M	……
	AC CURRENT		1.4A / 115VAC 0.7A / 230VAC
	INRUSH CURRENT (max.)		70A / 230VAC
	LEAKAGE CURRENT(max.)		0.75mA / 240VAC
PROTECTION	OVERLOAD		105 ~ 160%rated output power
			Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE		105 ~ 135%rated output voltage
			Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE		RTH2 > 100°C ±10°C
			Protection type : Shut down o/p voltage, re-power on to recover

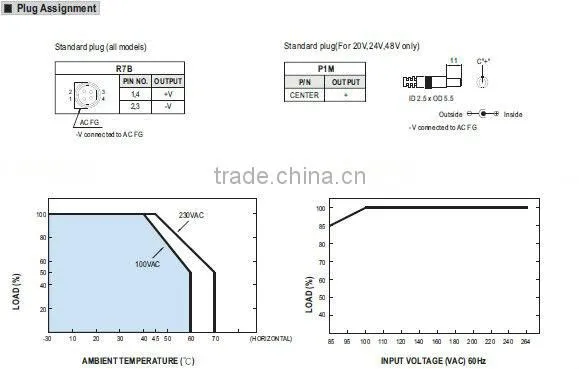

ENVIRONMENT	WORKING TEMP.		-30 ~ +70°C(Refer to "Derating Curve")
	WORKING HUMIDITY		20%~90% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40~+85°C, 10~95%RH
	TEMP. COEFFICIENT		±0.03%/°C (0~50°C)
	VIBRATION		10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC (Note. 5)	SAFETY STANDARDS		UL60950-1, TUV EN60950-1, BSMI CNS14336, J60950-1(except for 48V) approved
	WITHSTAND VOLTAGE		I/P-O/P:3KVAC
	ISOLATION RESISTANCE		I/P-O/P:100M Ohms /500VDC/25°C/70% RH
	EMC EMISSION		Compliance to EN55022(CISPR22) ,EN61204-3 class B, CNS13438 class B, FCC PART 15, EN61000-3-2,3
	EMC IMMUNITY		Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
OTHERS	MTBF		400.7K hrs min. MIL-HDBK-217F(25°C)

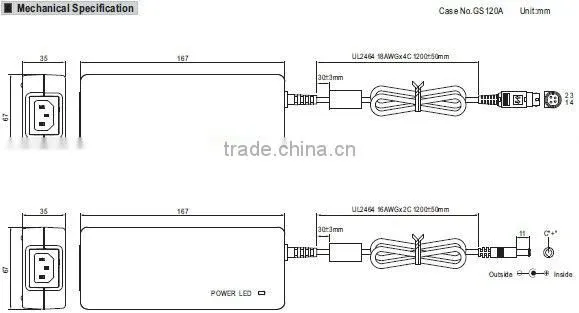

	DIMENSION		1676735mm (LWH)
	PACKING		0.62Kg; 20pcs/13.4Kg/0.9CUFT
CONNECTOR	PLUG		See page 2 ; Other type available by customer requested
	CABLE		See page 2 ; Other type available by customer requested
NOTE	1.All parameters are specified at 230VAC input, rated load, 25°C 70% RH ambient. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 3.Tolerance: includes set up tolerance, line regulation, load regulation. 4.Line regulation is measured from low line to high line at rated load. 5.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. Derating may be needed under low input voltages. Please check the derating curve for more details.
