Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > Meanwell 160W AC-DC Single Output Desktop 48v Switching Power Supply/switching Power Supply Adapter Quality Choice

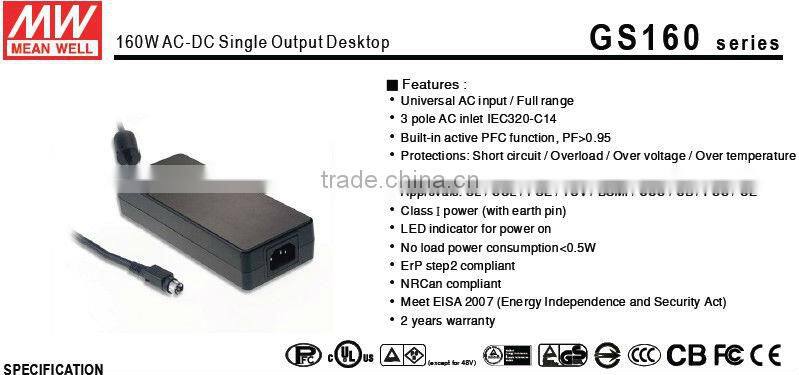

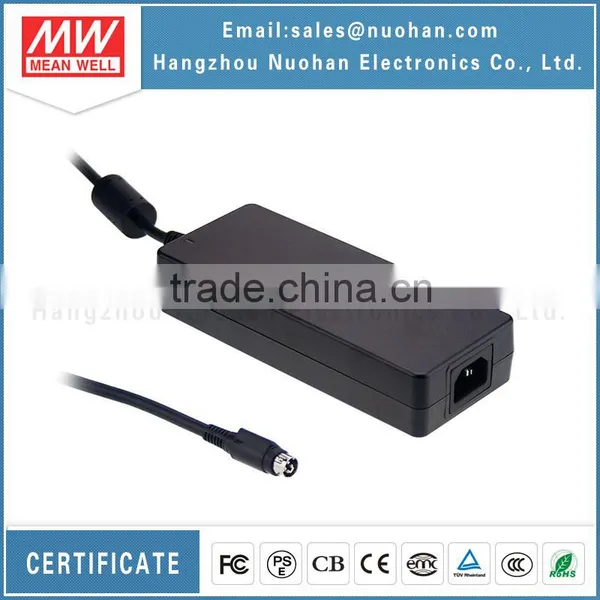

Meanwell 160W AC-DC Single Output Desktop 48v Switching Power Supply/switching Power Supply Adapter Quality Choice

Name: Meanwell 160W AC-DC Single Output Desktop 48v Switching Power Supply/switching Power Supply Adapter Quality Choice
Brand: Meanwell
SKU: 117409329
Availability: InStock

Meanwell 160W AC-DC Single Output Desktop 48v Switching Power Supply/switching Power Supply Adapter Quality Choice thumbnail-1

Meanwell 160W AC-DC Single Output Desktop 48v Switching Power Supply/switching Power Supply Adapter Quality Choice photo-1

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

GS160A48-R7B

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number GS160A48-R7B

Output Type DC

Connection Desktop

ORDER NO.		GS160A48-R7B
OUTPUT	SAFETY MODEL NO.	GS160A48
	DC VOLTAGE	48V
	RATED CURRENT	3.34A
	CURRENT RANGE	0 ~3.34A
	RATED POWER	160W
	RIPPLE & NOISE (max.) Note.2	240mVp-p
	VOLTAGE TOLERANCE Note.3	±3.0%
	LINE REGULATION Note.4	±1.0%
	LOAD REGULATION	±3.0%
	SETUP, RISE TIME Note.6	2000ms, 20ms / 230VAC 2500ms, 20ms / 115VAC at full load
	HOLD UP TIME (Typ.)	20ms / 230VAC 20ms / 115VAC at full load
INPUT	VOLTAGE RANGE Note.7	85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.95 / 230VAC PF>0.98 / 115VAC at full load
	EFFICIENCY (Typ.)	94%
	AC CURRENT	1.85A / 115VAC 1A / 230VAC
	INRUSH CURRENT (max.)	120A / 230VAC
	LEAKAGE CURRENT(max.)	0.75mA / 240VAC
PROTECTION	OVERLOAD	105 ~ 135%rated output power
	OVERLOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	105 ~ 135%rated output voltage
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	90°C ±10°C (RTH2) detect on inside ambient temperature
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover

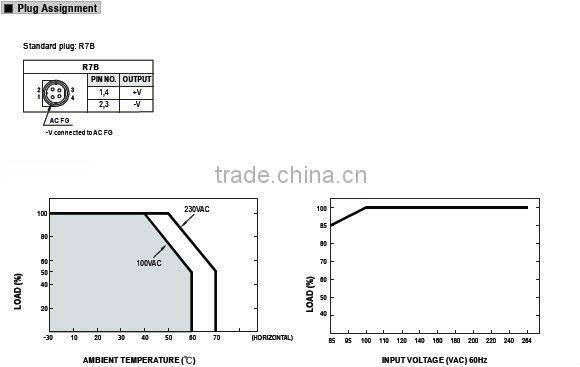

ENVIRONMENT	WORKING TEMP.	-30 ~ +70°C(Refer to "Derating Curve")
	WORKING HUMIDITY	20%~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC (Note. 5)	SAFETY STANDARDS	UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, J60950-1(except for 48V) approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms /500VDC/25°C/70% RH
	EMC EMISSION	Compliance to EN55022(CISPR22) ,EN61204-3 class B, CNS13438 class B, GB9254-1 class B, EN61000-3-2,3, GB17625.1
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
OTHERS	MTBF	290.3K hrs min. MIL-HDBK-217F(25°C)
	DIMENSION	1757235mm (LWH)
	PACKING	0.66Kg; 20pcs/ 14.2Kg/ 0.85CUFT
CONNECTOR	PLUG	See page 2 ; Other type available by customer requested
CONNECTOR	CABLE	See page 2 ; Other type available by customer requested
NOTE	1.All parameters are specified at 230VAC input, rated load, 25°C 70% RH ambient. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 3.Tolerance: includes set up tolerance, line regulation, load regulation. 4.Line regulation is measured from low line to high line at rated load. 5.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. Derating may be needed under low input voltages. Please check the derating curve for more details.
