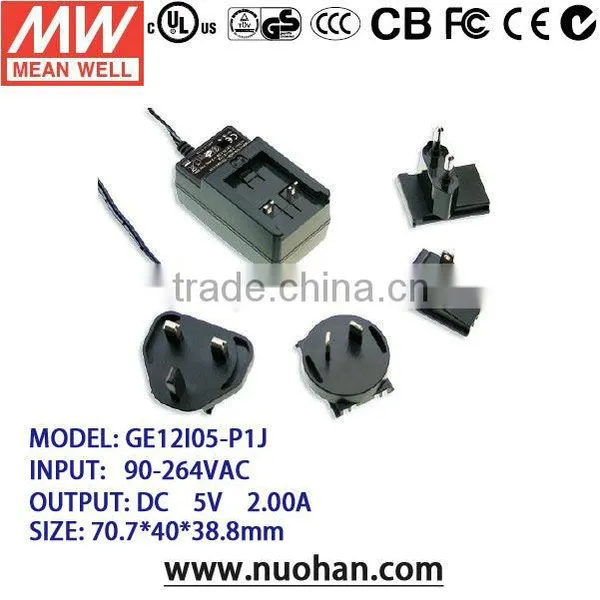

Meanwell 10 ~ 12W AC-DC Single Output Wall-mounted Type Ac/dc Switching Power Supply/5v 2a Switching Power Supply

ORDER NO.

GS12E05-P1I

OUTPUT

SAFETY MODEL NO.

GS12E05

DC VOLTAGE

5V

RATED CURRENT

2.0A

CURRENT RANGE

0 ~ 2.0A

RATED POWER

10W

RIPPLE & NOISE (max.)   Note.2

75mVp-p

VOLTAGE TOLERANCE       Note.3

±5.0%

LINE REGULATION       Note.4

±1.0%

LOAD REGULATION      Note.5

±5.0%

SETUP, RISE, HOLD UP TIME

500ms, 20ms, 30ms/230VAC 500ms, 20ms, 10ms/115VAC at full load

INPUT

VOLTAGE RANGE

90 ~ 264VAC     135 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

76%

AC CURRENT

0.31A / 115VAC       0.16A / 230VAC

INRUSH CURRENT (max.)

COLD START 25A / 115VAC     45A / 230VAC

LEAKAGE CURRENT(max.)

0.25mA / 240VAC

PROTECTION

OVERLOAD

>105 %rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

115% ~ 135%

Protection type : Clamp by zener diode

OVER TEMPERATURE Note.6

U1 Tj 140°C typically (U1) Detect on main control IC

Protection type : Shut down o/p voltage, recoversautomatically after temperature goes down

ENVIRONMENT

WORKING TEMP.

0 ~ +50°C(Refer to "Derating Curve")

WORKING HUMIDITY

20~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20~+85°C, 10~95%RH

TEMP. COEFFICIENT

±0.03%/°C( 0~ 40°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY&EMC

SAFETY STANDARDS

UL60950-1, CSA22.2, BSMI CNS14336 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC

ISOLATION RESISTANCE

I/P-O/P:100M Ohms /500VDC/25°C/70% RH

EMC EMISSION

Compliance to FCC PART 15 / CISPR22 class B, CNS13438 class B

OTHERS

MTBF

1414.6Khrs min.  MIL-HDBK-217F(25°C)

DIMENSION

65*47*26.5mm (L*W*H)

PACKING

0.15Kg ; 100pcs / 16Kg / CARTON

CONNECTOR

PLUG

Standard type P1I: 2.1 * 5.5 * 9.5mm turning fork type, center positive for stock ; Other type available by customer requested

CABLE

Standard type UL1185 6ft (4FT only for 5V output) for stock ; Other type available by customer requested

NOTE

1.All parameters are specified at 115VAC input, rated load, 25°C 70% RH ambient.

2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.

3.Tolerance: includes set up tolerance, line regulation, load regulation.

4.Line regulation is measured from low line to high line at rated load.

5.Load regulation is measured from 10% to 100% rated load.

6.The over temperature protection (OTP) is the built-in function of the control IC (U1). The activating level described above is based on the specificationprovided by the IC manufacturer.
