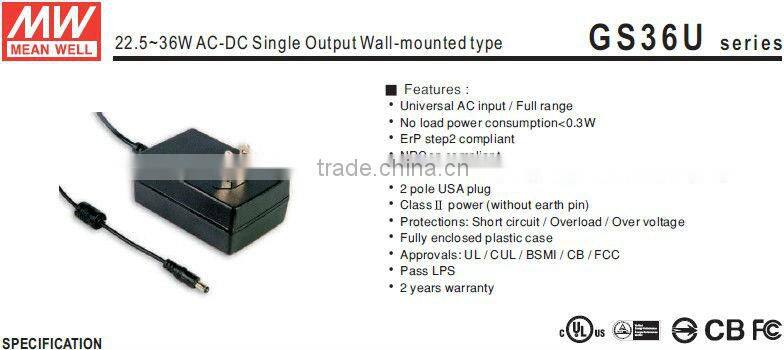

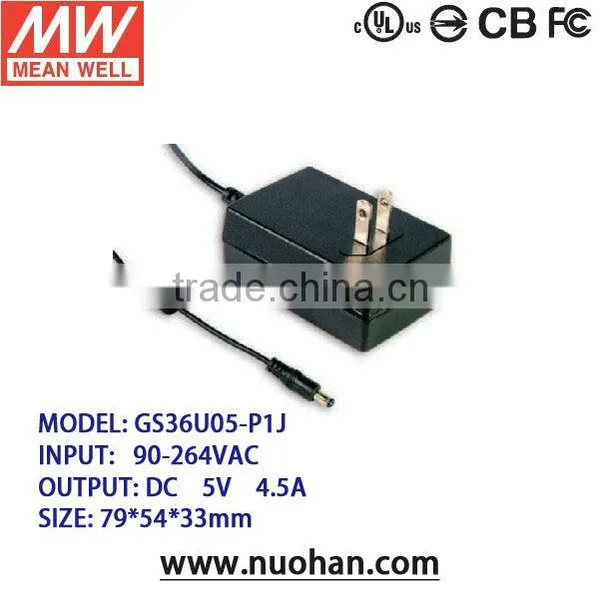

Help CenterMeanwell GS36U05-P1J 22.5~36W AC-DC Wall-mounted Type Ac-dc Switching Power Supply
Related Products
-
Mean Well 20~25W Wall Mounted Power SupplyUS$ 1 - 15MOQ: 1 Piece -
Meanwell 15~18W AC-DC Single Output Wall-mounted Type 18v 1a Switching Power SupplyUS$ 1 - 10MOQ: 10 Pieces
-
Meanwell 15~18W AC-DC Single Output Wall-mounted Type 12v Switching Power SupplyUS$ 1 - 10MOQ: 1 Piece
-
Meanwell 10 ~ 12W AC-DC Single Output Wall-mounted Type Ac/dc Switching Power Supply/5v 2a Switching Power SupplyUS$ 1 - 10MOQ: 10 Pieces
-
Mean Well OWA-60E-42 60W Moistureproof Adaptor 42v European 2P 60w 42v AdaptorUS$ 1 - 30MOQ: 1 Piece
ORDER NO. |
GS36U05-P1J |
|
OUTPUT |
SAFETY MODEL NO. |
GS36U05 |
DC VOLTAGE Note.2 |
5V |
|
RATED CURRENT |
4.5A |
|
CURRENT RANGE |
0 ~ 4.5A |
|
RATED POWER |
22.5W |
|
RIPPLE & NOISE (max.) Note.3 |
90mVp-p |
|
VOLTAGE TOLERANCE Note.4 |
±5.0% |
|
LINE REGULATION Note.5 |
±1.0% |
|
LOAD REGULATION Note.6 |
±5.0% |
|
SETUP, RISE, HOLD UP TIME |
1000ms, 20ms, 50ms/230VAC 1000ms, 20ms, 15ms/115VAC at full load |
|
INPUT |
VOLTAGE RANGE |
90 ~ 264VAC 135 ~ 370VDC |
FREQUENCY RANGE |
47 ~ 63Hz |
|
EFFICIENCY (Typ.) |
76.5% |
|
AC CURRENT |
0.7A / 100VAC |
|
INRUSH CURRENT (max.) |
35A / 115VAC |
|
LEAKAGE CURRENT(max.) |
0.25mA / 240VAC |
|
PROTECTION |
OVERLOAD |
110 ~ 250 %rated output power |
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
OVER VOLTAGE |
105% ~ 135% rated output voltage |
|
Protection type : Clamp by zener diode | ||
ENVIRONMENT |
WORKING TEMP. |

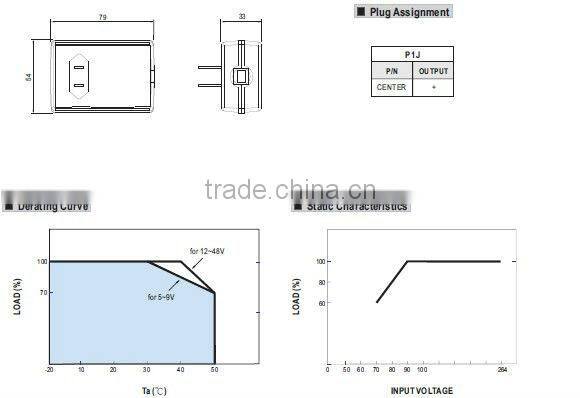

-20 ~ +50°C(Refer to "Derating Curve") |
WORKING HUMIDITY |
20~90% RH non-condensing |
|
STORAGE TEMP., HUMIDITY |
-20~+85°C, 10~95%RH |
|
TEMP. COEFFICIENT |
±0.03%/°C( 0~ 50°C) |
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|
|
SAFETY&EMC (Note. 7) |
SAFETY STANDARDS |
UL60950-1, CSA22.2, BSMI CNS14336 approved |
WITHSTAND VOLTAGE |
I/P-O/P:4242VDC |
|
ISOLATION RESISTANCE |
I/P-O/P:100M Ohms /500VDC/25°C/70% RH |
|
EMC EMISSION |
Compliance to FCC PART 15 / CISPR22 class B, CNS13438 class B |
|
OTHERS |
MTBF |
692.3Khrs min. MIL-HDBK-217F(25°C) |
DIMENSION |
79*54*33mm (L*W*H) |
|
PACKING |
226g ; 60pcs / 15.5kg / CARTON |
|
CONNECTOR |
PLUG |

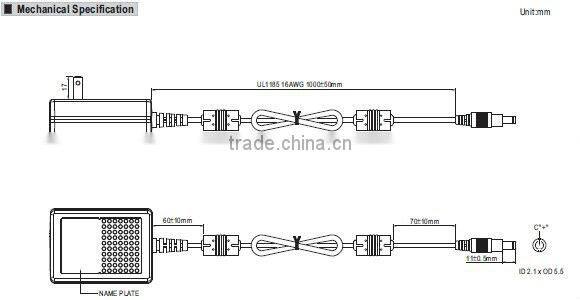

See page2 |
CABLE |
See page2 |
|
NOTE |
1.All parameters are specified at 115VAC input, rated load, 25°C 70% RH ambient. 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load. 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 4.Tolerance: includes set up tolerance, line regulation, load regulation. 5.Line regulation is measured from low line to high line at rated load. 6.Load regulation is measured from 20% to 100% rated load 7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with theEMC directives. |
|
