Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > Meanwell 60W Moistureproof Adaptor 54v

Meanwell 60W Moistureproof Adaptor 54v

Name: Meanwell 60W Moistureproof Adaptor 54v
Brand: Meanwell
SKU: 117409211

Meanwell 60W Moistureproof Adaptor 54v thumbnail-1

Meanwell 60W Moistureproof Adaptor 54v photo-1

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

OWA-60U-54

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shezhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number OWA-60U-54

Output Type DC

Connection Plug In

Product Overviews

Original MEAN WELL

OWA-60U-54

Output: 54V 1.12A 60W

Input: 90~264VAC 127~.48370VDC

Warranty: 5 years

Certificates: UL,FCC

Specifications

OUTPUT	MODEL		OWA-60U-54
	DC VOLTAGE		54V

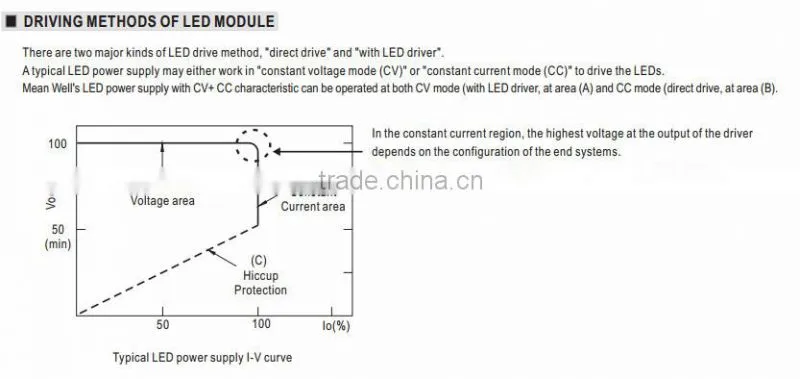

	CONSTANT CURRENT REGION		27~ 54V
	RATED CURRENT		1.12A
	RATED POWER		60.48W
	RIPPLE & NOISE (max.) Note.2		350mVp-p
	VOLTAGE TOLERANCE Note.3		±1.0%
	LINE REGULATION		±1.0%
	LOAD REGULATION		±1.0%
	SETUP, RISE TIME Note.4		500ms, 80ms/230VAC 1000ms, 80ms/115VAC at 95% load
	HOLD UP TIME (Typ.)		10ms at full load 115VAC / 230VAC
INPUT	VOLTAGE RANGE		90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE		47 ~ 63Hz

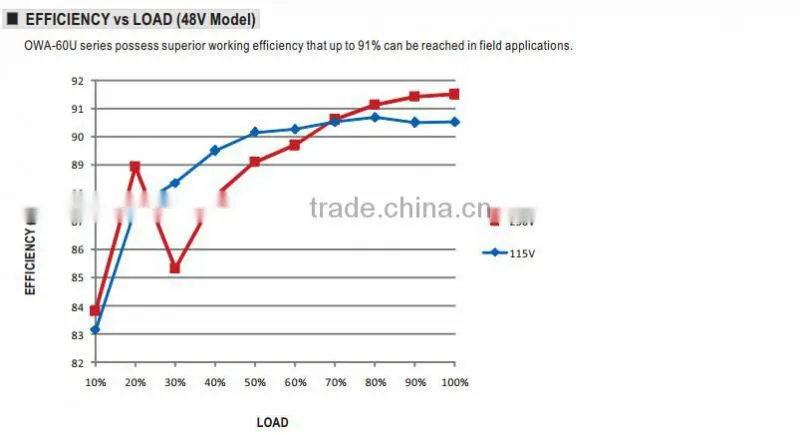

	EFFICIENCY (Typ.)	115VAC	89%
		230VAC	91%
	AC CURRENT (Typ.)		1.2A / 115VAC 0.7A / 230VAC
	INRUSH CURRENT (Typ.)		COLD START 35A(twidth=750 s measured at 50% Ipeak) at 115VAC COLD START 65A(twidth=750 s measured at 50% Ipeak) at 230VAC
	MAX. No. of PSUs on 16A CIRCUIT BREAKER		2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT		<0.25mA / 240VAC
PROTECTION	OVER CURRENT		95 ~ 108%
			Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT		Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE		58 ~ 66V
			Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE		Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.		-35 ~ +70℃ (Refer to "Derating Curve")
	WORKING HUMIDITY		20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 ~ +80℃ , 10 ~ 95% RH
	TEMP. COEFFICIENT		±0.03%/ ℃(0 ~ 50℃ )
	VIBRATION		10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC (Note. 8)	SAFETY STANDARDS		UL8750 listed; CSA C22.2 No.250.13-12(except for 42V,48V,54V); IP67 approved for power body
	WITHSTAND VOLTAGE		I/P-O/P:3.75KVAC
	ISOLATION RESISTANCE		I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH
	EMC EMISSION		Compliance to FCC Part15
OTHERS	MTBF		292.8K hrs min. MIL-HDBK-217F (25 )

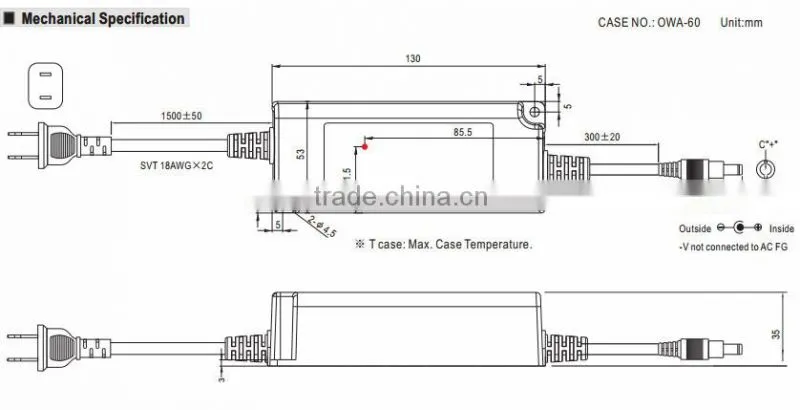

	DIMENSION		1305335mm
	PACKING		0.41Kg; 16pcs/6.8Kg/0.85CUFT
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.Length of set up time is measured at cold first start.Turing ON/OFF the power supply may lead to increase of the set up time.
