Meanwell 12v Adaptor/16.5~30WAC-DC Single Output and Medical Type Desktop/12v Medical Type Power Supply

Meanwell 12v Adaptor/16.5~30WAC-DC Single Output and Medical Type Desktop/12v Medical Type Power Supply thumbnail-1
Meanwell 12v Adaptor/16.5~30WAC-DC Single Output and Medical Type Desktop/12v Medical Type Power Supply photo-1
US$ 16 - 25 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mean Well
Model Number:
MES30C-3P1J
Contact Supplier Request Quote Chat Now
Hangzhou Nuohan Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mean Well
Model Number MES30C-3P1J
Output Type DC
Connection Plug In

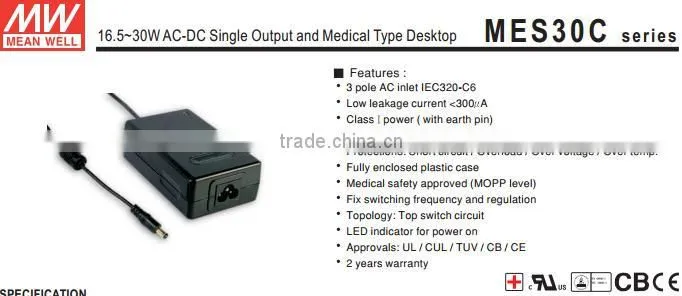

Meanwell 12v adaptor/16.5~30WAC-DC Single Output and Medical Type Desktop/12v medical type power supply

MODEL

MES30C-3P1J

OUTPUT

SAFETY MODEL NO

MES30C-3

DC VOLTAGE

12V

CURRENT RANGE

0 ~ 2.5A

RATED CURRENT

2.5A

RATED POWER

30W

RIPPLE&NOISE (max.)   Note.2

50mVp-p

VOLTAGE ADJ. RANGE

Fixed

VOLTAGE TOLERANCE Note.3

±3.0%



LINE REGULATION

±1.0%

LOAD REGULATION

±3.0%



SETUP, RISE HOLD UP TIME

300ms, 50ms, 16ms  at full load

INPUT

VOLTAGE RANGE

90 ~ 264VAC    135 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

76%

AC CURRENT (Typ.)

0.8A / 100VAC

INRUSH CURRENT (Typ.)

35A / 230VAC

LEAKAGE CURRENT

Earth leakage current < 300£gA/264VAC ,

 Touch current < 60£gA/264VAC

PROTECTION

OVERLOAD

150~350%  rated output power

Protection type : Hiccup mode, recovers automatically after

fault condition is removed

OVER TEMPERATURE

Tj 135 typically (IC1) detect on main control IC

Protection type : Shut down o/p voltage, recovers automatically

after temperature goes down

OVER VOLTAGE

110 ~ 140% rated output voltage

Protection type : Hiccup mode, recovers automatically after fault

condition is removed

ENVIRONMENT

WORKING TEMP.

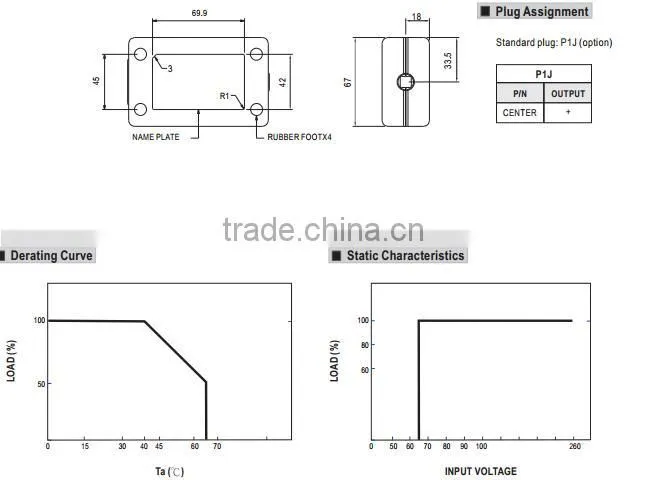

0~+65°C (Refer to derating curve)

WORKING HUMIDITY

20~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20~+85°C, 10~95%RH

TEMP. COEFFICIENT

±0.03%/°C (0~50°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY &

EMC

(Note 4)

SAFETY STANDARDS

ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved

WITHSTAND VOLTAGE

I/P-O/P: 5656VDC

EMC EMISSION

Compliance to EN55011(CISPR11) class B, EN61000-3-2,3

EMC IMMUNITY

Compliance to EN60601-1-2 (EN61000-4-2,3,4,5,6,8,11), l crit light industry level, eria A

ISOLATION  RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH

OTHERS

MTBF

400K hrs min. MIL-HDBK-217F (25 )

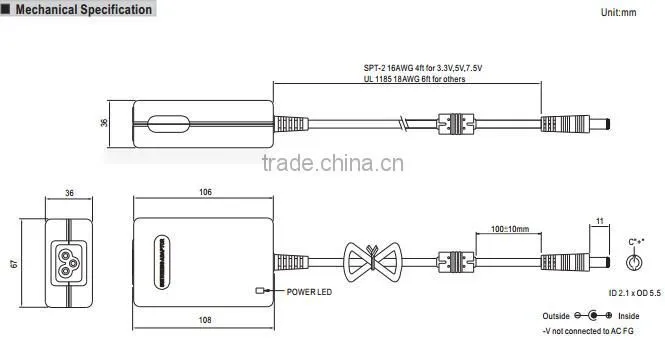

DIMENSION

108*67*36mm (L*W*H)



PACKING

0.3kg ;  54pcs/ 20kg / CARTON

CONNECTOR

PLUG

Standard type P1J: 2.1 * 5.5 * 11mm, turning fork type, center positive ;

for stock ther type available by customer requested

CABLE

SPT-2 16AWG 4FT for 3.3 ~ 7.5V ; UL1185 18AWG 6FT for 9 ~48V

NOTE

1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of

   ambient temperature.

2.. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with

 a  0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment.

 The final equipment must be re-confirmed that it still meets EMC directives.

5..DC voltage: The output voltage set at point measure by plug terminal & 50% load.

6.Load regulation is measured from 0% to 100% rated load.

7. Line regulation is measured from low line to high line at rated load.

8.Touch current was measured from primary input to DC output

 Meanwell 12v adaptor/16.5~30WAC-DC Single Output and Medical Type Desktop/12v medical type power supplyMeanwell 12v adaptor/16.5~30WAC-DC Single Output and Medical Type Desktop/12v medical type power supply
