Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > Meanwell 90W AC-DC Single Output Desktop ac to dc Switching Power Supply/15v 6a Switching Power Supply

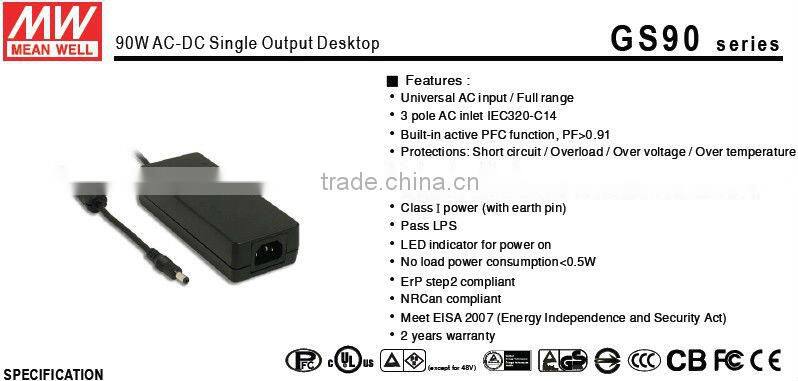

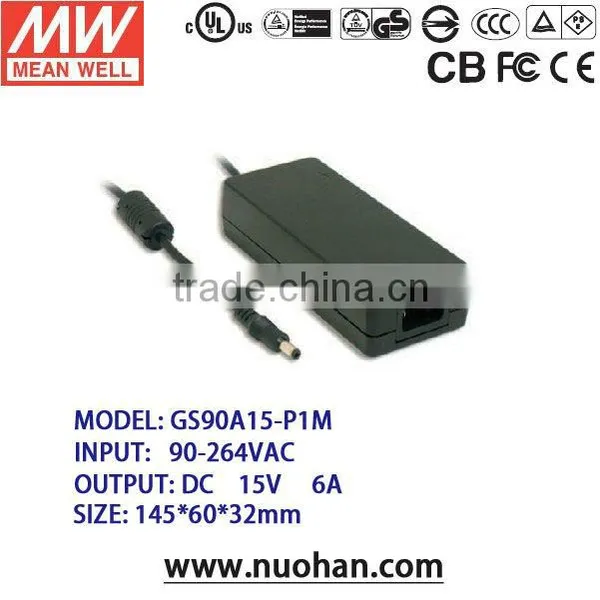

Meanwell 90W AC-DC Single Output Desktop ac to dc Switching Power Supply/15v 6a Switching Power Supply

Name: Meanwell 90W AC-DC Single Output Desktop ac to dc Switching Power Supply/15v 6a Switching Power Supply
Brand: Meanwell
SKU: 117409247
Availability: InStock

Meanwell 90W AC-DC Single Output Desktop ac to dc Switching Power Supply/15v 6a Switching Power Supply thumbnail-1

Meanwell 90W AC-DC Single Output Desktop ac to dc Switching Power Supply/15v 6a Switching Power Supply photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

GS90A15

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number GS90A15

Output Type DC

Connection Desktop

ORDER NO.		GS90A15-P1M
OUTPUT	SAFETY MODEL NO.	GS90A15
	DC VOLTAGE Note.2	15V
	RATED CURRENT	6A
	CURRENT RANGE	0 ~ 6A
	RATED POWER	90W
	RIPPLE & NOISE (max.) Note.3	100mVp-p
	VOLTAGE TOLERANCE Note.4	±5.0%
	LINE REGULATION Note.5	±1.0%
	LOAD REGULATION Note.6	±5.0%
	SETUP, RISE TIME Note.8	1000ms, 20ms / 230VAC 1000ms, 20ms / 115VAC at full load
	HOLD UP TIME (Typ.)	20ms / 230VAC 20ms / 115VAC at full load
INPUT	VOLTAGE RANGE Note.9	90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.91 / 230VAC PF>0.95 / 115VAC at full load
	EFFICIENCY (Typ.)	89%
	AC CURRENT(Typ.)	2A / 115VAC 1A / 230VAC
	INRUSH CURRENT (max.)	70A / 230VAC
	LEAKAGE CURRENT(max.)	1mA / 240VAC
PROTECTION	OVERLOAD	110 ~ 150%rated output power
	OVERLOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	105 ~ 135%rated output voltage
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	RTH30 > 100°C
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recov er

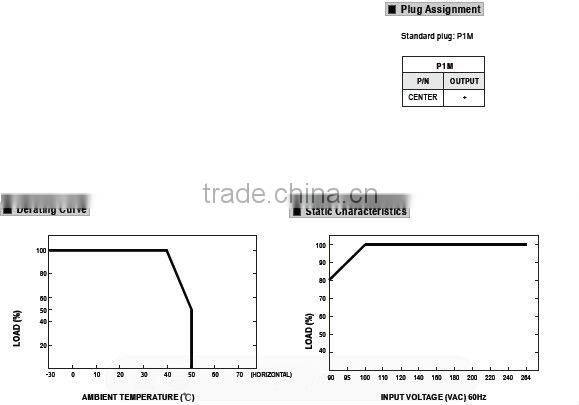

ENVIRONMENT	WORKING TEMP.	-30 ~ +50°C(Refer to "Derating Curve")
	WORKING HUMIDITY	20%~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC (Note. 7)	SAFETY STANDARDS	UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, J60950-1(except for 48V) approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms /500VDC/25°C/70% RH
	EMC EMISSION	Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CNS13438 class B, GB9254 class B, GB17625.1
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
OTHERS	MTBF	348.7K hrs min. MIL-HDBK-217F(25°C)
	DIMENSION	1456032mm (LWH)
	PACKING	0.45Kg; 30pcs/14.05Kg/1CUFT
CONNECTOR	PLUG	Standard type P1M: 2.5ψ* 5.5ψ* 11mm, tuning fork type, center positive for stock ; Other type available by customer requested
CONNECTOR	CABLE	See page2; Other type available by customer requested
NOTE	1.All parameters are specified at 230VAC input, rated load, 25°C 70% RH ambient. 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load. 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 4.Tolerance: includes set up tolerance, line regulation, load regulation. 5.Line regulation is measured from low line to high line at rated load. 6. Load regulation is measured from 10% to 100% rated load. 7.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. 8. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 9. Derating may be needed under low input voltages. Please check the derating curve for more details.
