Home > Electrical & Electronics > Telecommunication & Broadcasting > Set Top Box > DVB-C Economical HD Set-top Box With Highest Quality

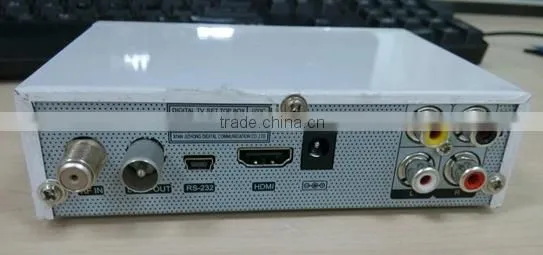

DVB-C Economical HD Set-top Box With Highest Quality

Name: DVB-C Economical HD Set-top Box With Highest Quality
Brand: Jizhong
SKU: 117401135

DVB-C Economical HD Set-top Box With Highest Quality thumbnail-1

DVB-C Economical HD Set-top Box With Highest Quality photo-1

US$ 14 - 16 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Shaanxi, China

Brand Name:

Jizhong

Model Number:

DCR-660M

Contact Supplier Request Quote Chat Now

Shaanxi Jizhong Electronics Scien-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shaanxi, China

Brand Name Jizhong

Model Number DCR-660M

Main Features:

* It adopts CC6000 chip (Montage Technology Company)

* Fully compliant with DVB-C/MPEG-2/H. 264/AVS standards

* Multiple star QAM modulation methods supported: 16 QAM and 32 QAM and 64 QAM and 256 QAM

* Supports various conditional access systems such as: ABV, Irdeto, Sumavision, Conax, DTV CA, etc.

* Supports standard EPG for weekly program information and reservation management and EPG AD business

* Supports PVR appointments and real-time recording

* Cost-effective implementation of SD to HD smooth complete revolution

* Supports upgrades of serial ports, OTA manual and automatic mode. software updates also available online.

Technical Parameters

Tuner		Front panel
Input Frequency	47~862MHZ	LED Display	power/clock LED+ 4 digital tube (optional)
Channel Demodulation		Button	Standby
Standard	DVB-C EN300 429	Rear Panel
Demodulation	16QAM, 32QAM, 64QAM, 128QAM, 256QAM	RF Input	Imperial F type female head
Symbol Rate	3.6~6.952MS/s	RF Output	IEC type male head
Video Decoding		AV Output	3 RCA interfaces
Standard	MPEG-2MP @ ML/AVS/H.264 MP&HP @ L4.1	Digital Audio	1 RCA interface
Aspect Ratio	4:3, 16:9	HDMI Output	HDMI 1.3b (HDCP supported)
Resolution	1920×1080 (max)	USB Interface	USB2.0 x1
Audio Decoding		Date Interface	Mini USB interface (RS232 communication)
Audio Decoding	MPEG-1(ayer1&2)/MPEG2/4-AAC/Dolby Digital Plus	Power Supply Parameters
Audio Mode	left channel, right channel and stereo	Input Voltage	DC: 5V/2A
CPU Processor and Memory		Consumption	10W (max)
CPU Processing	350MHz	Dimension: 135×102×36.5mm
FLASH Memory	16MB
RAM Memory	128MB

Company Profile

Looking for an optical manufacturer you can really trust? Look no further! We are THE market leader in optical

devices with almost 95% of the Chinese market. We have been making the highest quality digital products since

1999 supported by a team of world-class researchers.

Our main product categories are digital front-end hardware, digital TV set-top boxes, and digital TV operation support software systems. These include MPEG-2 single-channel and multi-channel compression code, TS stream receivers, transport stream re-multiplexers, data scramblers, QAM modulators, QPSK modulators.

We are also the experts in manufacturing optical transmitting platforms including two-way optical receivers, two-way trunk amplifiers, and other digital products.

Excellence in product quality is only half the story. We know you also want a supplier you can rely on for superior after-sales service. With multiple, dedicated technical support centers and sales networks, you can be sure we will “go the

extra mile” for you.
