Home > Electrical & Electronics > Telecommunication & Broadcasting > Set Top Box > Economical SD DVB-C Digital Set-top Box With High Quality

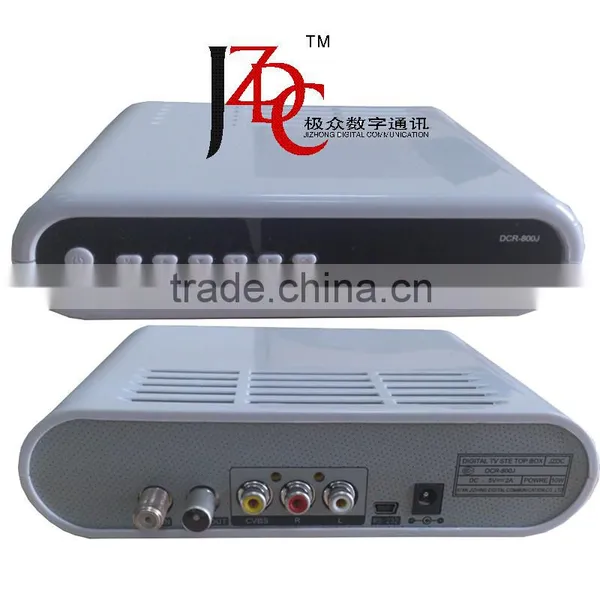

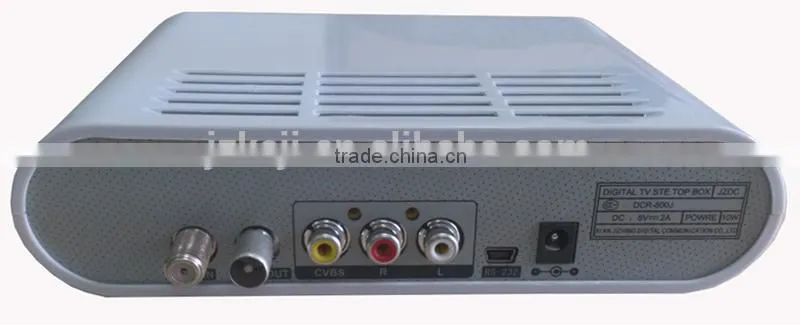

Economical SD DVB-C Digital Set-top Box With High Quality

Name: Economical SD DVB-C Digital Set-top Box With High Quality
Brand: Jizhong
SKU: 117401199

Economical SD DVB-C Digital Set-top Box With High Quality thumbnail-1

Economical SD DVB-C Digital Set-top Box With High Quality photo-1

US$ 13 - 15 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Shaanxi, China

Brand Name:

Jizhong

Model Number:

DCR-800J

Contact Supplier Request Quote Chat Now

Shaanxi Jizhong Electronics Scien-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shaanxi, China

Brand Name Jizhong

Model Number DCR-800J

Main Features:

* It adopts HM1521 chip (Montage Technology & Motorola Company)

* Fully compliant with DVB-C/MPEG-2 standards

* Multiple star QAM modulation methods supported: 16 QAM, 32 QAM, 64 QAM and 256 QAM

* Supports various conditional access systems, such as: ABV, Irdeto, Sumavision, DTV CA, etc.

* Supports standard EPG for weekly program information and reservation management as well as AD

business

* PAL/NTSC system adaptive and channel management capabilities

* Recovers easily from unexpected power outages with a program memory function and automatic

volume and channel set-up

* Supports upgrades of serial ports, OTA manual and automatic mode. software updates also available

online.

Technical Parameters:

Tuner		FLASH Memory	2~16MB (optional)
Input Frequency	47~862MHZ	RAM Memory	8~64MB (optional)
Channel Demodulation		Front Panel
Standard	DVB-C EN300 429	LED Display	power/clock LED+ 4 digital tube (optional)
Demodulation	16QAM, 32QAM, 64QAM, 128QAM, 256QAM	Button	standby/Ment/OK/CH±/Vol± 7 buttons design
Symbol Rate	3.6~6.952MS/s	Rear Panel
Video Decoding		RF Input	imperial F type female head
Standard	ISO/IEC13818-2, MPEG-2MP@ML	RF Output	IEC type male head
Aspect Ratio	4:3, 16:9	AV Output	3 RCA interfaces
Resolution	720×576 (PAL), 720×480 (NTSC)	Date Interface	mini USB interface (RS232 communication)
Audio Decoding		Power Supply Parameters
Audio Decoding	MPEG-1 (ayer1&2) MPEG-2	Input Voltage	DC 5V/1.5A
Audio Mode	left channel, right channel and stereo	Consumption	7.5W (MAX)
CPU Processor and Memory		Dimension	135×102×36.5mm
CPU Processing	330MHz	Dimension	135×102×36.5mm

Company Profile

Looking for an optical manufacturer you can really trust? Look no further! We are THE market leader

in optical devices with almost 95% of the Chinese market. We have been making the highest quality digital

products since 1999 supported by a team of world-class researchers.

Our main product categories are digital front-end hardware, digital TV set-top boxes, and digital TV operation support software systems. These include MPEG-2 single-channel and multi-channel compression code, TS stream receivers, transport stream re-multiplexers, data scramblers, QAM modulators, QPSK modulators.

We are also the experts in manufacturing optical transmitting platforms including two-way optical receivers, two-way trunk amplifiers, and other digital products.

Excellence in product quality is only half the story. We know you also want a supplier you can rely on

for superior after-sales service. With multiple, dedicated technical support centers and sales networks, you can be sure we will

“go the extra mile” for you.
