RG6 coaxial cable CU

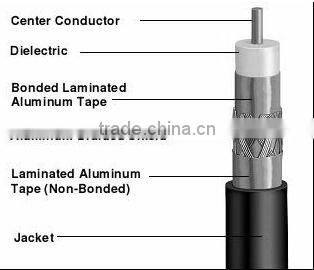

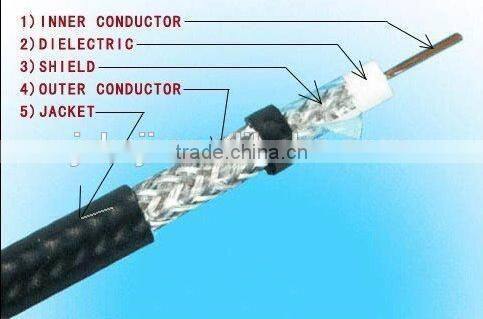

Specifications:
1. inner conductor: 1.02±0.02mm BC/CCA/CCS (18%-30%)
2. dielectric: 4.57±0.20mm Foam PE
3. first shield: 5.20±0.20mm Non-bonded Al Foil, Bonded Al Foil, Double Non-bonded Al Foil, Double bonded Al Foil
4. second shield: 0.1-0.16mm Al braiding(60%-95%)(32, 48, 64, 72, 90, 96, 120, 128, 144)
Technical Parameters:
1. 75 ohm video signal transmission
2. capacitance: 54 pF/m
3. velocity of propagation: 85%
4. return loss: >20db (5-3000MHz)
5. operating temperature of -40 to +80 degree C allows use in a wide range of applications
6. speaker test: 40000VAC
Applications:
1. CATV-community antenna TV
2. CCTV-closed-circuit TV
3. DBS-direct broadcasting satellite
4. use for low-power video and RF signal connections
5. high quality, low attenuation
Certificates:
1. Great Quality
2. ROHS, CE, FCC Certificate
3. Accept OBM, OEM, ODM
4. Professional Security Cable Manufacture fot CATV
Look forward to having a cooperation with you in the future.
