pv Solar System Generator, Solar Energy Generating Systems
US$ 4,900 - 6,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
OX-SP085A
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Home Solar Electricity Generation/energy GeneratorUS$ 4,900 - 6,000MOQ: 1 Piece -
Solar Water Pumping System for Irrigation With 200w Solar PanelUS$ 1,660 - 4,365MOQ: 5 Pieces
-
Mini 12v dc Irrigation Farm Solar Water Pump SystemUS$ 1,660 - 4,365MOQ: 5 Pieces
-
Small Deep Well Solar Water Pump for FarmsUS$ 1,830 - 5,650MOQ: 5 Pieces
-
3000w 12v Working Power Solar Water Fountain PumpUS$ 1,830 - 5,650MOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
OX-SP085A
Specification
Normal
Output Voltage (V)
110/220V
Load Power (W)
5000W
Solar Power (W)
2000W, multiple
Work Time (h)
4-24
Specifications
1,indepent power supply2,no fuel consumption,safe, reliable
3,no pollution,no noise,easy move
| Technical parameters | |||||||
| Solar panel | type | mono/poly | modle | TYM(P)200-24M | |||
| Open Circuit Voltage | 48.84 | Short Circuit Current | 7.47 | ||||
| Maximum Power Voltage | 35 | Maximum Power Current | 6.67 | ||||
| Quantity | 10pcs | Peak power | 36V/200W | ||||
| Controller | Rating Voltage | 48V | Over Voltage | Shut off | 66V±1% | ||
| MAX. Input Power | 1440W | Resume | 60V±1% | ||||
| Discharge Current | 50A | No-load Current | ≤10mA | ||||
| Charge Current | 50A | Over Discharge | Shut off | 44.4V±1% | |||
| Equalized Charge | 57.6V±1% | Resume | 52.8V±1% | ||||
| Resume Charge | 53.2V±1% | Max. Open-Circuit Voltage | 100V | ||||
| Floating charge | ((54.0V-55.2V)±1% | Voltage Drop | Input≤0.7V | ||||
| Temperature Compensation | -72mV/°C | Output≤0.3V | |||||
| Working Temperature | -25°C~+55°C | ||||||
| Height | ≤5500m(More than 2000m need reduce the power to use) | ||||||
| Lead-acid battery | Size(CM): | 48.4*17*24.2 | Nominal capacity | 150AH | |||
| approx weight | 43kg | quantity | 8pcs | ||||
| Working Temperature(°C) | -15°C~+50°C | ||||||
| Inverter | Output voltage | 220VAC±2%(Battery) | Input voltage | 48VDC | |||
| Input voltage | 145V~275V | Output Frequency | 50Hz±1% | ||||
| Input Frequency | 40~60Hz | Output Waveform | Sine wave | ||||
| Output power | 5000W | Transfer time | ≤2ms | ||||
| Surrounding | Noise | ≤50dB | |||||
| Temperature | 0°C~40°C | ||||||
| Humidity | 10%~90%(no condensate) | ||||||
| Protection | Short-circuit, battery high-voltage and low-voltage protections, battery reverse polarity | ||||||
| completely charged by solar power,suitable for the area where no electric. | |||||||
| Accessories | power box/cables/instruction | ||||||

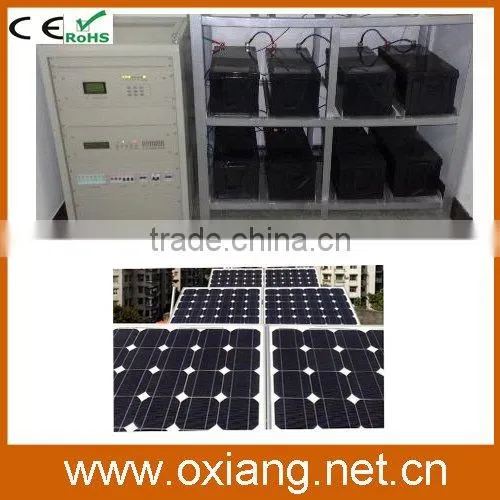

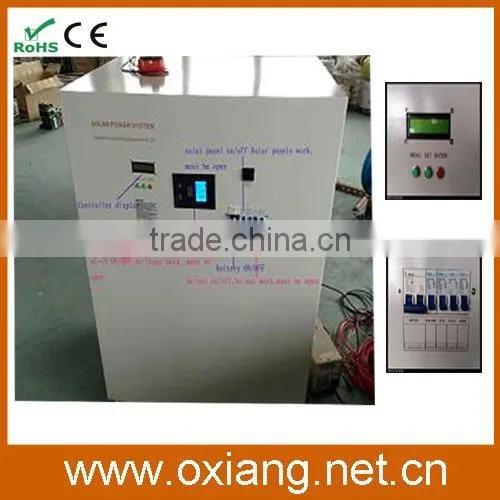

Product view:
Application:
| OX-SP085A Home/Office solar power generator system | |||||
| Load appliances | Specifications | Power Consumption | Amount | Daily working hour | Daily power consumption |
| Lighting | LED | 11W | 8 | 6 | 528W |
| Computer | LCD | 100W | 2 | 5 | 1000W |
| Printer | laser | 250W | 1 | 1 | 250W |
| FAX | Inkjet | 150 | 1 | 1 | 150W |
| Refrigerator | 150L | 100W | 1 | 24 | 800W |
| Washer | 300W | 1 | 0.5 | 150W | |
| Air conditioning | 1.5P | 1200W | 1 | 2 | 2400W |
| Satellite Antenna | 25 | 1 | 6 | 150W | |
| TV | 21" LCD | 50W | 1 | 6 | 300W |
| Pump | 400W | 1 | 1 | 400W | |
| Total | 2763W | 6128W | |||
|
System Components: Solar panels: 2000Wp; Battery: 1200AH/12V; Pure Sine Wave Power Inverter: 5000W ; Controller: 50A | |||||
