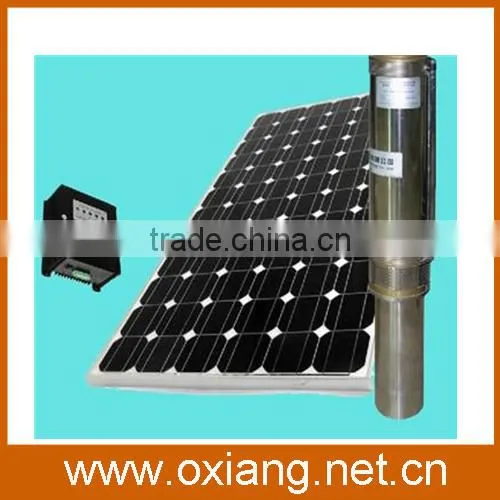

Help CenterSolar Water Pumping System for Irrigation With 200w Solar Panel
Related Products
-
Mini 12v dc Irrigation Farm Solar Water Pump SystemUS$ 1,660 - 4,365MOQ: 5 Pieces -
Small Deep Well Solar Water Pump for FarmsUS$ 1,830 - 5,650MOQ: 5 Pieces
-
3000w 12v Working Power Solar Water Fountain PumpUS$ 1,830 - 5,650MOQ: 5 Pieces
-
DC 12V Solar Energy Water PumpUS$ 1,680 - 4,350MOQ: 5 Pieces
-
Big High Power Solar Power Bank, Wholesale Solar Power BankUS$ 6 - 50MOQ: 5 Pieces
Specifications
2000W working power solar water pumpwith optonal 200w solar panels
MPPT technology Cast stainless steel components
What are Solar Water Pumps ?
Suntotal centrifugal pumps are high quality products designed for high flow drinking water supply, livestock
watering, pond management and irrigation applications. Suntotal centrifugal pumps provide large volumes
of water economically, cleanly and reliably.

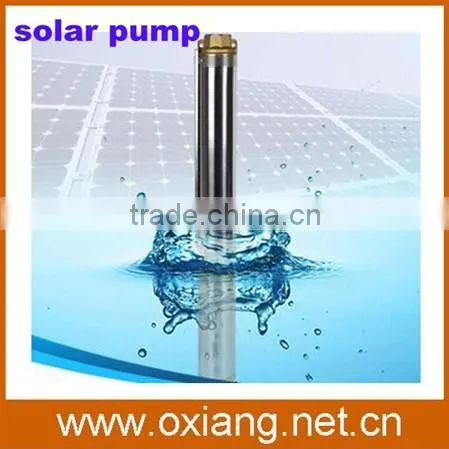

The range of Suntotal DC powered centrifugal submersible pumps have been designed specifically to pump
larger volumes of water efficiently using solar power. These highly efficient pumps can achieve flow rates of
23 m3/hour. pumping water from up to 200 m below the ground.

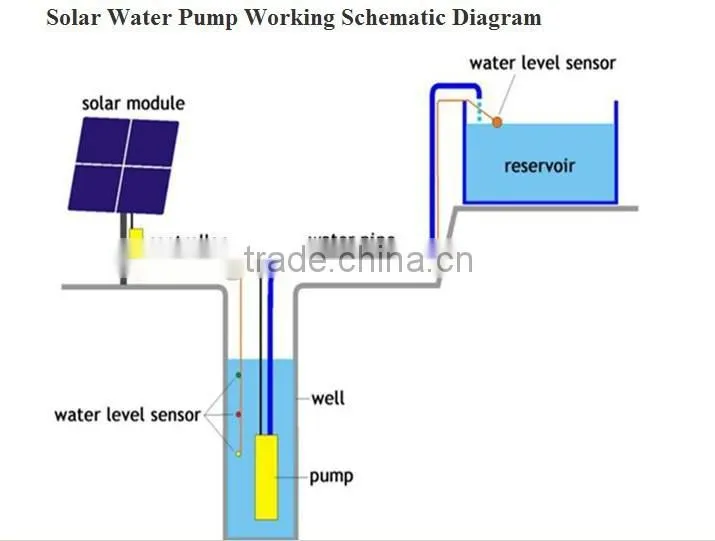

Each solar water pumping system consists of a pump, pump motor, controller and matched solar panels. This
modular concept keeps all electronics above ground providing, simple maintenance, easeof access and a
low cost of replacement.
Features
Adopt German Hi-tech
High quality non corrodible materials used throughout
Cast stainless steel components
Solar direct connect with battery connection options

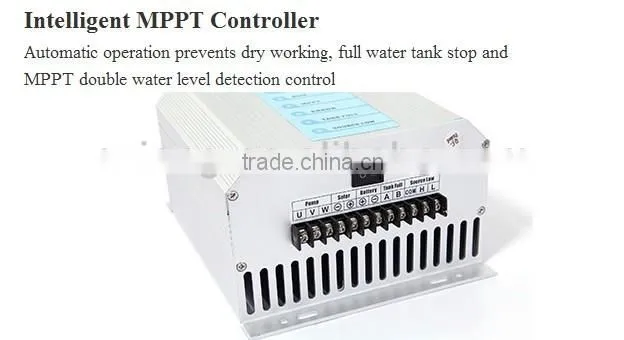

MPPT technology to maximize power use from PV modules

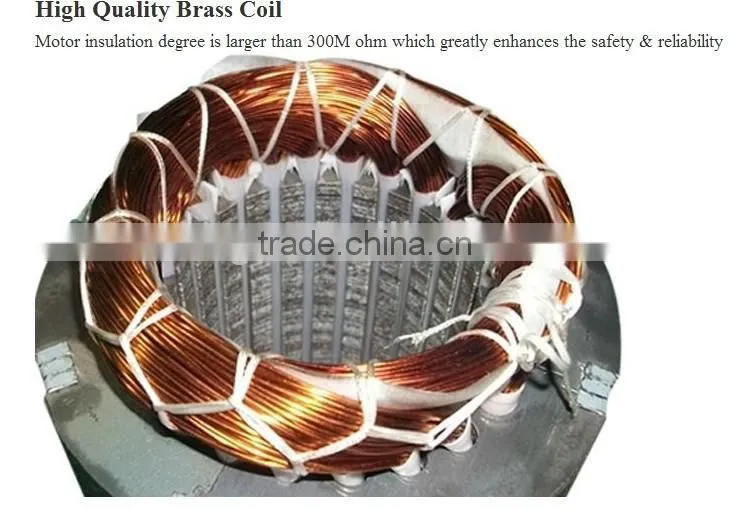

DC brushless motors, designed for solar, with over 90% efficiency, much longer lifetime than brush motors
Specification
| Model No. | Working power of pump (W) | Max Flow rate (m3/h) | Max head (m) | Net weight (Kg) | Voltage of Controller (V) |
head/flow rate/h/m3 | Diameter of outlet (mm) |
Diameter of pump (mm) /length |
||
| OX1-40 | 250W | 1m3 | 40m | 6.2 | 36V DC | 20m/1m3 | 30m/0.8m3 | 40m/0.7m3 | 20 | 75mm/370mm |
| OX4-42 | 800W | 4m3 | 42m | 11.5 | 110V DC | 32m/4m3 | 38m/3m3 | 42m/2m3 | 40 | 100mm/641mm |
| OX10-29 | 1600W | 10m3 | 29m | 11.6 | 280V DC | 20m/10m3 | 24m/8m3 | 29m/6m3 | 50 | 100mm/860mm |
| OX3-210 | 3000W | 3m3 | 210m | 16.2 | 300V DC | 130m/3m3 | 180m/2m3 | 210m/1m3 | 30 | 100mm/1358mm |
Other similar product

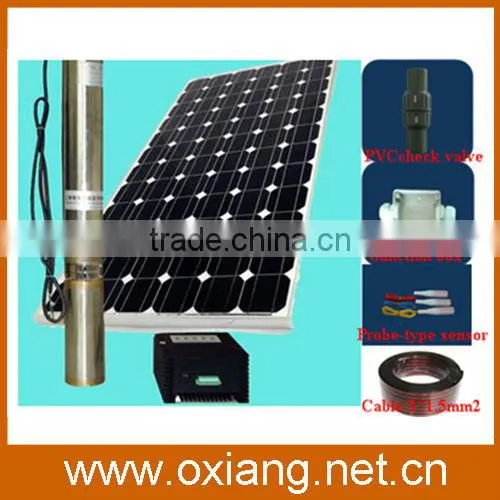

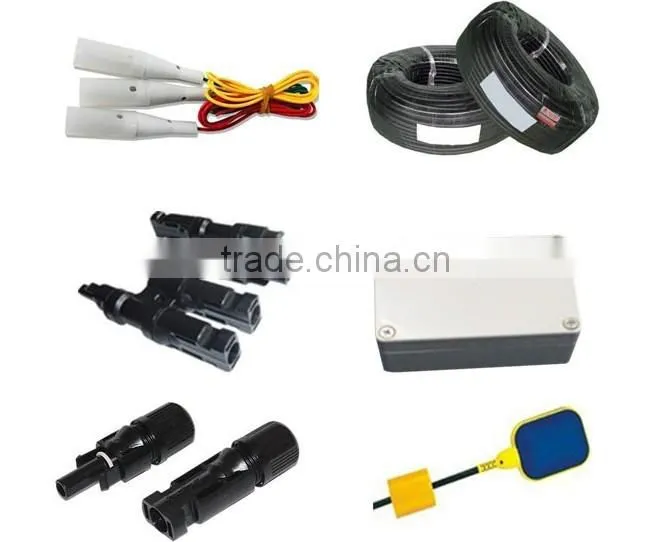

Optional Acessories
water level sensors,pure copper cable,MC4 for easy panel connection,
underwater cable connector,float switch
About us:
Ouxiang International Limited is a Chinese professional solar products manufacturer. Our main focus on solar controller, solar inverter, solar generator system, etc. Since its establishment in 1998, has been the most sincere service and responsibility to deal with each of our agents and end customers. As an "ISO 9001 standards, CE, ROHS, 3C-certified manufacturer, we understand that there are no shortcuts to produce good quality products. Only doing what they do every step of the testing process, and in order to make consumers be assured that every one products. Ouxiang mind of every member of this idea, continuous effort to continuously design, develop new products, the company has become stronger and more competitive.
