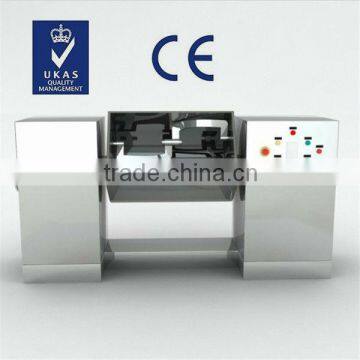

Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > WSH Series Double Paddle Tank Blender
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Paddle
Application:
Viscous Fluid
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Mixer Type
Paddle
Application
Viscous Fluid
Place of Origin
Jiangsu, China
Brand Name
Hongda
Model Number
WSH-100~WSH-600
Certification
ISO, CE, GMP
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. S type paddle tank blender2. mixing powdery or paste material
3. CE and ISO approved
4. discharge automatically
Main Application:
The mixer tank is horizontal double paddle tank type mixer which is widely used in pharmaceutical,chemical and foodstuff industries for mixing powdery or paste material especially for big viscosity and high homogeneous material.
Working Principle:
The machine is to let the stype paddle make opposite movement to impulse the material and mix by the active and passive shaft.The machine is made of stainless steel.You can set the mixing time and the machine will stop automatically.It is discharging by electromotion which will ease the working intensity of workers.The machine wil reach the high homogeneous mixing.
Technical Parameters:
| model | WSH-100 | WSH-200 | WSH-400 | WSH-500 | WSH-600 |
| capacity(L) | 50-70 | 100-140 | 200-280 | 250-350 | 300-420 |
| stirring motor(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| discharging motor(kw) | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 |
| active shaft rotary speed(r/min) | 15 | 12 | 12 | 12 | 12 |
| passive shaft rotary speed(r/min) | 21 | 18 | 18 | 18 | 18 |
| overall dimension(mm) | 1750×560×1100 | 2060×660×1250 | 2320×760×1500 | 2500×760×1500 | 2620×780×1620 |
| weight(kg) | 800 | 1000 | 1200 | 1300 | 1600 |
