Specifications

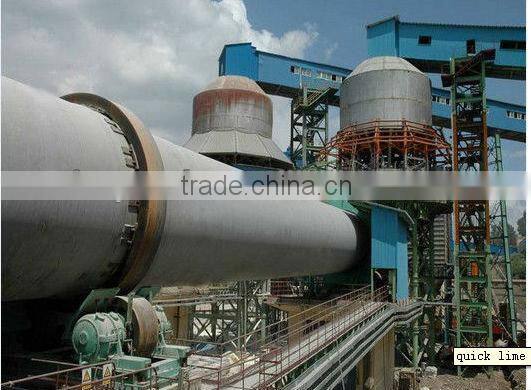

High Quality lime Rotary Kiln1 High quality
2 Strict manufacturing process
3 High effective
4 CE&ISO
Lime Rotary Lime Rotary Kiln Technical Features
1. With advanced structure, the low pressure loss of the vertical preheater can speed up the preheating process, the decomposition rate in the kiln of the preheated limestone can be 20-25%, and can use directly the 10-15mm fine grade limestone.
2.Both ends of rotary kiln is sealed by combination scale, which ensures the index of air leakage less than 10%. In order to lessen the radiation loss, it adopts compound refractory materials
3.Round or square vertical cooler with filling type and ventilated area, which make the lime temperature 800 degree celsius + ambient temperature. It is easy to transport, store, and can be preheated the secondary kiln air to above 700 degree celsius , which reduce the moving parts and special materials
Type |
Specifications (m) |
Capacity (t/h) |
Rotation Speed (r/min) |
Motor Power (kw) |
Weight (t) |
Remarks |
Straight Rotary Kiln |
Φ1.6×39 |
72 |
48.75 |
30 |
66 |
|
Φ1.9×39 |
84 |
78.19 |
37 |
85.9 |
|
|
Φ2.2×55 |
120 |
93.93 |
40 |
197.2 |
|
|
Φ2.5×40 |
204 |
134.9 |
40 |
170.5 |
|
|
Φ2.5×50 |
122.8 |
30 |
173 |
|
||
Φ2.5×63 |
108 |
134.9 |
40 |
170.5 |
|
|
Φ2.5×45 |
180 |
69.71 |
45 |
148 |
|
|
Φ3.0×48 |
360 |
100.4 |
75 |
170.561 |
Kiln with precalciner |
|
Φ3.2×50 |
1000 |
28 |
160 |
|
|
|
Φ3.2×52 |
1000 |
28 |
160 |
Kiln with precalciner |
||
Φ3.6×70 |
492 |
79.22 |
160 |
Wet Kiln |
||
Φ4.0×50 |
960 |
63.88 |
90 |
Kiln with precalciner |
||
|
Φ4.0×60 |
2500 |
34.601 |
315 |
Kiln with precalciner |
