♥ The introduction:
1. Sawdust briquette machine takes wood, rice husk, peanut shell, plant stalk, and other woodiness carbon containing materials as feeding materials (no any additives) to make stick shape biomass sawdust briquettes.
2. This wood briquette machine or sawdust briquette machine is the extruding type machine and it needs high temperature to extrude the briquettes out. And there are three heating rings providing the high temperature.

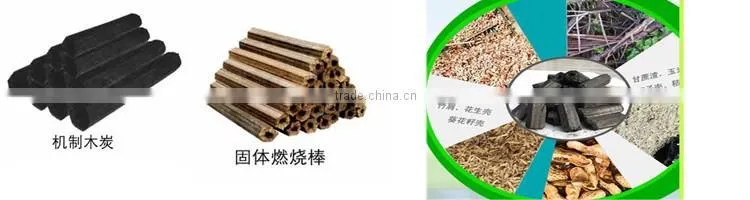

3. The outlet briquettes has the features of high density, small volume, good flammability, which can take place of fuel wood and coal.
4. The common diameter of sawdust briquettes is 50-80mm, and the shape can be square, rectangular, round with a hole in the center.
♥ The materials requirements:
1. The raw materials of sawdust briquette machine can be sawdust, wood, wood branchs, leaves, coconut shell, peanut shell, bagasse, rice husk, corn stalk, grain stems and other agriculture wastes.
2. The inlet size of raw materials should be less than 5mm. If the raw materials are bigger size, they must be crushed firstly.
3. The inlet moisture of raw materials must be less than 12%, otherwise, the outlet briquettes are easy broken and have crevice. So before briquetting, the wet materials should be dried.
♥ The Parameters:
1. We have improved the parts quality of our sawdust briquette machines, which are durable and long life using.
2. Each mold of sawdust briquette machine is made in our factory to make sure the accuracy of our machines.
3. The capacity of sawdust briquette machine is lower, just about 200-250kg/h. And if you need big capacity, you can use two or several sets of machines, and we can design it for automatic feeding and working.
Model |
Power |
Inlet size |
Capacity |
Outlet diameter |
Dimension |
ZBJ-50 |
15 kw |
≤ 5mm |
180-220 kg/h |
50 mm |
1700x660x1500mm |
ZBJ-80 |
18.5 kw |
≤ 5mm |
280-350 kg/h |
70mm or 80 mm |
1700x800x1300mm |
ZBJ-N |
22 kw |
≤ 5mm |
350-400 kg/h |
50-80mm |
1800x700x1500mm |
Henan Yuxinsenda Heavy industry Machinery Co.,Ltd. is an international enterprise which expert on manufacturer, R&D and sales of stone crusher, power making machine,tile making machine,brick making machine, ore beneficiation machines and other machines. We have achievedCE& ISO9001:2008 Quality Management Certificate and obtained import and export rights of our foundation. Our products have been exported to more than 60 countries, such as Sigapore, Canada, Vietnam, north Korea, Middle east, afric, etc. And they earned a good reputation among our customers.

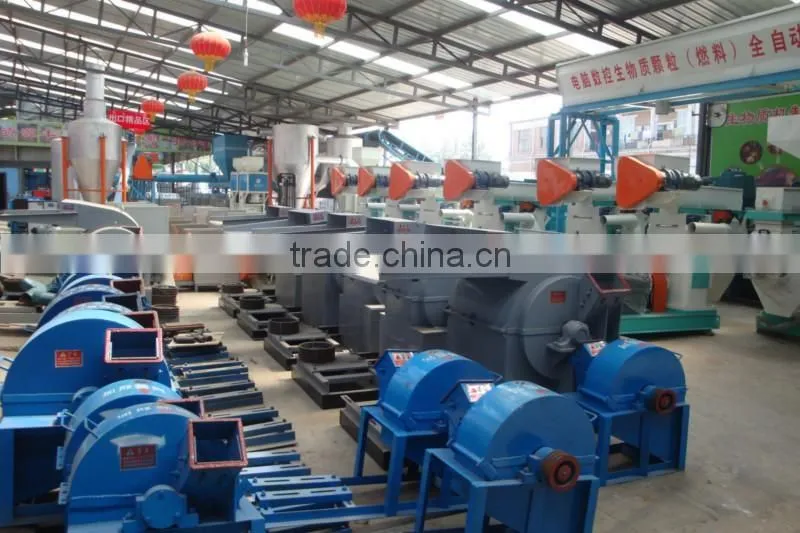

Work shop:
1. Pre-sale support
We can enable them to get rich and generous returns on their investments:
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients.
2.Services during the sale
We respect clients and always devote ourselves to improving the total value of clients:
1.Pre-check and accept products ahead of delivery;
clients to draft solving plans.
3.After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
4.Technological support
Our company insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
Our company is provided with independent research and development system, our high reputed engineers and technicians can provide users with overall technical support.
