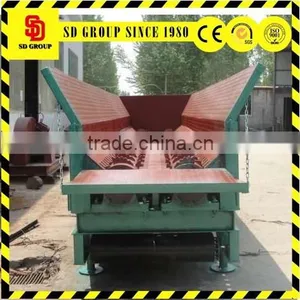

Hot sale wood log debarker for sale
Introduction:
Wood debarker is belong to the one series products of wood processing machinery. It is mainly composed of feeding mechanism, discharging mechanism, cutters, transmission system and underframe.
Specification:
Model |
2SD-6m |
2SD-9m |
2SD-12m |
Wood diameter(mm) |
20-500/1"-20" |
20-500/1"-20" |
20-500/1"-20" |
Peeling rate |
95% |
95% |
95% |
Wood max curvature |
8% |
8% |
8% |
Capacity(t/h) |
7-15 |
15-25 |
25-30 |
Power(KW) |
7.5*2 |
11*2 |
15*2 |
Size(mm) |
6300*1310*1550 |
9000*1500*1700 |
12600*1500*1700 |
Weight(t) |
4 |
5 |
8.5 |
Working principle:
Wood debarker is using special force to let the wood doing circle movement in the hopper tank plate,
and also around its own axis to do turning motion segment and irregular beating. The force is caused by the rotor which is with ladder type peel teeth. So that wood and teeth, wood and wood, wood and hopper tank,pectin friction, strike, extrude and peel off ceaselessly, Lead to bark and tree trunks are broken down and stripped fast, So as to achieve the effect of stripping efficiency.
Feature and advantage:
1. high work efficiency
Adopt opened groove hopper, which makes one end for feeding, and the other end for discharging, which greatly improves work efficiency.
2. automatic production
It separates skin exit from wood exit, realizing continuous work, from the feeding, to peeling, to discharging the wood, to feeding again, to peeling again, to discharging the wood again, the whole process is continuous, accomplishing operation flow, automatic production.
3. available for kinds of wood
To different wood species, peeling effect can be adjusted. All can be peeled regardless of the length, bending, spiral, and dry and wet.
4. saving manpower
Stand-alone operation can peel 35 to 50 tons logs, greatly saving the manpower.
It with lower consumption, low failure rate and little maintenance workload.
Main application:
Wood Debarker is suitable for large ,medium and small papermills , pump mill ,wood processing plant ,wood factory ,timber yard ,forestry factory ,furniture factory and artificial board factory (such as plywood plant ,medium density fiberboard factory etc.)
Introduction:
Henan Yuxinsenda Heavy industry Machinery Co.,Ltd. is an international enterprise which expert on manufacturer, R&D and sales of stone crusher, power making machine,tile making machine,brick making machine, ore beneficiation machines and other machines. We have achievedCE& ISO9001:2008 Quality Management Certificate and obtained import and export rights of our foundation. Our products have been exported to more than 60 countries, such as Sigapore, Canada, Vietnam, north Korea, Middle east, afric, etc. And they earned a good reputation among our customers.
Workshop:
Customers:
The products should be processed to be rustproof delivery. After package, the goods are suitable for land and sea transportation.
1. Are you a factory?
Yes, we are a professional manufacture to supply you kinds of machinery. Such as:stone crusher,tile making machine, brick making machine, food making machine, and so on.
2. How long of the warranty?
100% brand new when leaving the factory. The seller guarantee quality of the machines for a period of one year from the date of trial run finish, but not to exceed 13 months from date of Bill of Lading.
3. Do you have any engineers oversea available?
Once we make the order successfully, we will send our engineers to help you installation and debug if the customer need.
1. Pre-sale support
we can enable them to get rich and generous returns on their investments:
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients.
2.Services during the sale
We respect clients and always devote ourselves to improving the total value of clients:
1.Pre-check and accept products ahead of delivery;
clients to draft solving plans.
3.After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
4.Technological support
Our company insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
Our company is provided with independent research and development system, our high reputed engineers and technicians can provide users with overall technical support.
