Specifications
2013 Screw Sand Washing Machine For Sale1.Reasonable structure
2.Low cost
3.High capacity
4.High efficiency
Sand washing machines introduction

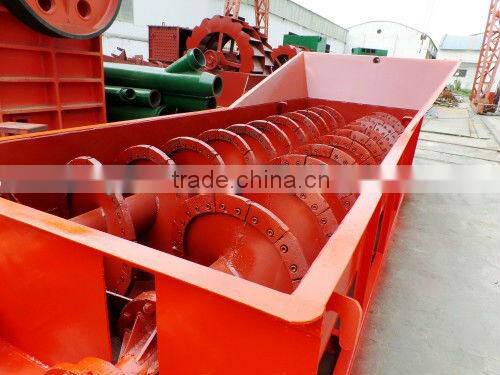

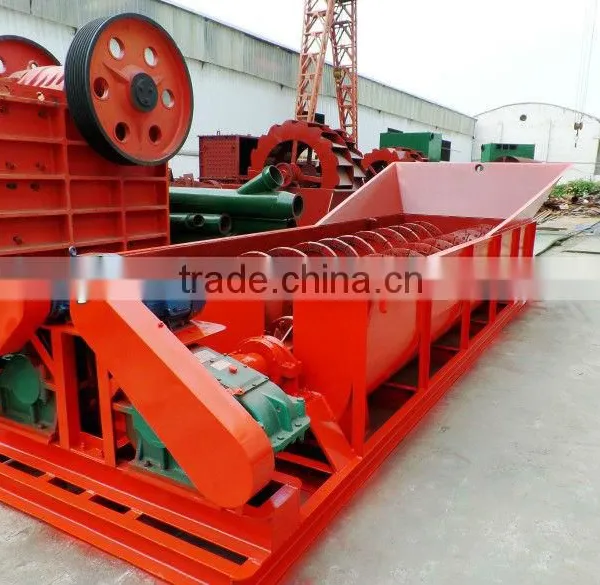

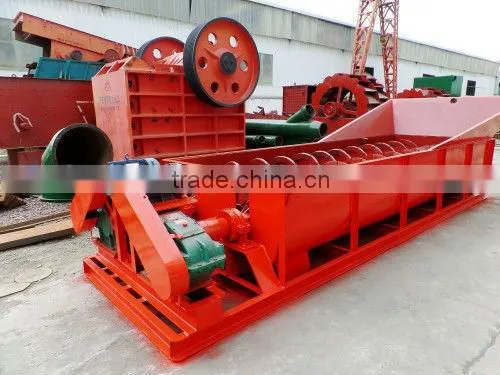

This series Screw sand washing machines is a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand making machine can improve the quality of the sand. XSD series sand-making equipment is used in building plant, quarry, concrete plant, dam building, casting-70 sand, glass factory’s quartz sand and refilling pressure sand.
Characteristics of sand washing machines
1. reasonable structure and high efficiency
2. little sand loss during washing
3. Long service life and stable operation
4. The perfect equipment in sand making production line
Technical Parameter of sand washing machines
Specification |
XSD2610 |
XSD2816 |
XSD3016 |
XS3500 |
|
Wheel bucket diameter(mm) |
2610 |
22816 |
3016 |
3500 |
|
Speed(r/min) |
1-2 |
1-2 |
1.179 |
0.8-1.2 |
|
Handling ability(t/h) |
20-50 |
30-60 |
50-120 |
120-200 |
|
Motor power(kw) |
5.5 |
11 |
15 |
15 |
|
The above dynamo is used the excitation speed regulation dynamo . | |||||
Total weight(kg) |
8000 |
12000 |
14000 |
9900 |
|
Overall dimension (L*W*H)(mm) |
3255*1982*2690 |
3540*3000*2880 |
3845*3000*3080 |
4420×2930×3800 |
|
Wear resistant layer |
65# manganese steel plate |
65# manganese steel plate |
65# manganese steel plate |
65# manganese steel plate |
|
Thickness of the iron flate |
6mm |
6mm |
8mm |
10mm |
|
All the thickness could used as the request of the customer. | |||||
Model of reducer |
ZQ350 |
ZQ400 |
ZQ400 |
ZQ500 |
|
