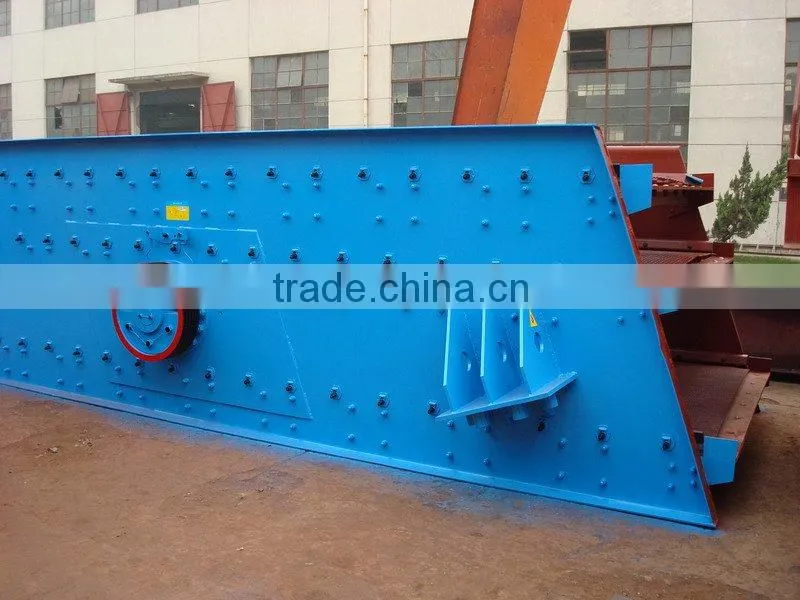

2013 Grain Vibrating Screener Circular Vibrating Screen

Specifications

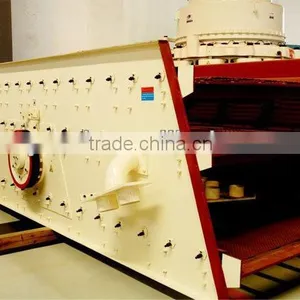

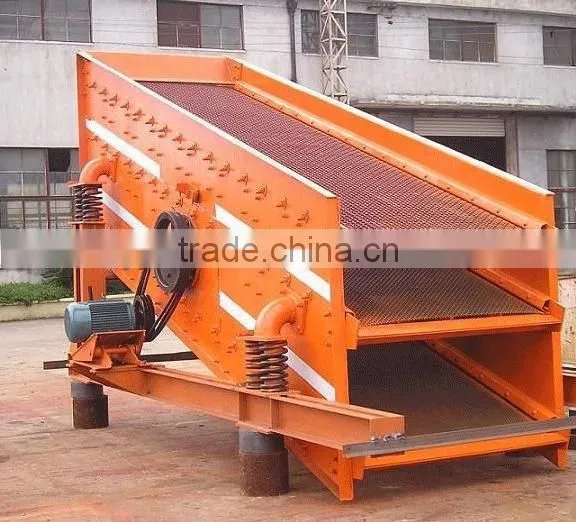

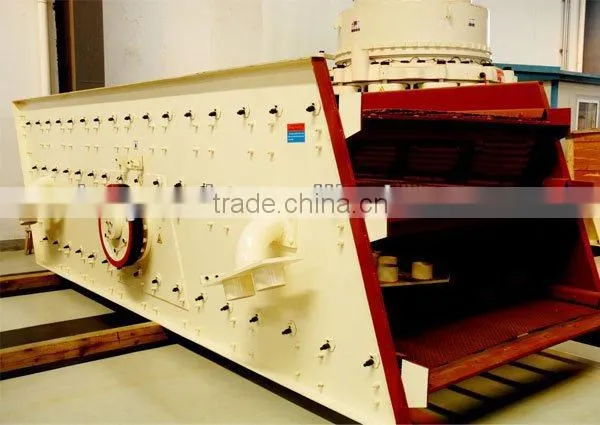

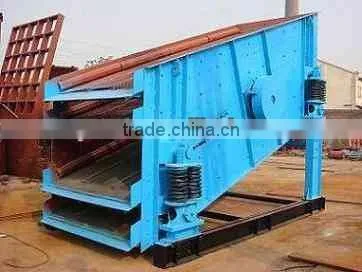

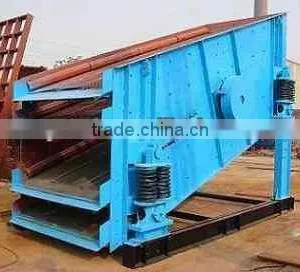

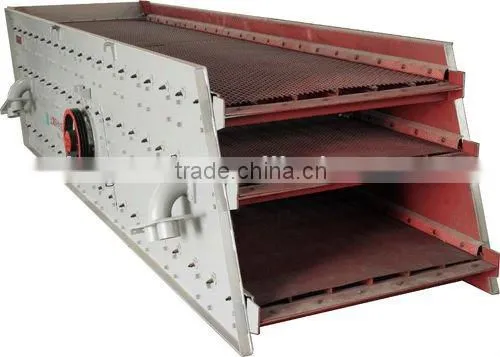

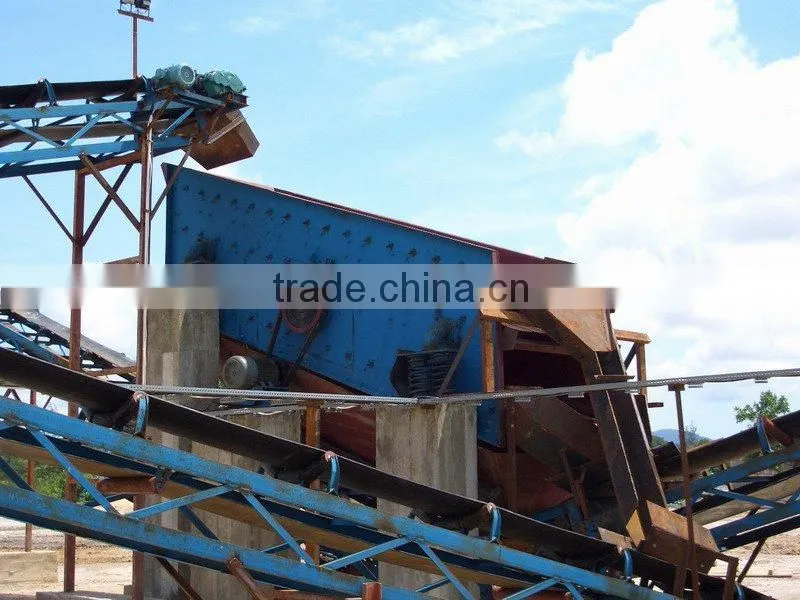

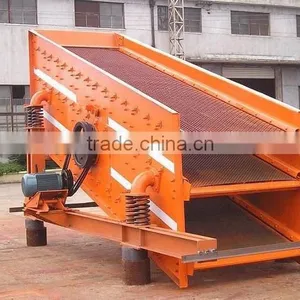

Grain Vibrating Screener Circular Vibrating Screen
1.structure, strong excitation power
2.High Efficiency

Grain Vibrating Screener Circular Vibrating Screen





Specification of Grain Vibrating Screener Circular Vibrating Screen







Brief Introduction of Grain Vibrating Screener Circular Vibrating Screen YZS Series circular vibrating screens used for separating the stuff, are unique and advanced products of our

company. They are mainly used in coal dressing, metallurgy, mine, power station, water conservancy project,

building industry, light industry and chemical industry etc. They are efficient screening machines for the classification

of bulk material such as coal, minerals, coke etc.





Working Features of Grain Vibrating Screener Circular VibratingScreen

1. circular vibrating screen uses eccentric block to produce strong exciting force.



2. The ore vibrating scree's crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.



3. circular vibrating screen adopts tire clutch with capability of flexible connection and stable operation.



4. circular vibrating screen adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise.





Principle of Grain Vibrating Screener Circular Vibrating Screen

When  circular vibrating screen on operation , first the materials will feed on  circular vibrating screen mesh , and the materials will separated uniformly on screen mesh plates . The rolling bearing of  circular vibrating screen will stressed by highly mostly shock-type loads . And more , the  circular vibrating screen bearing ,while rotating about their own axis ,going a way of circular ,elliptical or linear vibrating motion . This results in high radial accelerations which additionally stress the bearings , and especially the cages considerably. The operating speeds are usually in a very high condition . As a result, the bearing temperatures are up to 20 to 30 degrees Kelvin higher than in normal applications. In addition, considerable misalignments between the bearing locations and considerable shaft deflections have to be accommodated.









Specification of Grain Vibrating Screener Circular Vibrating Screen



Model	Screen Spec(mm)	Laters	Screen Mesh Size(mm)	Feed Size(mm)	Capacity(t/h)	Power(Kw)	Vibrating frequency(HZ)	Double Amplitude(mm)
2YZS1445	4500*1400	2	5-50	≤100	45-250	11	900	5-9
2YZS1548	4800*1500	2	5-50	≤100	50-250	15	870	5-9
3YZS1548	4800*1500	3	5-50	≤100	50-250	15	870	5-9
2YZS1848	4800*1800	2	5-50	≤100	50-250	18.5	870	5-9
3YZS1848	4800*4800	3	5-50	≤100	50-250	18.5	870	5-9
2YZS1860	6000*1800	2	5-50	≤100	50-128	18.5	870	5-9
3YZS1860	6000*1800	3	5-50	≤100	50-128	22	870	5-9
2YZS2160	6000*2100	2	5-50	≤100	60-300	22	730	5-9
3YZS2160	6000*2100	3	5-50	≤100	60-300	30	730	5-9
2YZS2460	6000*2400	2	5-100	≤100	100-460	37	730	5-9
