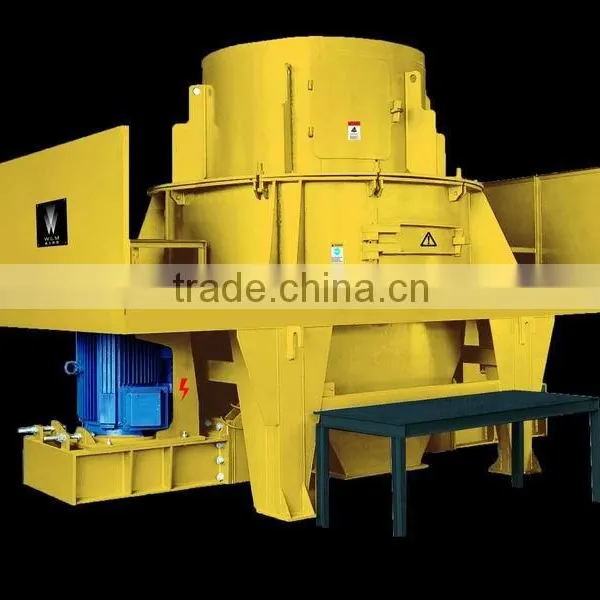

PCL Series Vertical Shaft Impact Crusher(sand Making Machine)

PCL Series Vertical Shaft Impact Crusher(sand Making Machine) thumbnail-1
PCL Series Vertical Shaft Impact Crusher(sand Making Machine) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Impact Crusher
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Yuxinsenda Heavy Industry Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Impact Crusher
Motor Type AC Motor
Power(W) 60-440(kw)
Capacity(t/h) 20-360(t/h)
Place of Origin China
Brand Name SD
Dimension(L*W*H) according to models
Weight 7.5-26.3(t)
Certification CE ISO9001
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.simple structure;low operating cost
2.High efficiency;low consumption
3.Factory
4.CE/ISO Certification

PCL Vertical shaft impact crusher from Henan



Product Description

 The brief introduction:

Sand Making Machine plays an important role in crushing minerals into pieces. PCL Vertical shaft Impact Crusher is widely used in all kinds of mineral, cement, corhart, carborundum grain, glass raw material, machine making construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, and so on materials with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.

Characteristics of Vertical Shaft Impact Crusher (Sand Making Machine):

1. Simple structure and low operating cost;

2. High crushing ratio with low consumption;

3. Function of fine crushing and crude grinding;

4. Slightly influenced by moisture content of material, and the max moisture content is about8%;

5. More suitable for crushing mid-hardness and high hardness materials;

6. Cubic shape of final products, high density of piling up and low iron pollution;

7. More wearable and easier maintenance;

8. Low working noise (lower than 75 decibel) and light dust pollution

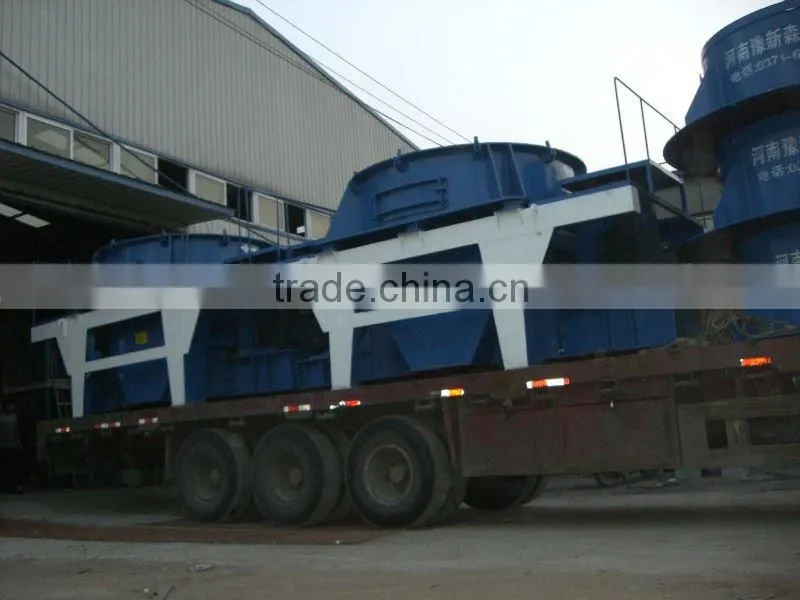

PCL series vertical shaft impact crusher(sand making machine)PCL series vertical shaft impact crusher(sand making machine)

Working principle of PCL Vertical shaft impact crusher from Henan   :

The materials fall into the impeller from the head of the machine and with the function of high-speed

centrifugal force, they strongly hit against and highly grind the other parts of the materials bypass flowing

around the impeller in an umbrella form. After mutual impaction and between the impeller and the

machine shell, the materials will move like a vortex and will be impacted, rubbed and pulverized many times.

Then they will come to the required fineness controlled by screening equipment,

PCL series vertical shaft impact crusher(sand making machine)PCL series vertical shaft impact crusher(sand making machine)



Specifications of  PCL Vertical shaft impact crusher from Henan :







Model

Impeller Speed(r/min)

Max Feed Size(mm)

Capacity(t/h)

Power(Kw)

Weight(t)

Dimension(mm)

PCL-600

2000-2470

30

20-35

60-90

7.5

2800*1500*2030

PCL-750

1500-2045

35

35-55

90-150

9.3

3300*1800*2440

PCL-900(A)

1200-1685

40

55-100

110-180

12.6

3750*2300*2090

PCL-900(B)

1100-1580

40

65-130

150-180

14.5

4480*2450*2096

PCL-1050

1000-1430

45

90-160

180-264

17

4480*2450*2906

PCL-1250

850-1300

45

160-230

264-370

22.5

4563*2650*3716

PCL-1350

800-1185

50

200-360

320-440

26.3

5340*2940*3650

 PCL series vertical shaft impact crusher(sand making machine)PCL series vertical shaft impact crusher(sand making machine)PCL series vertical shaft impact crusher(sand making machine)





Company Information







After-Sales Service



After-sale services:

Provide considerate services to minimize clients’ worries.

1) Assist clients to prepare for the first construction scheme;

2) Install and debug the equipment;

3) Take initiative to eliminate the troubles rapidly at site;





Welcome to visit our factory !Welcome to inquiry !







l We will pick you up at Zhengzhou XingZheng Airport .







l We will treat your accommodation and diet during you are here.
