Specifications
Manufacturing Machines PCL Vertical Shaft Impact Crusher1.Low running cost
2.High output
3.Factory

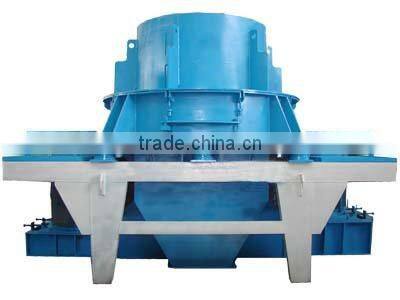

Manufacturing Machines PCL Vertical Shaft Impact Crusher
Brief introduction of Manufacturing Machines PCL Vertical Shaft Impact Crusher
PCL Vertical shaft impact crusher is of high power and low consumption. It is widely used in all kinds
of mineral, cement, corhart, bauxite, carborundum grain, glass raw material, machine made construction
sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite,
and very hard and anticorrosion materials. And Sand Making Machine is more productive than other kind
of crushers.
Characteristics of Manufacturing Machines PCL Vertical Shaft Impact Crusher
Simple structure and low operating cost;High efficiency and low consumption;Sand Making Machine has
the function of fine crush and crude grinding; Slightly influenced by the moisture content of material, and the
max moisture content is 8%;More suitable for crushing mid-hardness and high-hardness materials;Cubic shape of final products, high density of piling up and low iron pollution;More wearable
and easy maintenance;Low working noise and light dust pollution.
Working principle of Manufacturing Machines PCL Vertical Shaft Impact Crusher
The materials fall into the impeller from the head of the machine and with the function of high-speed centrifugal force, they strongly hit against and highly grind the other parts of the materials bypass flowing
around the impeller in an umbrella form. After mutual impaction and between the impeller and the machine shell,
the materials will move like a vortex and will be impacted, rubbed and pulverized many times. Then they will come
to the required fineness controlled by screening equipment
Specification of Manufacturing Machines PCL Vertical Shaft Impact Crusher
Model |
Impeller Speed(r/min) |
Max Feed Size(mm) |
Capacity(t/h) |
Power(Kw) |
Weight(t) |
Dimension(mm) |
PCL-600 |
2000-2470 |
30 |
20-35 |
60-90 |
7.5 |
2800*1500*2030 |
PCL-750 |
1500-2045 |
35 |
35-55 |
90-150 |
9.3 |
3300*1800*2440 |
PCL-900(A) |
1200-1685 |
40 |
55-100 |
110-180 |
12.6 |
3750*2300*2090 |
PCL-900(B) |
1100-1580 |
40 |
65-130 |
150-180 |
14.5 |
4480*2450*2096 |
PCL-1050 |
1000-1430 |
45 |
90-160 |
180-264 |
17 |
4480*2450*2906 |
PCL-1250 |
850-1300 |
45 |
160-230 |
264-370 |
22.5 |
4563*2650*3716 |
PCL-1350 |
800-1185 |
50 |
200-360 |
320-440 |
26.3 |
5340*2940*3650 |
Manufacturing Machines PCL Vertical Shaft Impact Crusher
