Specifications

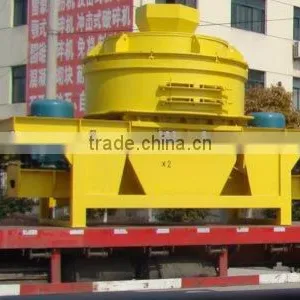

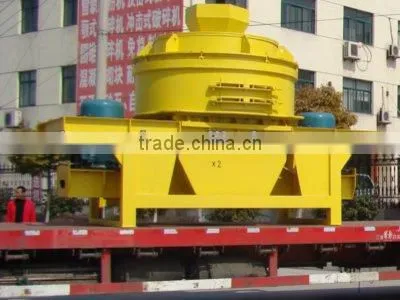

sand making machine have exported to many countries and have earned a good reputation among our costomerssand making machine/ vertical shaft impact crusher
Introduction :sand making machine ,also called snad making machinea and rubble shaping machine ,is a kind of crusher impacted by the material themselves .
Features:simple structure ,low consumption
high efficiency
it is slightly influenced by the humidity of material and the mas humidity is 8%
it is more suitable for crushing mid-hardness materials and high-hardness materials
the final product is cube
low noise
working principle:the material falls into the high-speed turning impellers from the top of machine and crushes with the materail distributed around the impeller under the effect of high speed centrifugal force.After the impact with each other ,the material is crushed between impeller and cavity and is discharged from the bottom.The material can be milled twice or more times in the whirlpool cavity ,the crushed materials will be excluded through the tottom airflow self-circulation in the whirpool cavity can eliminate the dust pollution well
| technical parameters | ||||||
| type | impeller speed (r/min) | max feed size(mm) | diposal capacity (t/h) capacity (t/h) | power (kw) | weight (t) | overall dimension (mm) |
| PCL-600 | 2000-2470 | 30 | 20-35 | 60-90 | 7.5 | 2800×1500×2030 |
| PCL-750 | 1500-2045 | 35 | 35-55 | 90-150 | 9.3 | 3300×1800×2440 |
| PCL-900(A) | 1200-1685 | 40 | 55-100 | 110-180 | 12.6 | 3750×2120×2660 |
| PCL-603(B) | 1100-1580 | 40 | 65-130 | 150-180 | 14.5 | 3750×2300×2090 |
| PCL-1050 | 1000-1430 | 45 | 90-160 | 180-264 | 17 | 4480×2450×2906 |
| PCL-1250 | 850-1300 | 45 | 160-230 | 364-370 | 22.5 | 4563×2650×3716 |
| PCL-1350 | 800-1185 | 50 | 200-360 | 320-440 | 26.3 | 5340×2940×3650 |
