Specifications
1 Large capacity2 Energy Saving
3 Satisfying Performance
4 Excellent Efficiency
Introduction :

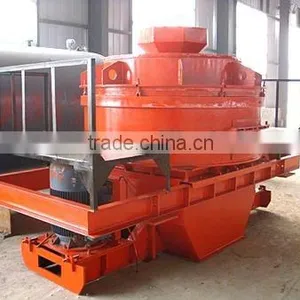

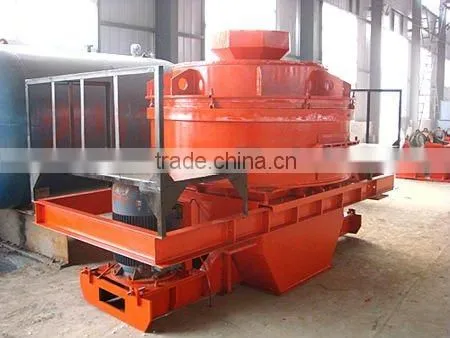

sand making machine ,also called snad making machinea and rubble shaping machine ,is a kind of crusher impacted by the material themselves . It Is applied in sand making industry and other building industries.
Working Principle:
The material falls into the high-speed turning impellers from the top of machine and crushes with the materail distributed around the impeller under the effect of high speed centrifugal force.After the impact with each other ,the material is crushed between impeller and cavity and is discharged from the bottom.The material can be milled twice or more times in the whirlpool cavity ,the crushed materials will be excluded through the tottom airflow self-circulation in the whirpool cavity can eliminate the dust pollution well
| Technical Parameters | ||||||
| type | impeller speed (r/min) | max feed size(mm) | diposal capacity (t/h) capacity (t/h) | power (kw) | weight (t) | overall dimension (mm) |
| PCL-600 | 2000-2470 | 30 | 20-35 | 60-90 | 7.5 | 2800×1500×2030 |
| PCL-750 | 1500-2045 | 35 | 35-55 | 90-150 | 9.3 | 3300×1800×2440 |
| PCL-900(A) | 1200-1685 | 40 | 55-100 | 110-180 | 12.6 | 3750×2120×2660 |
| PCL-603(B) | 1100-1580 | 40 | 65-130 | 150-180 | 14.5 | 3750×2300×2090 |
| PCL-1050 | 1000-1430 | 45 | 90-160 | 180-264 | 17 | 4480×2450×2906 |
| PCL-1250 | 850-1300 | 45 | 160-230 | 364-370 | 22.5 | 4563×2650×3716 |
| PCL-1350 | 800-1185 | 50 | 200-360 | 320-440 | 26.3 | 5340×2940×3650 |
Any quesions please feel free to contact us!
