Help Center2014 Best Price Limestone Sand Making Machine in China
Related Products
-
Vitical Shaft Sand Making Shape Machine for SaleUS$ 1,500 - 88,888MOQ: 1 Set -
PCL Sand Making Machine/vertical Shaft Impact Crusher From HenanUS$ 2,000 - 80,000MOQ: 1 Set
-
Color Tile Making Machine for Manufactureing Large Roof TileUS$ 8 - 88,888MOQ: 1 Set
-
Senda Rock Sand Making Machine for SaleUS$ 1,500 - 88,888MOQ: 1 Set
-
Senda Rock Sand Making Machine for SaleUS$ 1,500 - 88,888MOQ: 1 Set
Specifications
1.limestone Sand Making Machine2 Large capacity,low consumption
3 perfect grain shape
4 factory
5 ISO9001/CE
2014 Best price limestone sand making machine in China
1.Introduction of Sand Making Machine:
Sand Making Machine ,also called Vertical shaft impact crusher and rubble shaping machine ,is a kind of crusher impacted by the material themselves . It is applied in sand making industry and other building industries.
2. Working Principle Sand Making Machine:
The material falls into the high-speed turning impellers from the top of machine and crushes with the materail distributed around the impeller under the effect of high speed centrifugal force.After the impact with each other ,the material is crushed between impeller and cavity and is discharged from the bottom.The material can be milled twice or more times in the whirlpool cavity ,the crushed materials will be excluded through the tottom airflow self-circulation in the whirpool cavity can eliminate the dust pollution well
3. Specifications of Sand Making Machine:
Model |
B-VSI7611 |
B-VSI8518 |
B-VSI9526 |
B-VSI1140 |
||
Capacity |
Feed both |
120-180 |
200-260 |
300-380 |
450-520 |
|
Feed at center |
60-90 |
100-130 |
150-190 |
225-260 |
||
Max feed size |
Sofe material |
35 |
40 |
45 |
50 |
|
Hard material |
30 |
35 |
40 |
45 |
||
Rotation speed (r/min) |
1700-1890 |
1520-1690 |
1360-1510 |
1180-1310 |
||
Power(KW) |
110-150 |
180-220 |
264-320 |
400-440 |
||
Overall dimension |
3700*2150 |
4140*2280 |
4560*2447 |
5000*2700 |
||
Weight (t) |
7.8 |
10.3 |
16 |
25.6 |
||
Power supply |
380V, 50HZ |
|||||
Vibrating sensor |
detect range: 0.1-20mm/s continous and adjustable |
|||||
Lubrication |
power |
2*0.31KW |
||||
Safety assuance |
Double oil pumps assure enough oil supply; automatic switch off with no oil stream or hydraulic strength; lower the temperature with cool water in summer; raise the temperature with motor in winter. |
|||||
|
|
|
|
|
||
Overall demension L*W*H (mm) |
|
820*520 |
820*520 |
|
||
Power of oil tank heater |
2KW |
|||||
4.Features of sand making machine:
1deep cavity-type rotor design is optimized to increase material pass-through volume by 30%;
2when wear shield partial wear out,put upside down,material utilization improved,and service
life increase more than 48%;
3modular-design hammer,just to replace worn parts when wear out,it can reduce cost more
than 30%.Add vice hammer,which effectively prevent damage to stand plate after wear out;
4the core abrasion-resistant material is high degree wear-resistant and temperature-resistant
material which used in American important industries;
5diamond-shaped impact block,avoid stand plate damage after wear out;
6bearing uses Japanese,Swedish and American international brand;
7optimal shooting mouth and more fluid curve-shaped design reduce material flow resistance,
improve material pass-through capacity as well;
8dual-use bulk material plates,it is easy to achieve two feeding method conversion;
9special seal structure in the spindle end,ensure no oil leak even without oil seal;
10hydraulic openings device uses Japan imported parts,it is easy and quick to move upper lid,so the internal mechanical overhaul and replacement cost less labor effort;
11use high protection motor,which features high efficiency and low noise.The motor is in line
with International Electrotechnical Commission(IEC) standard,F-class insulation and IP54/55
protection level.

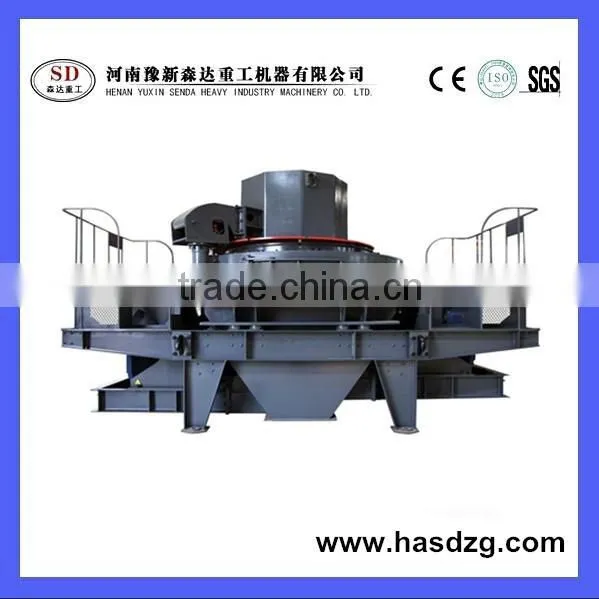

5.Main pctures of sand making machine:
CHOOSE US
1. WE ARE NOT DEALER, WE ARE MANUFACTURER.
1)Henan Senda Heavy Industry Machine Co., Ltd. is located in ZhengZhou City,HeNan Province of China,
which established in 2004, is an international heavy enterprise which expert on manufacturer,R&D and sales
of stone crushers,power making machine,ore beneficiation machines.
2)we have achieved ISO9001:2008 certificate and obtained import and export right at the beginning of our foundation. is the member of China heavy industry Machine Association,is the company which fixed on research
and development,production and sales.We have a team that has reach practical experience and innovative
ideas in research,development, and production.
3)Our products are selling to Russia,the Middle East,Southeast Asia,Africa,and other countries and
regions.
2. Our mission
1].Saving the purchasing cost of our customer;
2].Shorten customer's Business Cycle.
3].Help our customer's business establish their reliability.
3. Quality
We take "quality first and customers first" as our tenet.So we take following measures to ensure product best.
1]. Hire or cooperate with industry experts of the colleges and universities to build
2].Establish Technical&service team to solve any problems may occur at any time.
3].Found evaluation system for every suppliers,and evaluate them every quarter.
1.Pre-sale services:
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investment
(1) Select equipment model;
(2) Design and manufacture products according to clients’ special requirement;
(3) Train technical personnel for clients.
2.Services during the sale:
Respect clients; devote ourselves to improving the total value of clients.
(1)Pre-check and accept products ahead of delivery;
(2)help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients’ worries.
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site;
(4) Examine the equipment regularly;
(5)Take initiative to eliminate the troubles rapidly at site;
(6) Distribute the guarantee fittings door-to-door;
(7)provide perfect service;
(8)Provide technical exchanging;
(9)Provide maintenance for big items.
Welcome to visit our factory !Welcome to inquiry !
