Help CenterVSI Sand Making Machine With Low Cost Made in China
Related Products
-
2014 Hot Sale Promotion Rock Sand Making Machine for MineUS$ 1,000 - 8,000MOQ: 1 Set -
2014 ISO Certificated Sand Making MachineUS$ 2,000 - 88,888MOQ: 1 Set
-
2014 New Type VSI Crusher (Sand Making Machine)US$ 2,000 - 88,888MOQ: 1 Set
-
2014 Good Quality New Style Complete Sand Making MachineryUS$ 1,950 - 88,888MOQ: 1 Set
-
CHina Made PCL Sand Making Machine With ISO9001 CertificationUS$ 600 - 66,666MOQ: 1 Set
Specifications
1.sand making machine2.large capacity
3.low consumption
4.Factory
5.CE/ISO Certificate

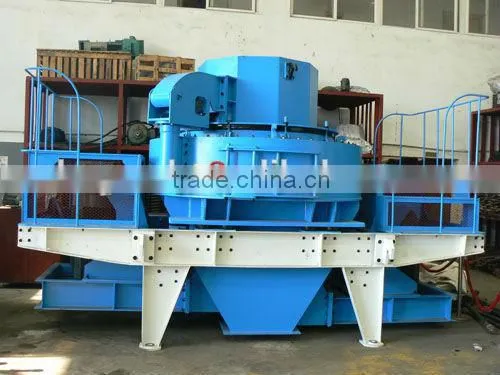

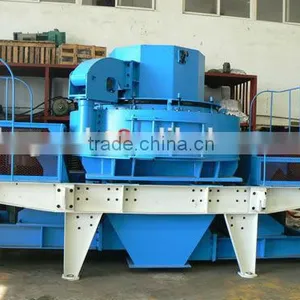

VSI Sand Making Machine with low cost made in China
Sand Making Machine ,also called vertical shaft impact crusher making and rubble shaping machine ,is a kind of crusher impacted by the material themselves . It Is applied in sand making industry and other building industries.
VSI Sand Making Machine with low cost made in China:
The material falls into the high-speed turning impellers from the top of machine and crushes with the materail distributed around the impeller under the effect of high speed centrifugal force.After the impact with each other ,the material is crushed between impeller and cavity and is discharged from the bottom.The material can be milled twice or more times in the whirlpool cavity ,the crushed materials will be excluded through the tottom airflow self-circulation in the whirpool cavity can eliminate the dust pollution well.
VSI Sand Making Machine with low cost made in China
Model |
B-VSI7611 |
B-VSI8518 |
B-VSI9526 |
B-VSI1140 |
||
Capacity |
Feed both |
120-180 |
200-260 |
300-380 |
450-520 |
|
Feed at center |
60-90 |
100-130 |
150-190 |
225-260 |
||
Max feed size |
Sofe material |
35 |
40 |
45 |
50 |
|
Hard material |
30 |
35 |
40 |
45 |
||
Rotation speed (r/min) |
1700-1890 |
1520-1690 |
1360-1510 |
1180-1310 |
||
Power(KW) |
110-150 |
180-220 |
264-320 |
400-440 |
||
Overall dimension |
3700*2150 |
4140*2280 |
4560*2447 |
5000*2700 |
||
Weight (t) |
7.8 |
10.3 |
16 |
25.6 |
||
Power supply |
380V, 50HZ |
|||||
Vibrating sensor |
detect range: 0.1-20mm/s continous and adjustable |
|||||
Lubrication |
power |
2*0.31KW |
||||
Safety assuance |
Double oil pumps assure enough oil supply; automatic switch off with no oil stream or hydraulic strength; lower the temperature with cool water in summer; raise the temperature with motor in winter. |
|||||
|
|
|
|
|
||
Overall demension L*W*H (mm) |
|
820*520 |
820*520 |
|
||
Power of oil tank heater |
2KW |
|||||
Certifications:
Factory Information:
Projects:
Welcome to visit our factory !Welcome to inquiry !
l We will pick you up at Zhengzhou XingZheng Airport .
l We will treat your accommodation and diet during you are here.
Send Inquiry to This Supplier
