Specifications
QT5-15 brick machine1.ISO9001:2008, CE, SGS
2.easy to operate the machine
3.good after sale service
4.low investment

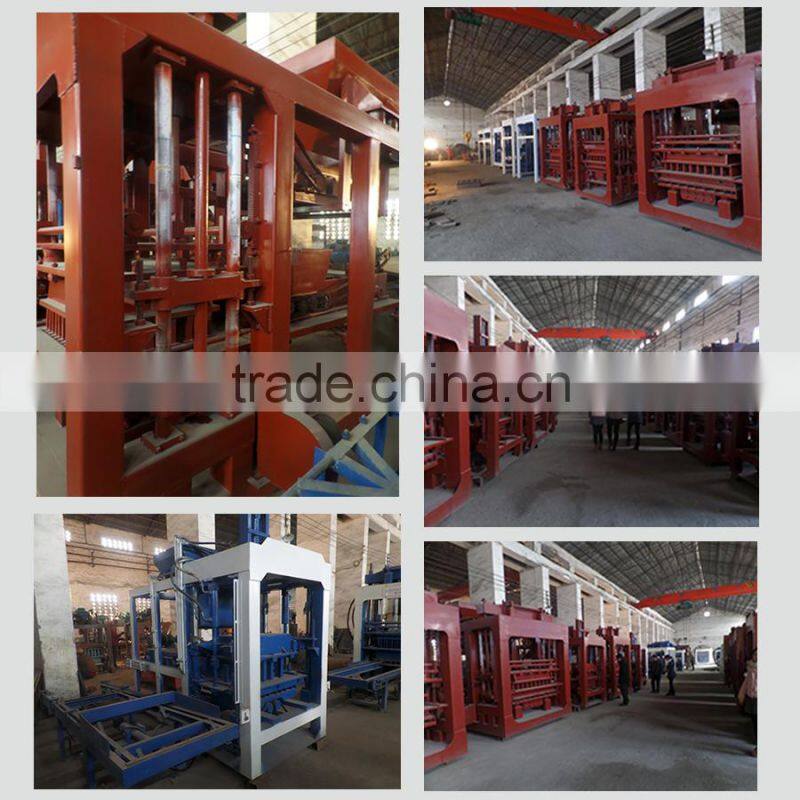

QT5-15 brick machine
vibration mode: table and mould vibration
frequency:5000 times / min
molding cycle:15-22 sec / one time
main motor power:33 kw
Features of QT5-15 brick machine:
1. This machine adopt the advanced vibration control system.. The forming can be completed in seconds with large pressure and solid density.
2.It’s pallet saving.Only ten pieces of supporting plates can be piled.
3.As the advanced hydraulic ratio control technology is adopted so that the oil pressure of each branch of the circuit can be controled at will and various bricks with the same high quality can be produced using different raw materials.
4.PLC intelligent control system which equiped with data input and output device,advanced safety logic and fault self-diagnosis system is adopted in full of the production procedure.
Main technical specefications of QT5-15 brick machine:
QT5-15 brick machine main technical parameters | |
Molding time |
15-20 seconds |
Power |
32.95kw |
Main vibration form |
Platefrom vibration |
Vibrating frequency |
5000rolls/minute |
Rated pressure |
18MPa |
Voltage |
Adapt to local voltage |
Overall dimensions |
3390x2400x4000mm |
Weight |
About 6T |
Raw material |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, gypsum,and otherindustrial wastes. |
Applied products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Productivity of the QT5-15 brick machine:
|
Size(mm) |
Pcs/mould |
Pcs/hour |
Pcs/day(10hr) |
Hollow block |
390x190x190 |
5 |
900 |
9000 |
Porous brick |
240x115x90 |
16 |
3500 |
35000 |
Solid brick |
240x115x53 |
34 |
6800 |
68000 |
Color brick |
200x100x60 |
20 |
3600 |
36000 |
any normal size any color block ,brick,pavers | ||||
CHOOSE US
1. WE ARE NOT DEALER, WE ARE FACTORY.

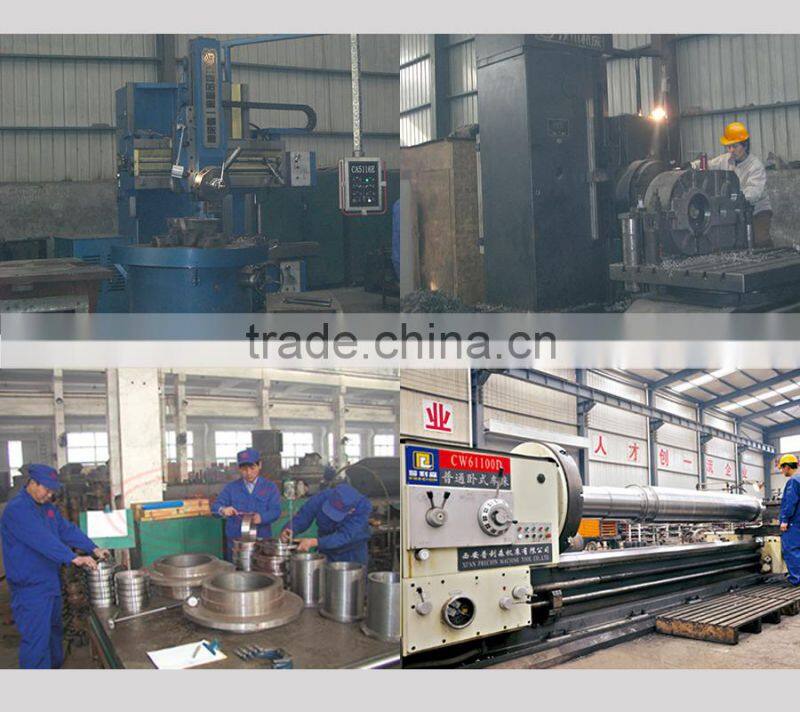

Henan Senda Heavy Industry Machine Co., Ltd. is a leading manufacturer offering many kinds of mining machineries and brick making machine, with 400 skilled workers and occupying about 20000 square meters.
2. Our mission
1].Saving the purchasing cost of our customer;
2].Shorten customer's Business Cycle.
3].Help our customer's business establish their reliability.
If you are interested in some of our products, please feel free to visit our website or contact us for more information and price. We are looking forward to establishing long-lasting business relationships with you in the near future.
