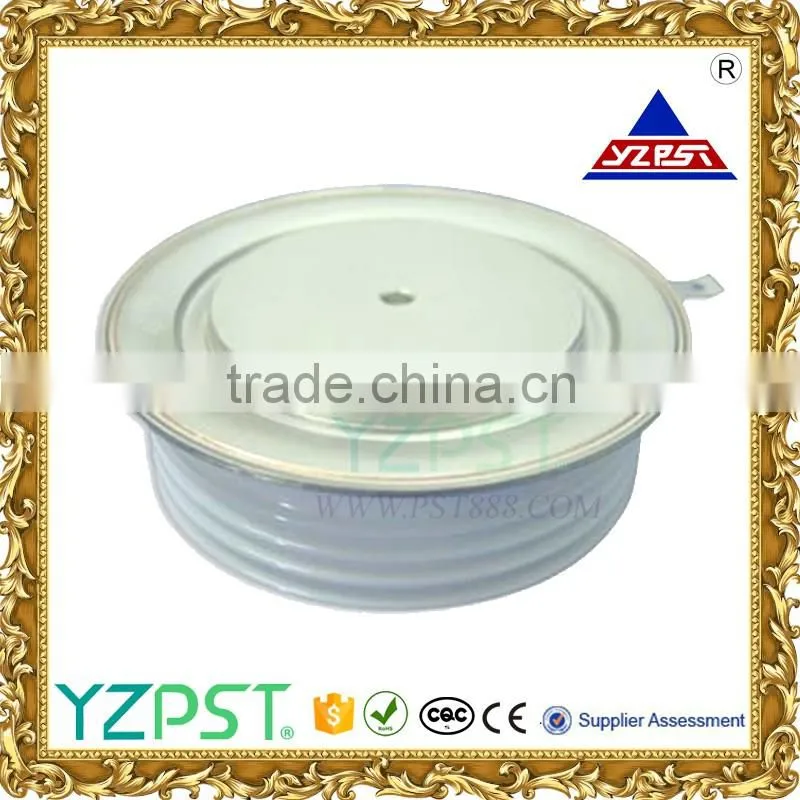

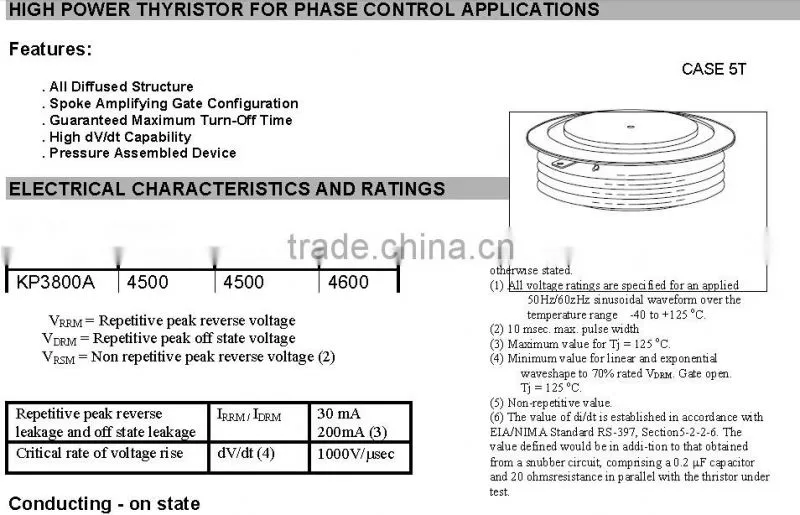

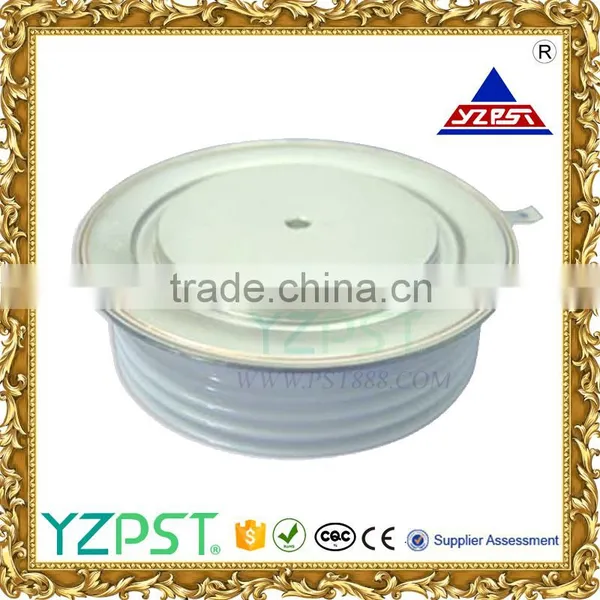

KP3800A4500V
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
Average value of on-state current |
IT(AV) |
|
3800 |
|
A |
Sinewave,180o conduction,Tc=85oC |
RMS value of on-state current |
ITRMS |
|
5800 |
|
A |
Nominal value |
|
Peak one cycle surge (non repetitive) current |
ITSM |
|
59000 |
|
A |
10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 oC |
I square t |
I2t |
|
12x106 |
|
A2s |
10.0 msec |
Latching current |
IL |
|
3 |
|
A |
VD = 24 V; RL= 12 ohms |
Holding current |
IH |
|
350 |
|
mA |
VD = 24 V; I = 2.5 A |
Peak on-state voltage |
VTM |
|
2.10 |
|
V |
ITM = 4000 A; Duty cycle ≤ 0.01% |
Critical rate of rise of on-state current (5, 6) |
di/dt |
|
800 |
|
A/µs |
Switching from VDRM ≤ 3000 V, non-repetitive |
Critical rate of rise of on-state current (6) |
di/dt |
|
200 |
|
A/µs |
Switching from VDRM ≤ 3000 V |
Gating
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
Peak gate power dissipation |
PGM |
|
200 |
|
W |
tp = 40 us |
Average gate power dissipation |
PG(AV) |
|
5 |
|
W |
|
Peak gate current |
IGM |
|
20 |
|
A |
|
Gate current required to trigger all units |
IGT |
|
300 |
|
mA |
VD = 6 V;RL = 3 ohms;Tj = +25 oC |
Gate voltage required to trigger all units |
VGT |
|
3 |
|
V |
VD = 6 V;RL = 3 ohms;Tj = 25oC |
Peak negative voltage |
VGRM |
|
20 |
|
V |
|

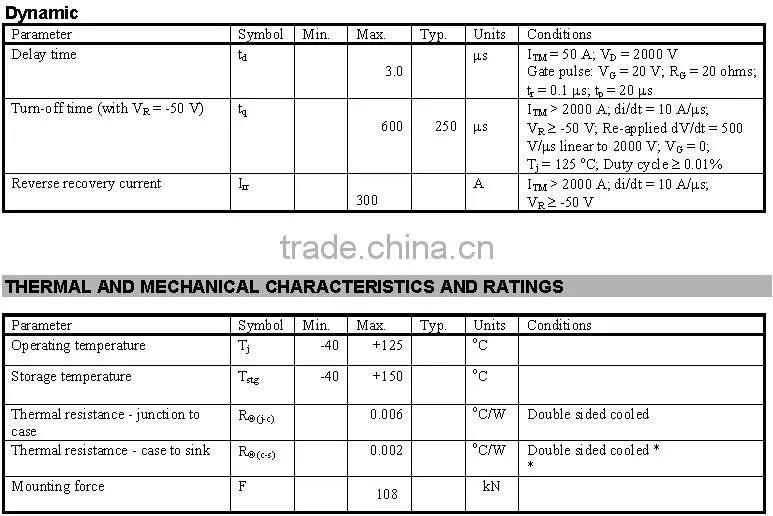

* Mounting surfaces smooth, flat and greased
Note : for case outline and dimensions, see case outline drawing in page 3 of this Technical Data
CASE OUTLINE AND DIMENSIONS
