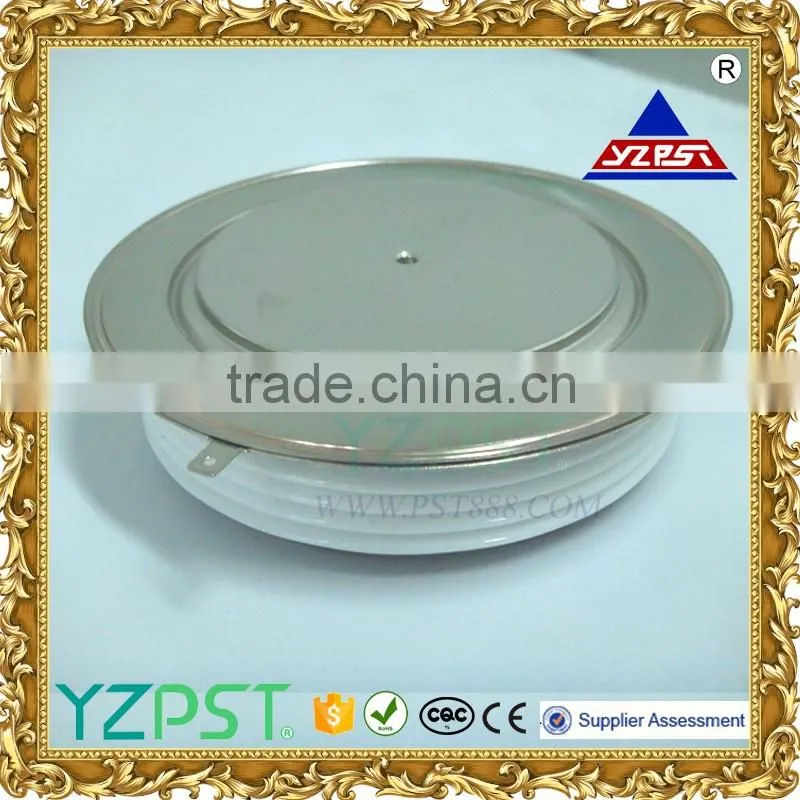

High Power Silicon Controlled Thyristor 1600V

Name: High Power Silicon Controlled Thyristor 1600V
Brand: YZPST
SKU: 117325015

High Power Silicon Controlled Thyristor 1600V thumbnail-1

High Power Silicon Controlled Thyristor 1600V thumbnail-2

High Power Silicon Controlled Thyristor 1600V photo-1

High Power Silicon Controlled Thyristor 1600V photo-2

US$ 63 - 85 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

YZPST

Model Number:

KP1900A1600V/3

Contact Supplier Request Quote Chat Now

Yangzhou Positioning Tech. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name YZPST

Model Number KP1900A1600V/3

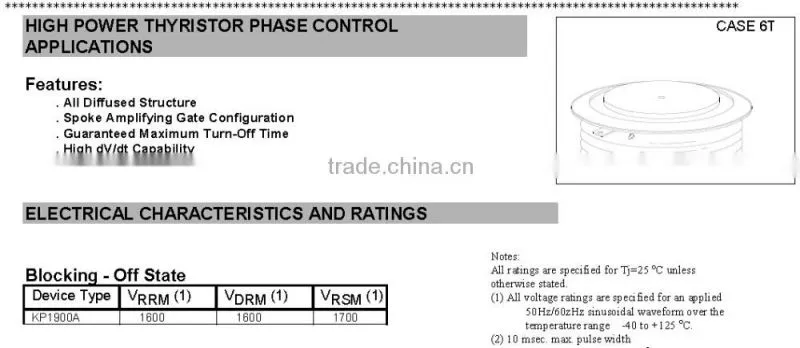

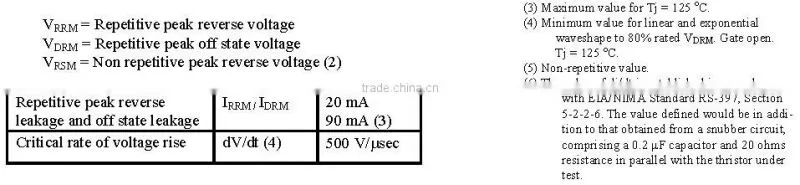

High power thyristor phase control

KP1900A1600V

Product Description

Conducting - on state

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Average value of on-state current	I_T(AV)		1900		A	Sinewave,180^o conduction,T_c=65^oC
RMS value of on-state current	I_TRMS		3100		A	Nominal value
Peak one cpstcle surge (non repetitive) current	I_TSM		54000 46000		A A	8.3 msec (60Hz), sinusoidal wave- shape, 180^o conduction, T_j = 125 ^oC 10.0 msec (50Hz), sinusoidal wave- shape, 180^o conduction, T_j = 125 ^oC
I square t	I²t		14x10⁶		A²s	8.3 msec
Latching current	I_L		500		mA	V_D = 24 V; R_L= 12 ohms
Holding current	I_H		500		mA	V_{D =} 24 V; I = 2.5 A

Peak on-state voltage

V_TM

1.25

I_TM = 3000 A;

Critical rate of rise of on-state

current (5, 6)

di/dt

300

A/ms

Switching from V_DRM £ 1000 V,

non-repetitive

Critical rate of rise of on-state

current (6)

di/dt

150

A/ms

Switching from V_DRM £ 1000 V

Gating

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Peak gate power dissipation	P_GM		200		W	t_p= 40 us
Average gate power dissipation	P_G(AV)		5		W
Peak gate current	I_GM		20		A
Gate current required to trigger all units	I_GT		300 200 125		mA mA mA	V_D = 6 V;R_L = 3 ohms;T_j = -40 ^oC V_D = 6 V;R_L = 3 ohms;T_j = +25 ^oC V_D = 6 V;R_L = 3 ohms;T_j = +125^oC
Gate voltage required to trigger all units	V_GT	0.30	5 4		V V V	V_D = 6 V;R_L = 3 ohms;T_j = -40 ^oC V_D = 6 V;R_L = 3 ohms;T_j = 0-125^oC V_D = Rated V_DRM; R_L = 1000 ohms; T_j = + 125 ^oC
Peak negative voltage	V_GRM		20		V

Dynamic

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Delay time	t_d		2.0		ms	I_TM = 50 A; V_D = 67% V_DRM Gate pulse: V_G = 30 V; R_G = 10 ohms; t_r = 0.1 ms; t_p = 20 ms
Turn-off time (with V_R = -50 V)	t_q		250		ms	I_TM > 2000 A; di/dt = 10 A/ms; V_R ³ -50 V; Re-applied dV/dt = 20 V/ms linear to 80% V_DRM ; T_j = 125 ^oC; Duty cpstcle ³ 0.01%
Reverse recovery current	I_rr		120		A	I_TM > 2000 A; di/dt = 10 A/ms; V_R ³ -50 V

THERMAL AND MECHANICAL CHARACTERISTICS AND RATINGS

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Operating temperature	T_j	-40	+125		^oC
Storage temperature	T_stg	-40	+150		^oC
Thermal resistance - junction to case	R_{Q (j-c)}		0.017		^oC/W	Double sided cooled
Thermal resistamce - case to sink	R_{Q (c-s)}		0.003		^oC/W	Double sided cooled *
Mounting force	P	8000 35.5	10000 44.4		lb. kN
Weight	W			2.1 953	Lb. g.

* Mounting surfaces smooth, flat and greased

Note : for case outline and dimensions, see case outline drawing in page 3 of this Technical Data

A:63 mm

B:99 mm

C:89 mm

D:26 mm
