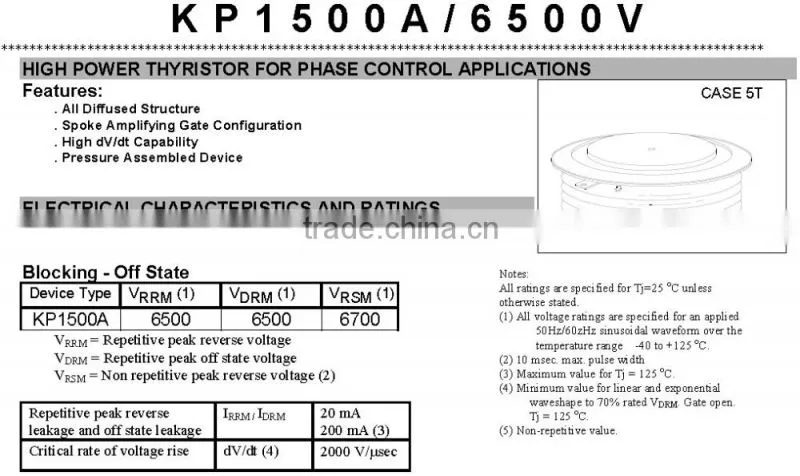

PHASE CONTROL THYRISTORS
KP1500A6500V
Conducting - on state
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
Average value of on-state current |
IT(AV) |
|
1500 |
|
A |
Sinewave,180o conduction,Tc=70oC |
RMS value of on-state current |
ITRMS |
|
2800 |
|
A |
Nominal value |
|
Peak one cpstcle surge (non repetitive) current |
ITSM |
|
30000
27000 |
|
A
A |
8.3 msec (60Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 oC 10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 oC |
I square t |
I2t |
|
10x106 |
|
A2s |
8.3 msec and 10.0 msec |
Latching current |
IL |
|
1500 |
|
mA |
VD = 24 V; RL= 12 ohms |
Holding current |
IH |
|
250 |
|
mA |
VD = 24 V; I = 2.5 A |
Peak on-state voltage |
VTM |
|
2.20 |
|
V |
ITM = 3000 A |
|
Critical rate of rise of on-state current (5) |
di/dt |
|
300 |
|
A/ms |
Switching from VDRM £ 800 V, non-repetitive |
|
Critical rate of rise of on-state current |
di/dt |
|
100 |
|
A/ms |
Switching from VDRM £ 800 V |
Gating
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
Peak gate power dissipation |
PGM |
|
200 |
|
W |
tp = 40 us |
Average gate power dissipation |
PG(AV) |
|
5 |
|
W |
|
Peak gate current |
IGM |
|
20 |
|
A |
|
Gate current |
IGT |
|
300 |
|
mA |
|
Gate voltage |
VGT |
0.30 |
3.5 |
|
V |
|
Dynamic
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
Delay time |
td |
|
|
|
ms |
|
Turn-off time (with VR = -50 V) |
tq |
|
|
|
ms |
|
THERMAL AND MECHANICAL CHARACTERISTICS AND RATINGS
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
Operating temperature |
Tj |
-40 |
+125 |
|
oC |
|
Storage temperature |
Tstg |
-40 |
+150 |
|
oC |
|
Thermal resistance - junction to case |
RQ (j-c) |
|
0.012
|
|
oC/W |
Double sided cooled Single sided cooled |
Thermal resistamce - case to sink |
RQ (c-s) |
|
0.002
|
|
oC/W |
Double sided cooled * Single sided cooled * |
Mounting force |
P |
8000
|
10000
|
|
lb. kN |
|
Weight |
W |
|
|
|
Lb. Kg. |
|
* Mounting surfaces smooth, flat and greased

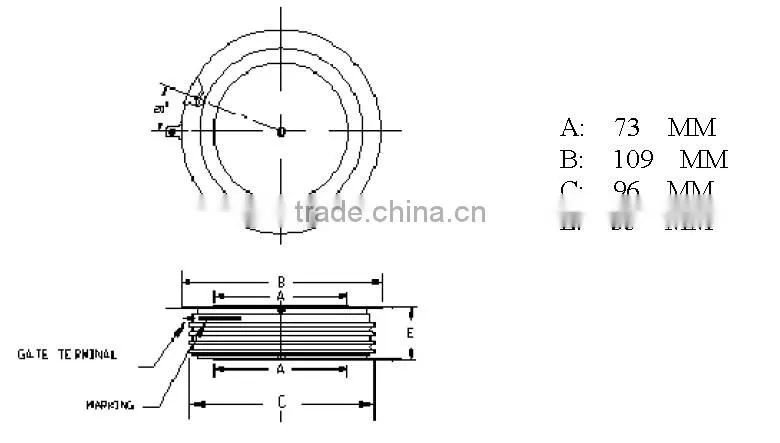

Note : for case outline and dimensions, see case outline drawing
