Product Details
Place of Origin: | Jiangsu, China | Brand Name: | YZPST | Model Number: | KP3500A1000V/3 |
Product Description

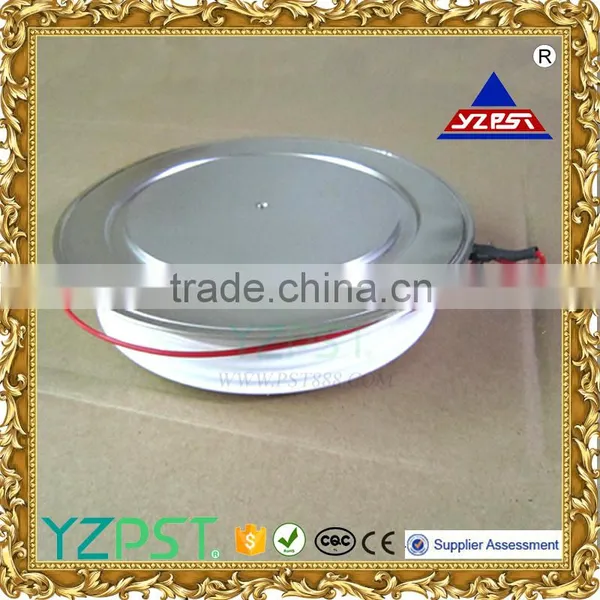

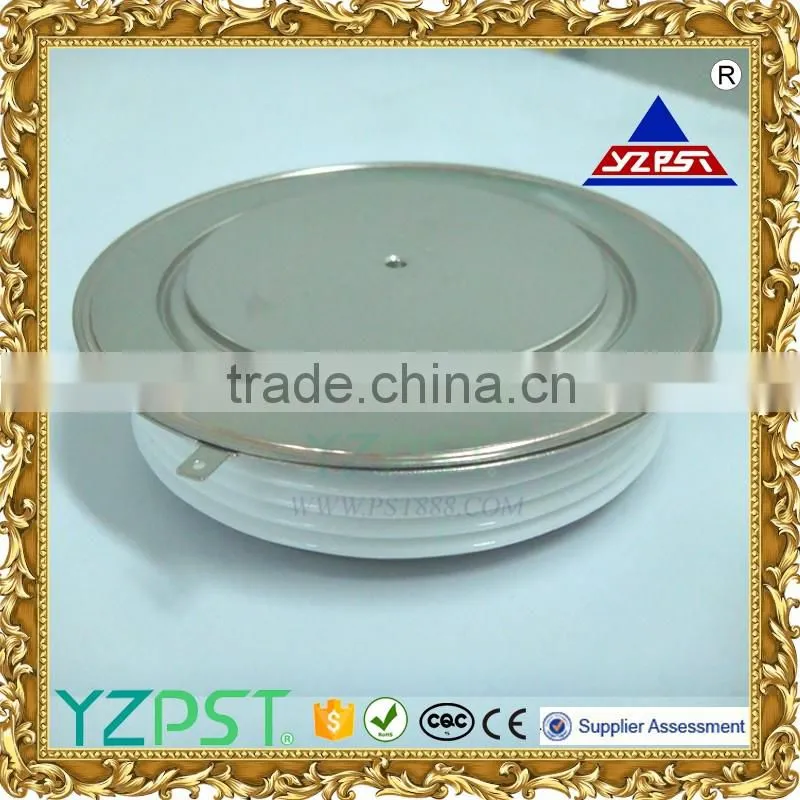

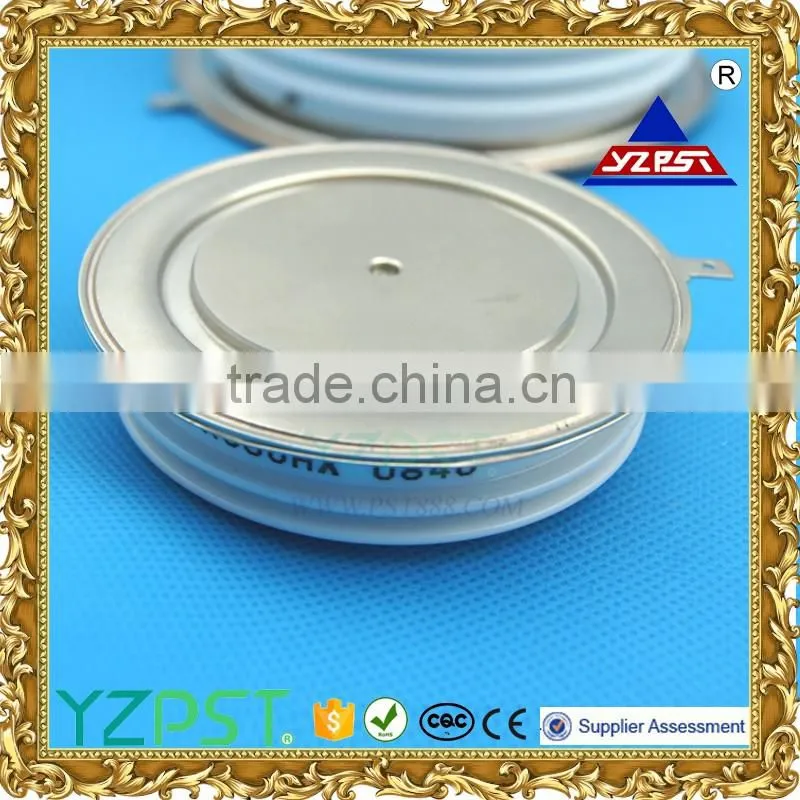

Phase control of high power thyristor
KP3500A1000V
Features:
. All Diffused Structure
. Interdigitated Amplifying Gate Configuration
. Guaranteed Maximum Turn-Off Time
. High dV/dt Capability
. Pressure Assembled Device

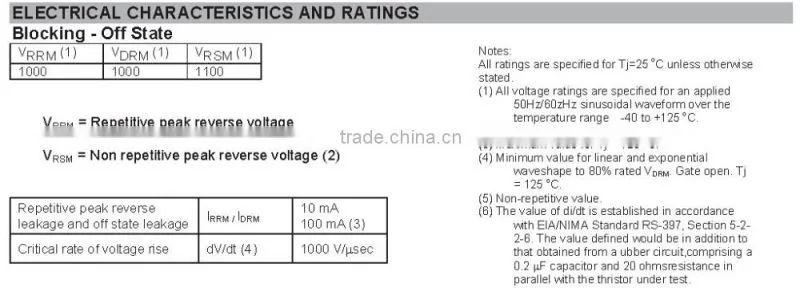

Conducting - on state
Parameter | Symbol | Min. | Max. | Typ. | Units | Conditions |
Average value of on-state current | IT(AV) |
| 3500 |
| A | Sinewave,180o conduction,Tc=85oC |
RMS value of on-state current | ITRMS |
| 5100 |
| A | Nominal value |

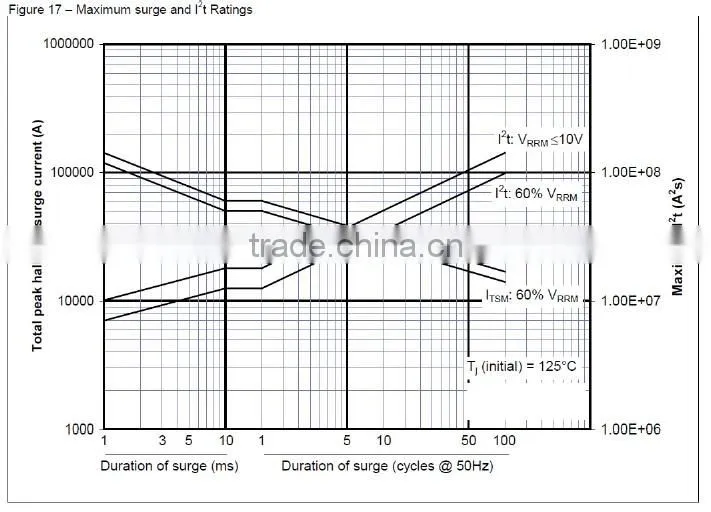

Peak one cPSTCle surge (non repetitive) current |
ITSM |
| -
65 |
| kA

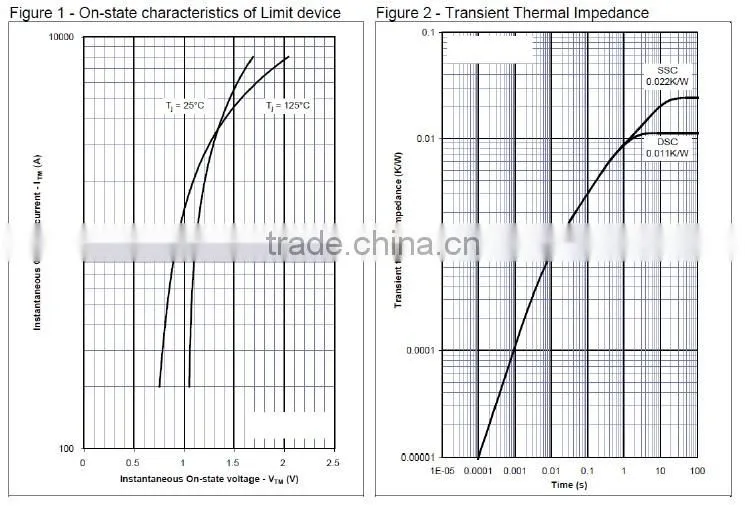

kA | 8.3 msec (60Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 oC 10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 oC |
I square t | I2t |
| 21x106 |
| A2s | 8.3 msec |
Latching current | IL |
| 2000 |
| mA | VD = 24 V; RL= 12 ohms |
Holding current | IH |
| 1000 |
| mA | VD = 24 V; I = 2.5 A |
Peak on-state voltage | VTM |
| 1.2 |
| V | ITM = 4000 A; Tj = 125 oC |
Threshold vlotage | VT0 |
| 0.85 |
| V |
|
Slope resistance | rT |
| 0.029 |
| mΩ |
|
Critical rate of rise of on-state current (5, 6) | di/dt |
| 400 |
| A/ms | Switching from VDRM £ 1000 V, non-repetitive |
Critical rate of rise of on-state current (6) | di/dt |
| 200 |
| A/ms | Switching from VDRM £ 1000 V |

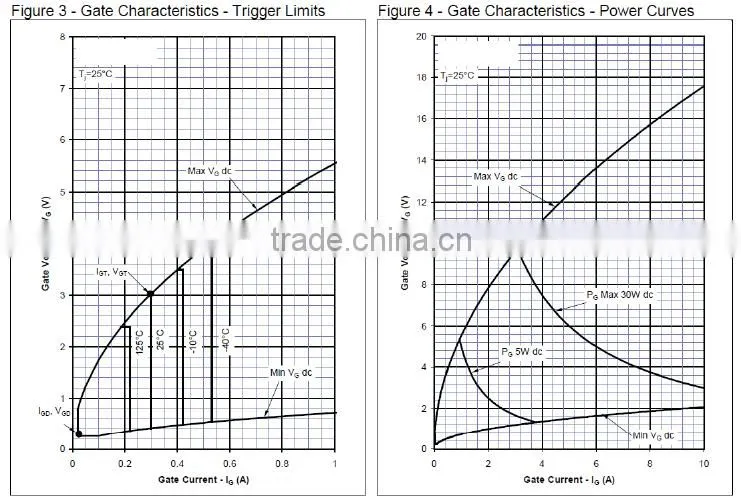

Gating
Parameter | Symbol | Min. | Max. | Typ. | Units | Conditions |
Peak gate power dissipation | PGM |
| 30 |
| W |
|
Average gate power dissipation | PG(AV) |
| 4 |
| W |
|
Peak gate current | IGM |
| - |
| A |
|
Gate current required to trigger all units | IGT |
| 300 |
| mA | VD = 10 V;IT=3A;Tj = +25 oC
|
Gate voltage required to trigger all units | VGT |
| 3.0 |
| V
| VD = 10 V;IT=3A;Tj = +25 oC
|
Peak negative voltage | VRGM |
| 5 |
| V |
|
Dynamic
Parameter | Symbol | Min. | Max. | Typ. | Units | Conditions |
Delay time | tgd |
| 1.5 | - | ms | VD=67% VDRM, IT=2000A, di/dt=60A/us, IFG=2A, tr=0.5us, Tj=25C |
Turn-on time | tgt |
| 2.0 | - |
| |
Turn-off time (with VR = -5 V) | tq | - | - | 200 | ms | ITM=1000A, tp=1000us, di/dt=60A/us, Vr=50V, Vdr=80%VDRM, dVdr/dt=20V/us |
Reverse recovery current | Irm |
| - |
| A | ITM=4000A, tp=2000us, di/dt=60A/us |
THERMAL AND MECHANICAL CHARACTERISTICS AND RATINGS
Parameter | Symbol | Min. | Max. | Typ. | Units | Conditions |
Operating temperature | Tj | -40 | +125 |
| oC |
|
Storage temperature | Tstg | -40 | +125 |
| oC |
|

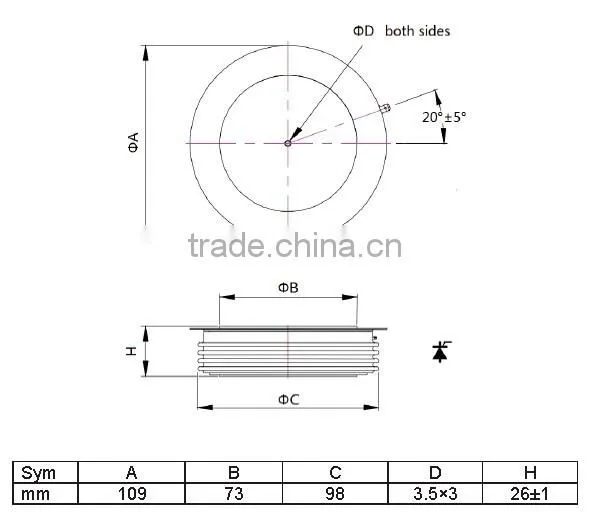

Thermal resistance - junction to case | RQ (j-c) |
| 9 18 |
| K/kW | Double sided cooled * Single sided cooled * |
Thermal resistamce - case to sink | RQ (c-s) |
| 2 4 |
| K/kW | Double sided cooled * Single sided cooled * |
Thermal resistance - junction to case | RQ (j-s) |
| - - |
| K/kW | Double sided cooled * Single sided cooled * |
Mounting force | F | 36 | 44 | - | kN |
|
Weight | W |
|
| 1.2 | Kg | about |
