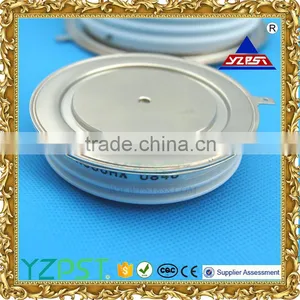

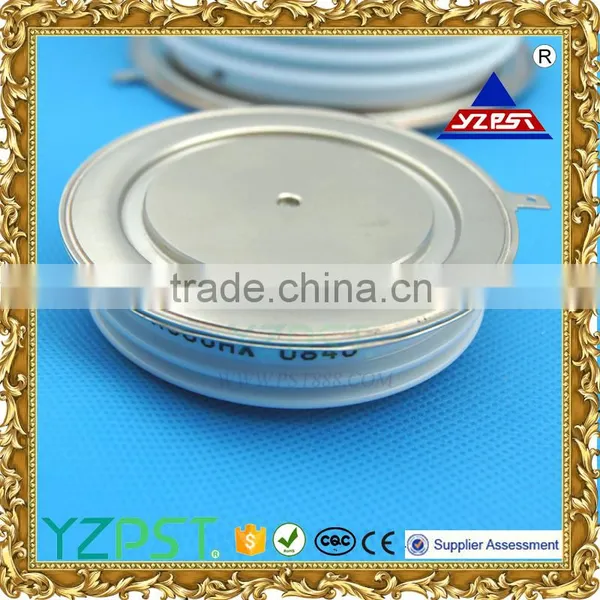

Help CenterSemiconductor Thyristor 3500A
Related Products
Phase control of high power thyristor
KP3500A1000V
Features:
. All Diffused Structure
. Interdigitated Amplifying Gate Configuration
. Guaranteed Maximum Turn-Off Time
. High dV/dt Capability
. Pressure Assembled Device
Conducting - on state
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
Average value of on-state current |
IT(AV) |
|
3500 |
|
A |
Sinewave,180o conduction,Tc=85oC |
RMS value of on-state current |
ITRMS |
|
5100 |
|
A |
Nominal value |
|
Peak one cPSTCle surge (non repetitive) current |
ITSM |
|
-
65 |
|
kA
kA |
8.3 msec (60Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 oC 10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 oC |
I square t |
I2t |
|
21x106 |
|
A2s |
8.3 msec |
Latching current |
IL |
|
2000 |
|
mA |
VD = 24 V; RL= 12 ohms |
Holding current |
IH |
|
1000 |
|
mA |
VD = 24 V; I = 2.5 A |
Peak on-state voltage |
VTM |
|
1.2 |
|
V |
ITM = 4000 A; Tj = 125 oC |
Threshold vlotage |
VT0 |
|
0.85 |
|
V |
|
Slope resistance |
rT |
|
0.029 |
|
mΩ |
|
|
Critical rate of rise of on-state current (5, 6) |
di/dt |
|
400 |
|
A/ms |
Switching from VDRM £ 1000 V, non-repetitive |
|
Critical rate of rise of on-state current (6) |
di/dt |
|
200 |
|
A/ms |
Switching from VDRM £ 1000 V |
Gating
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
Peak gate power dissipation |
PGM |
|
30 |
|
W |
|
Average gate power dissipation |
PG(AV) |
|
4 |
|
W |
|
Peak gate current |
IGM |
|
- |
|
A |
|
Gate current required to trigger all units |
IGT |
|
300 |
|
mA |
VD = 10 V;IT=3A;Tj = +25 oC
|
Gate voltage required to trigger all units |
VGT |
|
3.0 |
|
V
|
VD = 10 V;IT=3A;Tj = +25 oC
|
Peak negative voltage |
VRGM |
|
5 |
|
V |
|
Dynamic
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
Delay time |
tgd |
|
1.5 |
- |
ms |
VD=67% VDRM, IT=2000A, di/dt=60A/us, IFG=2A, tr=0.5us, Tj=25C |
Turn-on time |
tgt |
|
2.0 |
- |
|
|
Turn-off time (with VR = -5 V) |
tq |
- |
- |
200 |
ms |
ITM=1000A, tp=1000us, di/dt=60A/us, Vr=50V, Vdr=80%VDRM, dVdr/dt=20V/us |
Reverse recovery current |
Irm |
|
- |
|
A |
ITM=4000A, tp=2000us, di/dt=60A/us |
THERMAL AND MECHANICAL CHARACTERISTICS AND RATINGS
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
Operating temperature |
Tj |
-40 |
+125 |
|
oC |
|
Storage temperature |
Tstg |
-40 |
+125 |
|
oC |
|
Thermal resistance - junction to case |
RQ (j-c) |
|
9 18 |
|
K/kW |
Double sided cooled * Single sided cooled * |
Thermal resistamce - case to sink |
RQ (c-s) |
|
2 4 |
|
K/kW |
Double sided cooled * Single sided cooled * |
Thermal resistance - junction to case |
RQ (j-s) |
|
- - |
|
K/kW |
Double sided cooled * Single sided cooled * |
Mounting force |
F |
36 |
44 |
- |
kN |
|
Weight |
W |
|
|
1.2 |
Kg |
about |
