Three phase bridge rectifiers

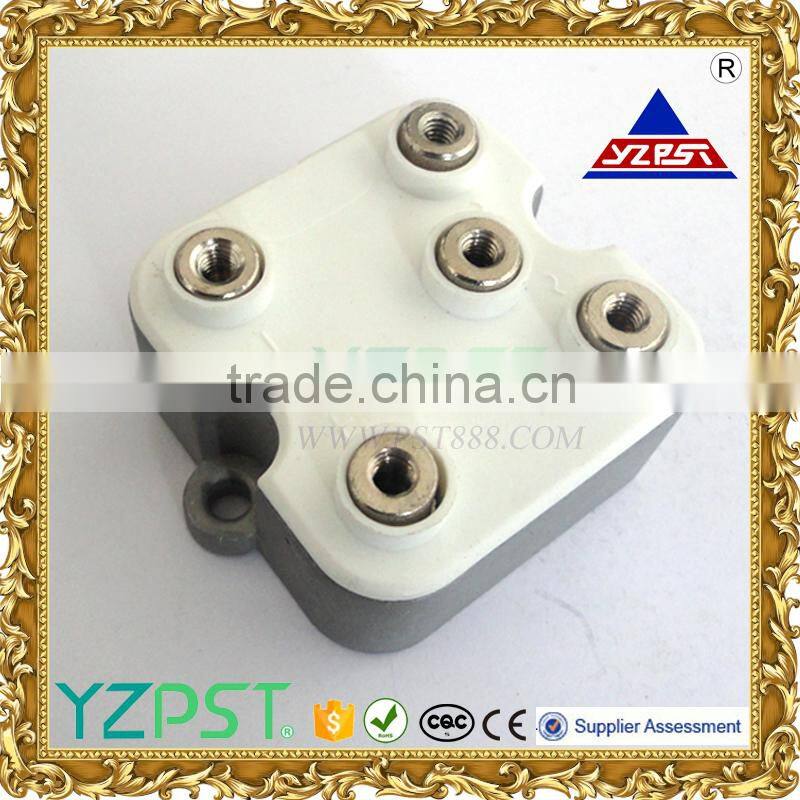

SKB30-16
SKB30
Three Phase IdAV = 30 A
Rectifier Bridge VRRM = 1000-1600V
VRRM (V) | VRSM (V) | TYPE |
1000 | 1100 | SKB 30-10 |
1200 | 1300 | SKB 30-12 |
1600 | 1700 | SKB 30-16 |

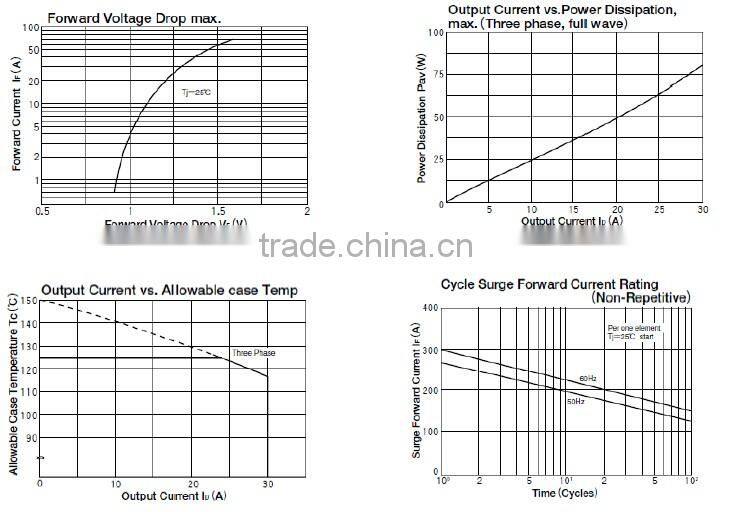

Maximum Ratings
Symbol | Item | Conditions | Ratings | Unit | |
ID | Output current (D.C.) | Three phase. full wave. TC=117 oC | 30 | A | |
IFSM | Surge Forward Current | 1 cycle, 50/60HZ, peak value, non-repetitive | 270/300 | A | |
Tj | Junction Temperature |
| -40 to +150 | oC | |
Tstg | Storage Temperature |
| -40 to +125 | oC | |
VISO | Isolation Breakdown Voltage(R.M.S.) | Main Terminal to case 1minute | 2500 | V | |

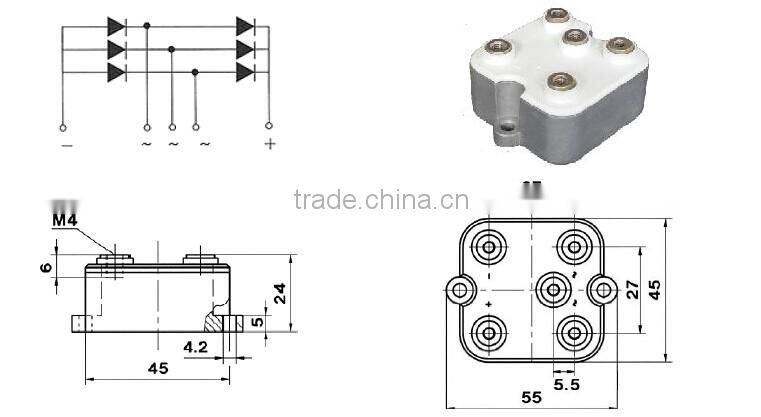

Md | Mounting torque | Mounting(M4) | Recommended Value 1.1-1.5(9-13) | 1.5(13) | Nm(kgfcm) |
Terminal(M4) | Recommended Value 1.1-1.5(9-13) | 1.5(13) | |||
Electrical Characteristics
Symbol | Item | Conditions | Ratings | Unit |
IRRM | Repetitive Peak Reverse Current, max. | Tj=150 oCat VRRM | 3.0 | mA |
VFM | Forward Voltage Drop, max. | IFM=30A, Tj=25 oCInst. measurement | 1.3 | V |

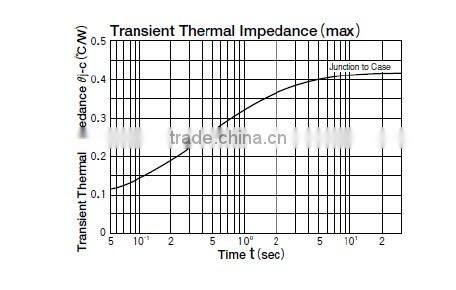

Rth(j-c) | Thermal Impedance, max. | Junction to case | 0.42 | oC/W |
