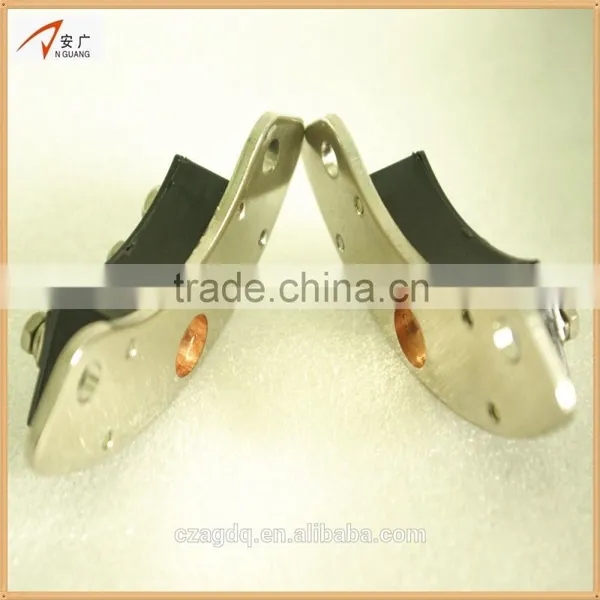

Rectifier Diodes For Power Supply
1)ISO9001 & CE
2)10 years professional technical
3)As manufacturer with high quality and low price.
Features |
|
1.High Reliability 2.Low forward voltage drop 3.Space and weight saving 4.Withstand voltage AC 2500v 5.Max junction temperature up to 150°C 6.Simple mounting and easy maintenance |
Applications |
|
Generator Excitation specially designed for stamford series products. |
Module Circuit Diagram:
TYPE |
IT(AV) |
VRRM |
ITSM |
VTM |
IDRM |
VISO |
RTH |
IF(AV) |
VDRM |
45℃10ms |
VFM |
@Tc |
|||
A |
V |
A |
V |
mA |
V |
℃/W |
|
MXG(Q)* |
25 |
400-1800 |
350 |
≤1.3 |
≤2 |
2500 |
0.32 |
MXY(Q)* |
40 |
400-1800 |
530 |
≤1.3 |
≤2 |
2500 |
0.26 |
MXG(Ⅰ)* |
40 |
400-1800 |
530 |
≤1.3 |
≤2 |
2500 |
0.26 |
MXY(Ⅰ)* |
50 |
400-1800 |
650 |
≤1.3 |
≤2 |
2500 |
0.34 |
MXG(Ⅱ) |
40 |
400-1800 |
530 |
≤1.3 |
≤2 |
2500 |
0.26 |
MXY(Ⅱ) |
50 |
400-1800 |
650 |
≤1.3 |
≤2 |
2500 |
0.3 |
MXG(Ⅲ) |
25 |
400-1800 |
350 |
≤1.3 |
≤2 |
2500 |
0.32 |
MXY(Ⅲ) |
40 |
400-1800 |
530 |
≤1.3 |
≤2 |
2500 |
0.26 |
MXGIV) |
50 |
400-1800 |
650 |
≤1.3 |
≤2 |
2500 |
0.3 |
MXY(IV) |
70 |
400-1800 |
900 |
≤1.3 |
≤3 |
2500 |
0.26 |
MXG(V) |
50 |
400-1800 |
650 |
≤1.3 |
≤2 |
2500 |
0.28 |
70 |
400-1800 |
900 |
≤1.3 |
≤3 |
2500 |
0.24 |
|
100 |
400-1800 |
1300 |
≤1.3 |
≤3 |
2500 |
0.19 |
|
MXG(VI) |
40 |
400-1800 |
530 |
≤1.3 |
≤2 |
- |
0.2 |
MXY(VI) |
50 |
400-1800 |
650 |
≤1.3 |
≤2 |
0.29 |
|
MXG(VII) |
50 |
400-1800 |
650 |
≤1.3 |
≤2 |
- |
0.21 |
MXY(VII) |
70 |
400-1800 |
900 |
≤1.3 |
≤3 |
0.19 |
