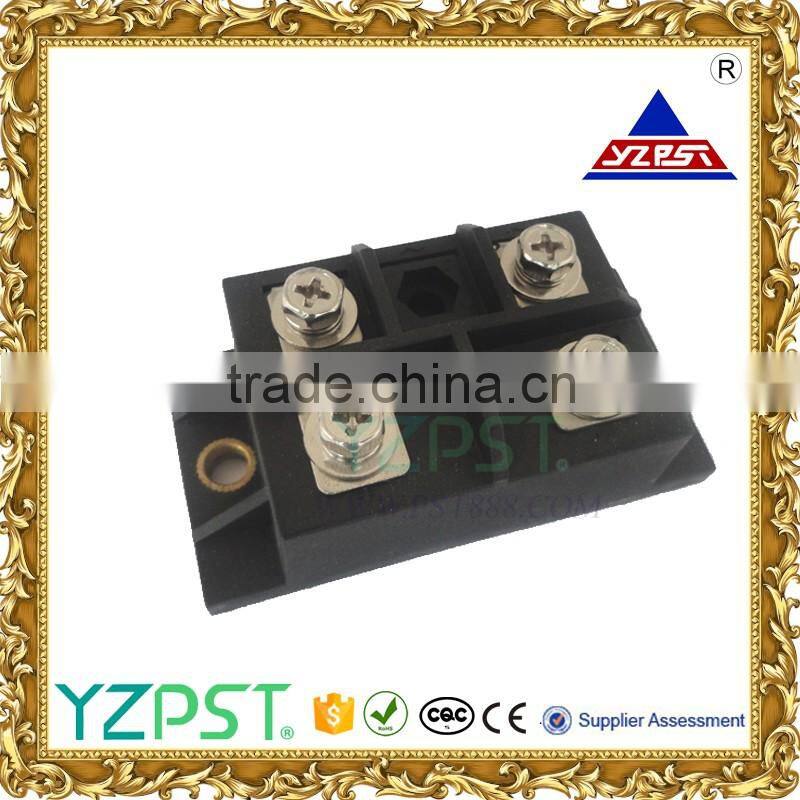

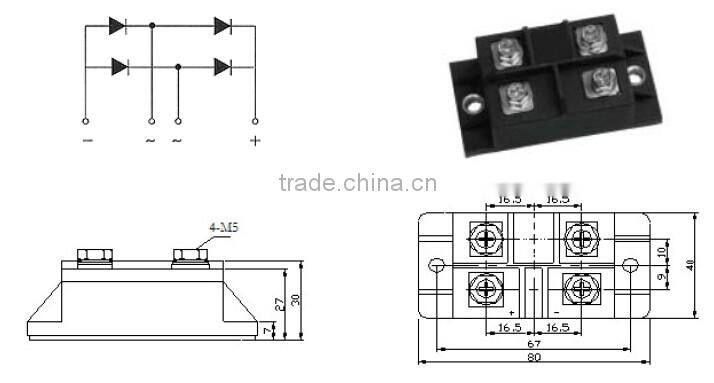

Single-phase rectifier bridge
MDQ75
Single Phase IdAV = 75 A
Rectifier Bridge VRRM = 1000-2400V
VRRM (V) |
VRSM (V) |
TYPE |
1000 |
1100 |
MDQ75-10 |
1200 |
1300 |
MDQ75-12 |
1600 |
1700 |
MDQ75-16 |
1800 |
1900 |
MDQ75-18 |
2200 |
2300 |
MDQ75-22 |
2400 |
2500 |
MDQ75-24 |

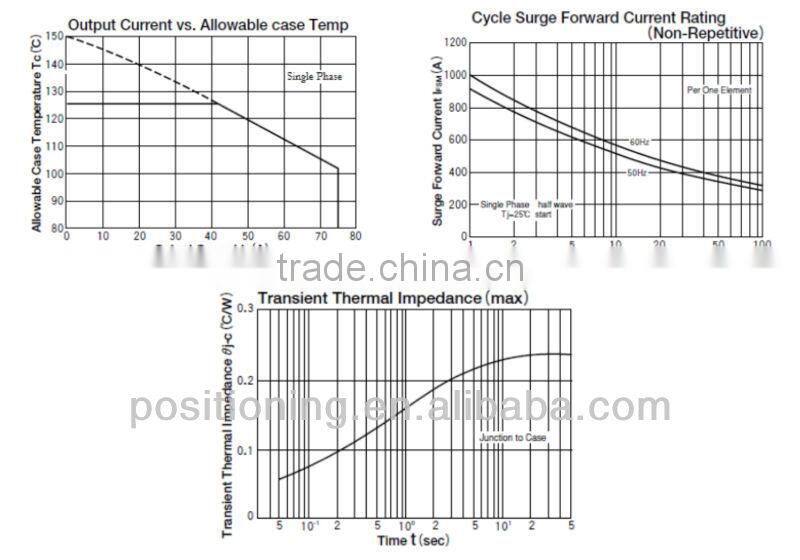

Maximum Ratings
Symbol |
Item |
Conditions |
Ratings |
Unit |
ID |
Output current (D.C.) |
Single phase. full wave. TC=117 oC |
75 |
A |
IFSM |
Surge Forward Current |
1 cycle, 50/60HZ, peak value, non-repetitive |
910/1000 |
A |
I2t |
I2t |
Value for one cycle of surge current |
4100 |
A2S |
Tj |
Junction Temperature |
|
-40 to +150 |
oC |
Tstg |
Storage Temperature |
|
-40 to +125 |
oC |
VISO |
Isolation Breakdown Voltage(R.M.S.) |
Main Terminal to case 1minute |
2500 |
V |
Md |
Mounting torque |
Mounting(M5) |
Recommended Value 1.5-2.5(15-25) |
2.7(28) |
Nm(kgfcm) |
Electrical Characteristics
Symbol |
Item |
Conditions |
Ratings |
Unit |
IRRM |
Repetitive Peak Reverse Current, max. |
Tj=150 oCat VRRM |
5.0 |
mA |
VFM |
Forward Voltage Drop, max. |
IFM=75A, Tj=25 oCInst. measurement |
1.2 |
V |
Rth(j-c) |
Thermal Impedance, max. |
Junction to case |
0.24 |
oC/W |
