Help CenterRubber Conveyer Belt Mining Crusher
Related Products
-
Rubber Conveyer Belt for Stone CrusherUS$ 1,000 - 10,000MOQ: 1 Set -
Conveyer Belt/stone Crusher PlantUS$ 1,000 - 10,000MOQ: 1 Set
-
Rubber Conveyer Belt for Crusher EquipmentUS$ 1,000 - 10,000MOQ: 1 Set
-
Conveyer Belt/ Stone Crushing PlantUS$ 1,000 - 10,000MOQ: 1 Set
-
Conveyer Belt for Rock Crusher PlantUS$ 1,000 - 10,000MOQ: 1 Set
Specifications

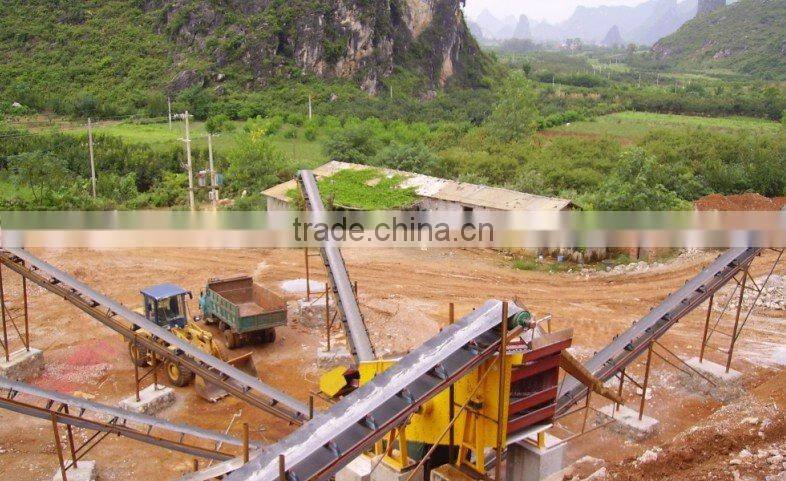

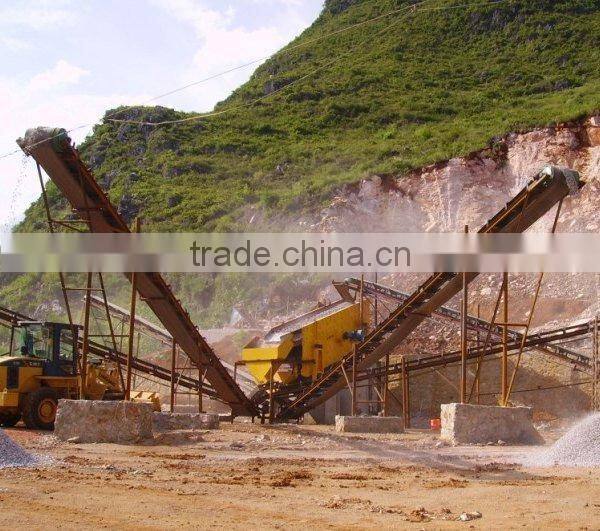

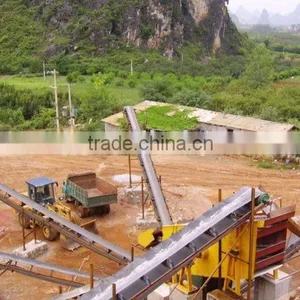

Rubber Conveyer Belt Mining crusherWidely used in Indonesia,Singapore,Malaysia,ect Southeast Asia countries , Mali
Conveyer Belt/Mining crusher machinery/Jaw stone crusher ,conveyer belt, belt conveyor for stone crusher , Conveyer Belt for crushing plant,stone crusher ,crusher machine , Jaw crusher ,impact crusher , can crusher many kinds stone .
Work principle :
The machine is mainly composed of the rack, drive roller, divert roller, drive motor, deceleration body, roller and adhesive tape, etc.. Based on motor-driven, with cycloid speed reducer and then the secondary deceleration driven by sprocket,it takes drive drum for continuous rotation movement. Because of the role of friction, adhesive tape, together with the drive drum,makes reciprocating rotating movement. Materials are discharged after being sent to the bend pulley by the adhesive tape so as to achieve the purpose of sending a variety of materials.
Performance characteristics:
The conveyor belt our company produces is with the advantages of large conveyor capacity, simple structure, easy maintenance, standardized components,etc.. Its widely used in mining, metallurgy, coal and other departments to transport loose materials or items into. In accordance with the requirements of transmission process ,the conveyor can be used as a single transmission ,also can be more than one portfolio or the composition with other transmission equipment level or inclined conveyor system to meet the needs of different types of operating line .
The scope of application:
Conveyor belt can be used in the ambient temperature of -20 ~ +40 ,and the temperature of distribution of materials is below 50 .
Specifications:
Belt Width(mm) | Belt Length (m) /Power (Kw) | Belt Speed(m/s) | Capacity (t/h) | ||
B=400 | ≤12/1.5 | (12-20)/2.2 | (20-25)/5 | 0.8-2.0 | 40-80 |
B=500 | ≤12/3 | (12-20)/4 | (20-30)/5.5 | 0.8-2.0 | 80-190 |
B=650 | ≤12/4 | (12-20)/5.5 | (20-30)/7.5 | 0.8-2.0 | 130-330 |
B=800 | ≤6/4 | (6-15)/5.5 | (15-25)/7.5 | 1.0-2.0 | 280-500 |
B=1000 | ≤10/5.5 | (10-20)/7.5 | (20-25)/11 | 1.0-2.0 | 430-850 |
B=1200 | ≤10/4 | (10-20)/11 | (20-25)/15 | 1.0-2.0 | 650-1200 |
Remarks:
1.The table specified capacity is relative to crushed stone with loose volume density 1.6t/m3.
2.Belt inclined angle should be less than 18°.
3.The company is capable of making special designing as per the customers requirements.
,
