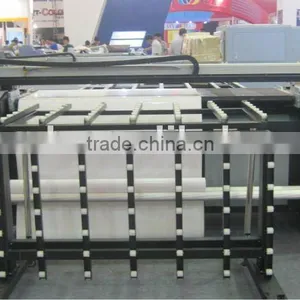

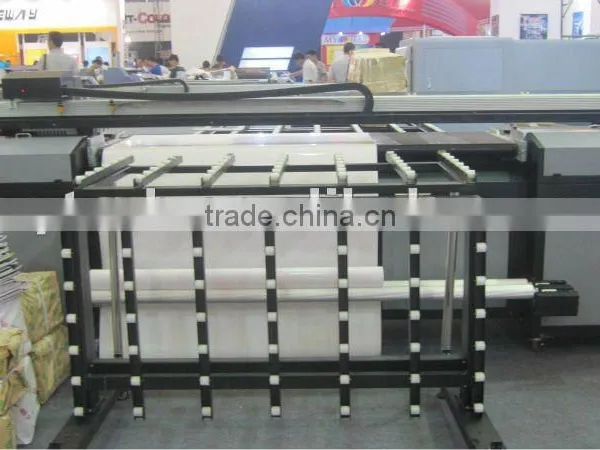

UV digital flatbed printer

Specifications

UV digital flatbed printer;Adopting Epson Dx5 printheads and double servo drivers.resolution 1440 dpi

Name	UV-EP1800
Class	ZY-EPUVA series
Print technology	Drop-on-demandPiezo electric
Printhead	2 EPSON DX5
Print width	1.8M
Print high	5cm
Resolution	1440dpi max
Speed	2pass 36m/h 4pass 24m/h 6pass 10m/h
Locating mode	Raster /servo
Color	CMYKW
Media width	2.0M
Media handl	Roll to roll Sheet to sheet
Media types	corrugated,foam ore,gatorboard;sintra(PVC), eramic tiles,glass,plexiglass, wood, sheet metal, paper,vinlys, dhesive back vinyls, fabrics
Drying system	LEDlamp
File format	TIFF,JPEG,Postscript 3,EPS,PDF
Working process	Printmon software for windows xp
Rip	Photoprint /maintop
Power supply	50hz/60hz 220v(10%)20A
Operation environmeng	(Tempperature )18-26(Humidity )40%-70%
Dimesion	4.0m*1.6m*1.4m
Weight	800KG





Warranty

*1 Year Warranty ( without printheads and consumable spare parts of ink system )

*With the printer ,we send you One free spare parts kit including all the consumable spare parts ; Software CD and Demo VCD and manual freely .You can learn how to install the machine from the vedio we sent to you .

* Our engineer can go to clientsplace to install the printer as client demanding and teach the client how to operate and maintain the machine .All the service is free .The client only need to pay the air ticket and accommodation charge.

*Two of our engineers who is English-spoken & progfessional of techinical are on line 24 hours .They can offer you on-going service and solve the printer problem at anytime!

  UV digital flatbed printer



Contact person:Susan Ning

Tel:86 24 89789511
