Specifications
(1)Lifetime maintence,24 hours online technic-support(2)Colour: CMYK+LC LM+W
(3)Print head:Seiko255/12pl

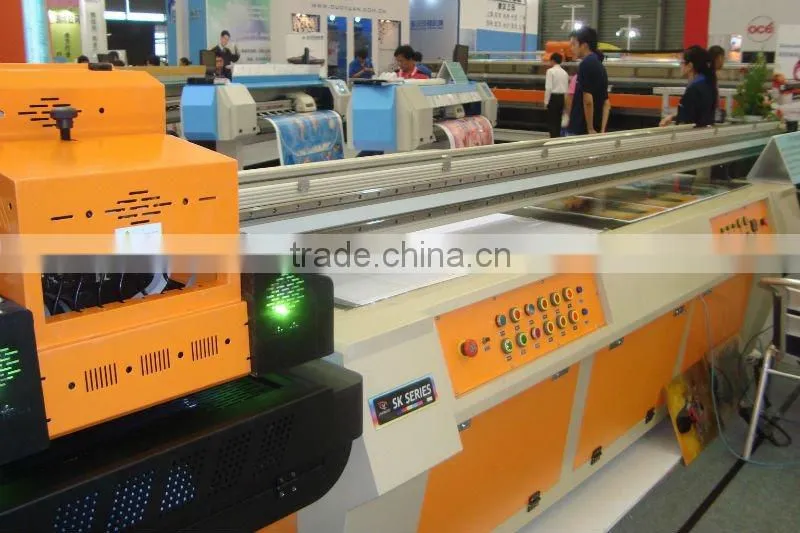

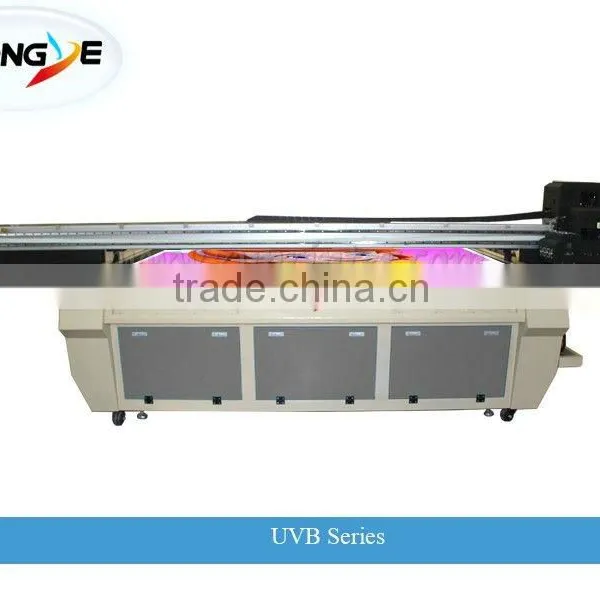

UVB-SK2818 sdopts Seiko255 print heads,equip with double servo derivers(Japanese Panasonic or Fuji servo motor and motor driver), It replaces the traditional screen printing technology, and brings to customers the individualized, small-lot, various, and multicolored products, with the output features of speediness, high efficiency and flexibility.
It is specialized in printing sheet to sheet. Media donot move during printing, the print head carriage move left and right and the beam move front and back to finish printing. Because the media donot move during printing, this series UV printers can print heavy sheet materials. Print height reach 10cm maximum
Usage: KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board;leather and all the roll to roll material like flex banner,mesh,one way vision,vinyl etc
The main date
| Name: | UVB-SK2818 |
| Class: | UVB series |
| Print technology: | Drop-on-demand Piezo electric |
| Printhead: | 4/5/7/10/12/14(SPT255/12pl) |
| Print width: | 2.50m*1.55m |
| Print height: | 10cm |
| Resolution: | 1440dpi max |
| Speed: | 2pass 24sqm/h ; 4pass 16sqm/h ; 6pass 8sqm/h(10/12/14 heads, double speed) |
| Locating mode: | Raster /servo |
| Color: | CMYK W LC LM |
| Media width: | 2.8m*1.8m |
| Media handle: | Sheet to sheet |
| Media types: | KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board;leather and all the roll to roll material like flex banner,mesh,one way vision,vinyl etc |
| Drying system: | UV lamp |
| File format: | TIFF,Postscript 3,JPEG,EPS,PDF |
| Working process: | Printmon software for windows xp |
| Rip: | Photoprint /maintop |
| Power supply: | 50hz/60hz 220v(10%)20A |
| Operation enviroment: | (Temperature )18-26(Humidity )40%-70% |
| Dimension: | 3.8m*2.0m*1.4m |
| Weight: | 1200KG |
the model is just for your referrence,we also have other model
