Smaller UV Flatbed Printer Machine(UVC0906) With Epson Print Head
US$ 10,000 - 14,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Liaoning, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian(China)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
uv Flatbed Printer UVC-SK0906US$ 10,000 - 14,000MOQ: 1 Set -
Small uv Flatbed Printer for GlassUS$ 10,000 - 14,000MOQ: 1 Set
-
uv Flatbed Printer With White Clour UVB-SK2818US$ 25,000 - 35,000MOQ: 1 Set
-
uv Flatbed Printer Machine for GlassUS$ 10,000 - 14,000MOQ: 1 Set
-
Small Format uv Flatbed Printer Machine UVC0906US$ 10,000 - 14,000MOQ: 1 Set
Condition
New
Plate Type
Flatbed Printer
Place of Origin
Liaoning, China
Brand Name
zhongye
Model Number
UVC-EP0906
Usage
Other, KT board,KT board,glass,wooden,ceramic,and so on
Automatic Grade
Automatic
Gross Power
1500w
Dimensions(L*W*H)
2.9m*1.3m*1.3m
Specifications
UVC0906(1)Super quality and competitive price
(2) one year guaranty
(3)lifetime maintain, 24 hours online technical support

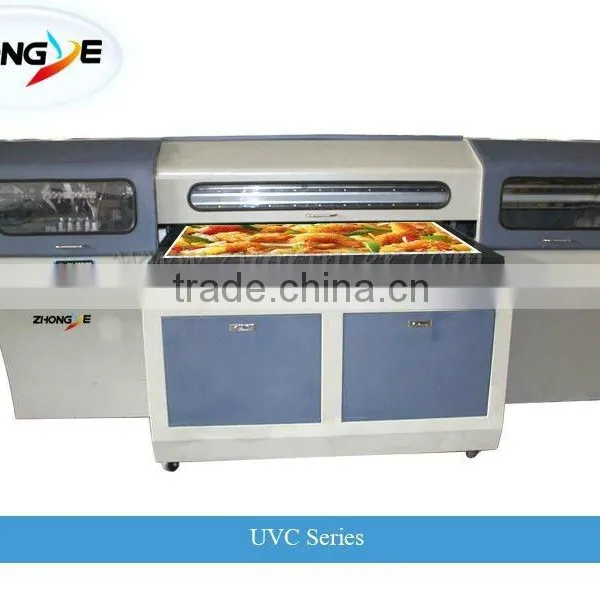

UVC-0906 is a small size UV flatbed printer,It adopts Epson print heads,equipped with double servo drivers, specialized in printing sheet to sheet. Media is located on printer flatbed and the printer flatbed move on two rails to finish printing. Print height reach 8cm maximum
It replaces the traditional screen printing technology, and brings to customers the individualized, small-lot, various, and multicolored products, with the output features of speediness, high efficiency and flexibility
Usage:KT board,PVC board,Plexiglass board,glass board,ceramic board,tile,metal board,leather and all the roll to roll material like flex banner,mesh,one way vision,vinyl ect
Details
| Name: | UVC-EP0906 |
| Class: | UVC series |
| Print technology: | Drop-on-demand Piezo electric |
| Printhead: | 1/2(Epson DX5) |
| Print width: | 0.80m*0.55m |
| Print height: | 8cm |
| Resolution: | 1440dpi max |
| Speed: |
1head: 2pass 25sqm/h; 4pass 16sqm/h; 6pass 10sqm/h 2heads: 2pass 50sqm/h; 4pass 32sqm/h; 6pass 20sqm/h |
| Locating mode: | Raster /servo |
| Color: | CMYK |
| Media width: | 0.90m*0.60m |
| Media handle: | Sheet to sheet |
| Media types: | KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board;leather and all the roll to roll material like flex banner,mesh,one way vision,vinyl etc |
| Drying system: | UV lamp |
| File format: | TIFF,Postscript 3,JPEG,EPS,PDF |
| Working process: | Printmon software for windows xp |
| Rip: | Photoprint /maintop |
| Power supply: | 50hz/60hz 220v(10%)20A |
| Operation enviroment: | (Temperature )18-26(Humidity )40%-70% |
| Dimension: | 2.9m*1.3m*1.3m |
| Weight: | 700KG |
