Specifications

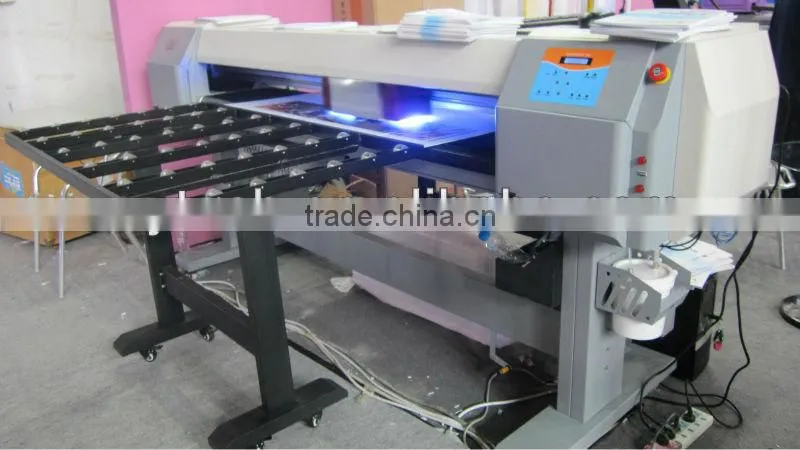

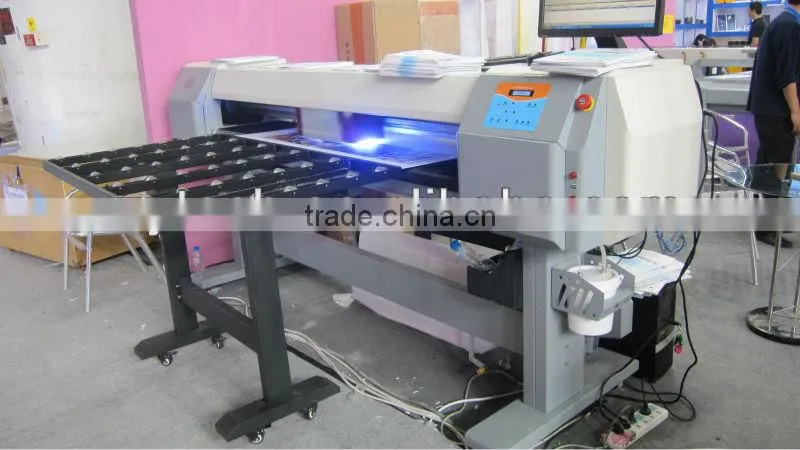

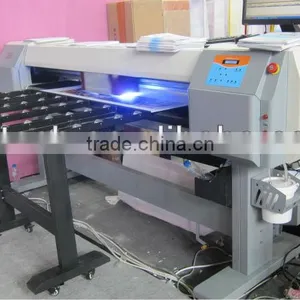

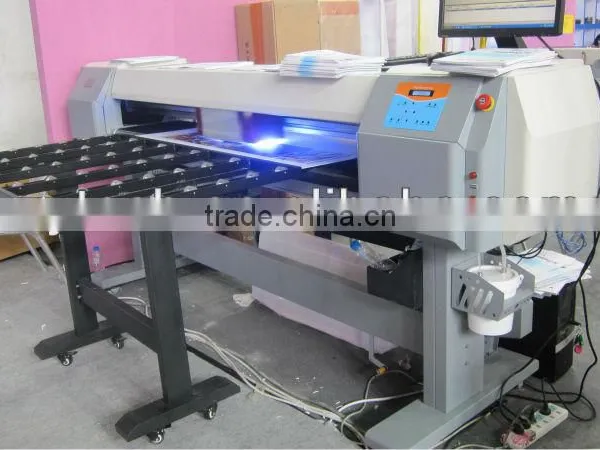

Small UV flatbed printing machine;7 colors (CMYK LC LM+W),width of 1.80m,4.80 cm thickness of material,can print on any surface.one of the biggest and honest manufacturers in china!
TEN YEARS GOLD BRAND!
QUALITY IS EVERYTHING!
1.Technical Specification
Model: ZY1800UVE
Printing heads: Drop-on-demand grayscale piezo electric
Print heads: 2 pieces Epson
Color: 5 colors (CMYK W)
Resolution options: 360x360/360x540/360x720/720x720/720x1440 dpi
Printing Speed:
Standard Quality:
High Quality:
Ultra Quality: 2 bits (3 drops)
10 heads 5 heads
Up to 43.0 sqm/hr * Up to 24.0 sqm/hr*
Up to 27.0 sqm/hr * Up to 16.0 sqm/hr*
Up to12.0 sqm/hr * Up to 8.0 sqm/hr*
Maximum media width: 180cm
Maximum printing width: 180cm
Maximum roll dimensions: Φ 25 cm
Maximum media thinkness: 4.80 cm
Media Types: Rigid boards include corrugated, foam core, gatorboard, sintra (PVC), Ceramic tiles,glass,plexiglass, wood, sheet metal, etc.;
Roll to roll include paper, vinlys, adhesive back vinyls, fabrics, etc.
Outdoor durability: 2 years
Dimensions: 3.80mLx1.57mWx1.37mH
Weight(Met) 800kg
2.Gerneral Information
Printing methods: Drop-on-demand piezo electric
Ink reservoirs: Refillable on the fly while printing
Ink characteristics: UV Curable Inks
Printhead controls: Print head temperature and voltage are software adjustable
Media feeding system: Free spin / motor-driven lazy loop for optimal banner tension
Media take-up system: Automatic motor-driven spool 60m (200') capacity
Media handling options: Roll to roll / Rigid Sheets
Drying system: LED Lamp
RIP software: Photoprint 5zhongye Edition
(Windows 2000, Windows Xp Pro SP2)
Color management: ICC based color, adjustment curves, density adjustment
File formats: TIFF,JPEG,Postscript 3,EPS,PDF etc.
Electrical requirements: 50Hz/60Hz,220V(±10%)>20A
Environmental requirements: Ambient temperature20-30,Relative humidity40-70%
Warranty: one year warranty
3.Together with the printer: CD for printing software and driver, instruction, for how to install and use it, and maintenance, also the spare parts box.
4.After sell service: anytime online technology support; video support; send technician to your place for helping you. all for free.
Honest Manufacturer Promise the Quality.
QUALITY IS EVERYTHING!
LIAONING ZHONGYE (ZY) TECHNOLOGY AND INDUSTRY DEVELOPMENT CO.,LTD.
162 Huishan St. the Hi-tech Development Zone, Shenyang,China,110164
TEL:0086 24 89789511 FAX: 0086 24 89789357
Cel: 18641923977
Contact person: Susan Ning
UV flatbed digital printing machine
