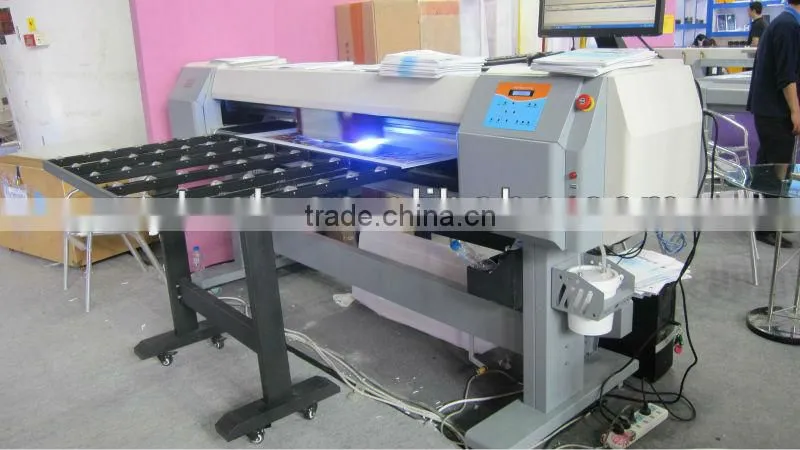

Help CenterDigital Flatbed Printer Inkjet Printer Dx5
Related Products
-
Zhongye Cheap Solvent PrinterUS$ 12,000 - 16,000MOQ: 1 Piece -
ZY UVE Economical Series Flatbed Printer With the DX5 Print Head and UV Lamp 1.8m/2.5m/3.2m With Eco Solvent InksUS$ 10,000 - 50,000MOQ: 1 Set
-
ZY UVE Economical Series Printer With the DX5 Print Head and UV Lamp 1.8m/2.5m/3.2m With Eco Solvent InksUS$ 10,000 - 50,000MOQ: 1 Set
-
2014 High Speed Large Format Printer (polaris512 35pl )US$ 40,000 - 50,000MOQ: 1 Set
-
2014 Fastest Solvent Printer!!!US$ 39,800 - 50,800MOQ: 1 Set
Roll to roll digital printing machine, we have 1.8m , 2.5m and 3.2m size, can be with one or two DX5 head,1440DPI,4color or CMYK double 4 color printing
Summary
Zhongye Solvent and Eco Flatbed Printers:Adopting SPT or Epson DX5 printheads, steel belt DC driver, (Alternative option:Guide rail, AC Servo driver) working with normal solvent or eco solvent ink, widely used for KT board; Paper board; PS board, and many other boards after being coated & roll-to-roll printing materials.
Application
Adhesive Vinyl, PVC, Mesh, Textile, Banner, Eco solvent inkjet paper etc.
KT board, PS board, Paper board, etc
After sold service
1.Anytime on line technology support
support
3.send the technician to your place for helping
Technical parameter
Print technology |
micro piezo dot-on-demand |
Print head |
1 group Epson DX5 printheads(paratactic structure)(2groups optional) |
Media Thickness |
2cm |
Printing width |
3.2m |
Resolution |
1440DPI |
Printing speed |
Draft Model: 540*720dpi 36sq.m./h Production model: 720*720dpi 20sq. m. /h High quality model: 720*1440dpi 16sq. m./h |
Ink |
Eco-solvent Inks Ink Cartridge: 350ml, 8pieces |
Locating mode |
Raster/servo |
Color |
CMYK |
Media width |
3.2m |
Media handle |
Auto media feeding, manual media releasing, Built-in variable adsorption |
Media types |
Adhesive Vinyl, PVC, Mesh, Textile, Banner, Eco solvent inkjet paper etc. KT board, PS board, Paper board, etc |
Drying system |
Front, back heating system(middle heating system is optional), middle flatbed sucker system, PID temperature controller |
File format |
TIFF,JPEG etc |
Working process |
Professional bi-language software(Chinese&English) |
Rip |
MAINTOP,PHOTOPRINT |
Power supply |
220~240V50/60HZ |
Operating Enviroment |
1000W(maximum)300W(standard) Temperature:20-25°C Humidity:40%-70% |
Dimension |
4.4m*0.9m*1.25m |
Weight |
460Kg/640Kg |
Remark: Make the above parameters is 2 heads, 3.2/2.5/1.8 meter machine test standard.
