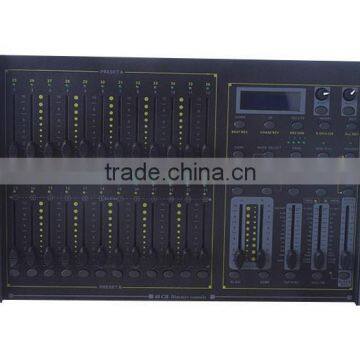

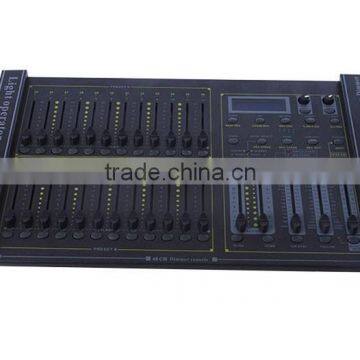

Help CenterSimar Dimming DMX512 Dimmer Console Light Dimmerable Control M-24-48
Related Products
-
Simar Splicing Module Chroma Key White /green/blue Color Screen Backdrop for Virtual StudioUS$ 60MOQ: 10 Square Meters -
Simar Splicing Module Chroma Key White /green/blue Color Screen Backgroundfor PhtographyUS$ 60MOQ: 10 Square Meters
-
Power Control Power Supply Power Switch Dimming Equipment Light DimmerUS$ 150 - 160MOQ: 10 Sets
-
1m/1.5m/2m/2.5m/3m/3.5m Balance Light Pantograph for StudioNegotiableMOQ: 10 Sets
-
Rail Track Light Moving EquipmentNegotiableMOQ: 10 Sets
* 24-channel DMX-512 dimming console
* 4 pages with 12 scenes each yields 48 total playback faders (simultaneous playback)
INTRODUCTION
The dimmer console is a universal intelligent lighting controller. lt allows the control of 48
channels with 48 scene/chase playback faders Each scene/chase can contain up to 1000 individual
steps, or looks. On the surface, when in the CHASE SCENE mode, there are 12 physical faders
fo the playback of the saved programs. There are 4 pages of scenes playback on page A. . programs
can be triggered by music, midi,automatically or manually. Channel assignments can be reprogrammed
for ease of controlling different fixtures. On the surface you will find various programming tools tools
such as 24channel faders. A/Bmaster faders for cross mixing. And Fade and Speed time faders for on
the fiy adjustments. And it also has an LED display for easy navigation of controls and menu functions.
Features
USER MANUAL
* 24-channel DMX-512 dimming console
* 4 pages with 12 scenes each yields 48 total playback faders (simultaneous playback)
* 96,000 programmable steps
* 2 programmable aux buttons
* Adjustable chase and fade times
* Re-assignable channels
Additional Features
* 3-pin and 5-pin DMX connections
* Built-in cross fader, dark and kill buttons
* MIDI in, out and thru (with file dump)
* Direct audio input
* Sequential linking or simultaneous playback of chases
* Override chases on the fly
* Beat-activation, tap sync, auto run, midi in/out
* 7-space (7 U) rack mount
