12 Channels DMX512 Dimmer LED DIMMER WALL MOUNTED DIMMING CONTROLLER PANEL

12 Channels DMX512 Dimmer LED DIMMER WALL MOUNTED DIMMING CONTROLLER PANEL thumbnail-1
12 Channels DMX512 Dimmer LED DIMMER WALL MOUNTED DIMMING CONTROLLER PANEL thumbnail-2
12 Channels DMX512 Dimmer LED DIMMER WALL MOUNTED DIMMING CONTROLLER PANEL thumbnail-3
12 Channels DMX512 Dimmer LED DIMMER WALL MOUNTED DIMMING CONTROLLER PANEL thumbnail-4
12 Channels DMX512 Dimmer LED DIMMER WALL MOUNTED DIMMING CONTROLLER PANEL photo-1
12 Channels DMX512 Dimmer LED DIMMER WALL MOUNTED DIMMING CONTROLLER PANEL photo-2
12 Channels DMX512 Dimmer LED DIMMER WALL MOUNTED DIMMING CONTROLLER PANEL photo-3
12 Channels DMX512 Dimmer LED DIMMER WALL MOUNTED DIMMING CONTROLLER PANEL photo-4
US$ 65 - 75 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Colorbeam
Model Number:
CB-DP12
Contact Supplier Request Quote Chat Now
Guangzhou Min Illumination Electronic Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Colorbeam
Model Number CB-DP12
Type Manual Switch
Voltage 220V

On base of standard DMX512 communication protocols, CB-DP12 dimming panel is mainly used for dimming of meeting rooms, lobby of hotels, multi-functions room's single light or grouping lamps, it can control every light that is designed accprding to DMX512 communication protocols.



Features

1. 12 DMX channels, each channel can be dimmed separately

2. 4 scenes, all of them can be edited or saved at any time

3. Blue light bar sceen brightness indicator, CD pattern dimmer knob

4. You can connect max 10 pcs of them to make them synchronized

5. Input: DC9-36V or AC100-240V

6. Size: L176xW88xH42mm

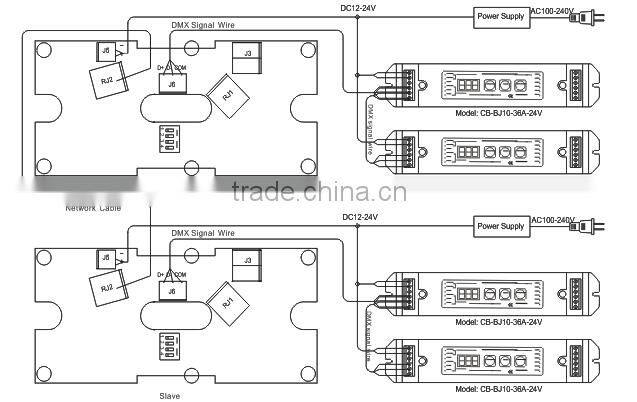

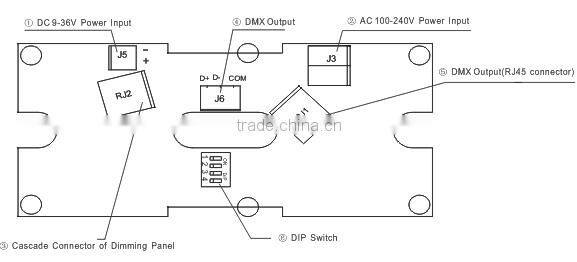

Wiring Diagram of DMX dimming Panel

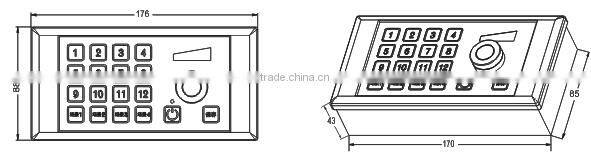

Outlook and Size

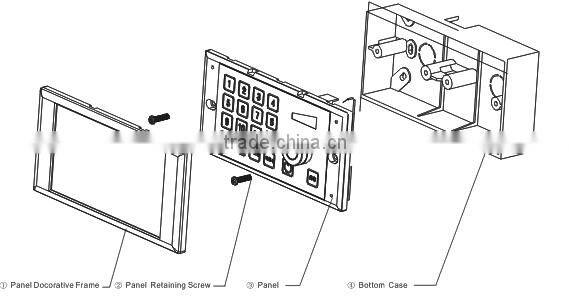

Diagram of Installing Parts:

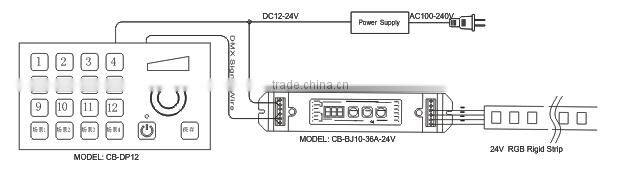

Connection Diagram

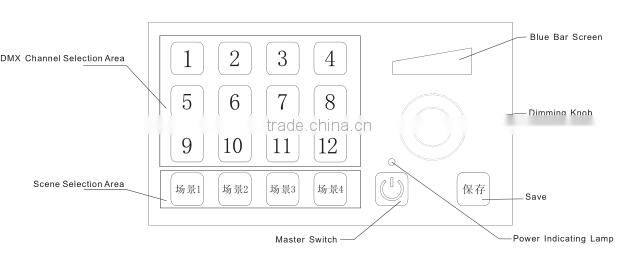

Program Running





1. Master switch shows blue light;
2. Scene selection: CB-DP12 provides 4 scenes for user, user can modify and save each scene to adapt to different occasion;
3. DMX channel selection: Each scene has 12 DMX channels, you can choose one channel or many channels at the same time;
4. Adjustment of brightness: If you only want to dim one of channel, please press relative key (keys can be also used as on/off switch), when this relative key display blue light and flick, then you can use dimming knob to choose the needed brightness (clockwise brighter, counterclickwise darker);
Note: CB-DP12 does not support to dim multi channels at the same time;
5. Save: Adjust it into the condition that you need, then press “save” button, blue bar screen will flick one time, then it means you have already saved it successfully;
6. Scene Modify: Repeat Step 2,3,4,5.

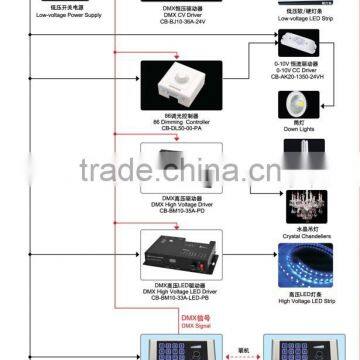

Applications:

Our company

Guangzhou Minar Illumination Electronic Limited was established in 2001, mainly produce LED Lighting and relative Lighting controllers. In order to better develop LED control technology, on base of intrinsic technology, we gathered several experienced engineer who has over 10 years experience in LED application technology in 2007, and set up a department to focus on R& D and production of LED Lighting Controllers—Guangzhou Minar Illumination LED Controller department.

Guangzhou Minar Illumination LED Controller department use trademark of "Colorbean".  With DMX512 and 0-10V dimming control technology as the basis, flexibly use each kinds of technologies, research,develop and produce many kinds of LED control and dimming products. Until now we have 0-10V series products which is mainly designed for hotel LED dimming and DMX control products that is mainly designed for KTV, in addition, for request of contractors, we have also developed other products that is related to projects, such as two liner LED spotlight and down light with patent technology. If you are interested in more details of our products, please go visit our website and click “Products”.

We have experienced R&D team so we can supply timely technology support for our customer’s new products R & D . If you need our help ,please feel free to contact us! Your request is also our request.


Exhibitions & Shows

Every year, Minar Illumination attends Lighting Fair, sucn as Guangzhou and HK lighting fair. Looking forward to meeting you in the fair.

12 Channels DMX512 Dimmer LED DIMMER WALL MOUNTED DIMMING CONTROLLER PANEL

Package and Delivery

We usually deliver the goods by Air, Sea, DHL, UPS, Fedex...

12 Channels DMX512 Dimmer LED DIMMER WALL MOUNTED DIMMING CONTROLLER PANEL

FAQ

Question 1: Are you a factory or a trading company?

Answer: We are a factory.

Question 2:  What's the main business of Minar Illumination?

Answer: Illumination focuses on Fiber Optic Lighting and LED controllers and dimmers from 2001. We have experienced engineers dedicated to the research and development of Optic Fiber and LED controlling and dimming system.

Question 3: What' s the main products of Minar controllers and decoders?

Answer: Minar Illumination has developed 0-10V/1-10V, DMX, Triac dimmer, decoder and controller series which are compatible with systems of Philips, Osram, Lutron, Meanwell etc.

Question 4: What Minar Illumination will do if we experience problems after receiving your products?

Answer: Our products have been strictly inspected before delivery. Once you receive the products you are not satisfied with, please feel free to contact us in time. We will do our best to solve the problems and meet your satisfactory.
