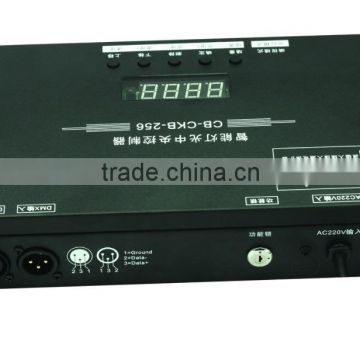

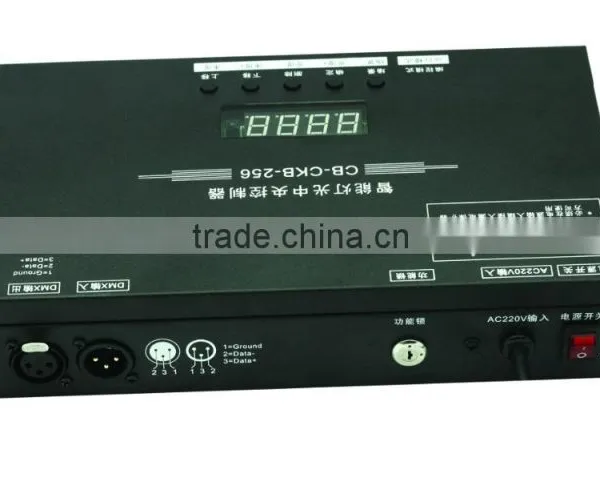

2016 DMX512 Home Theater KTV & Bars Intelligent Lighting Programming Controller

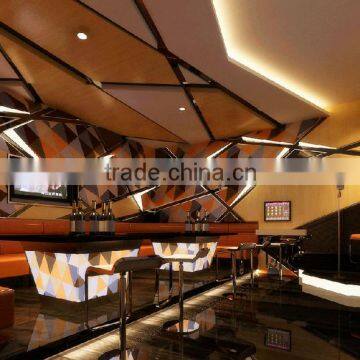

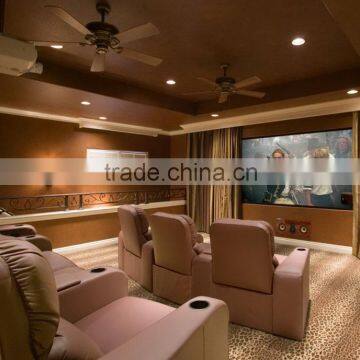

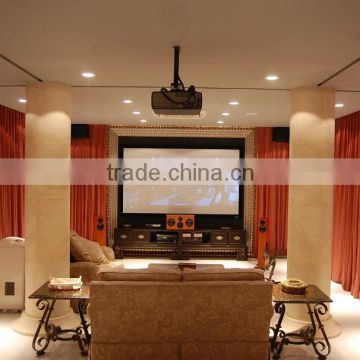

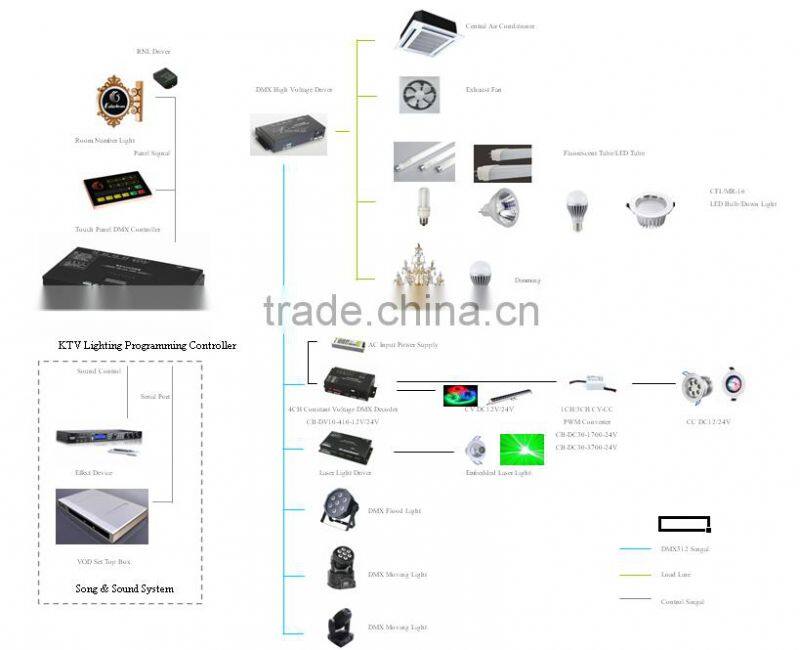

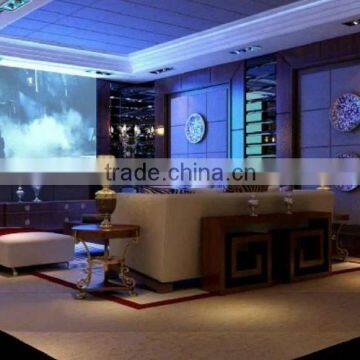

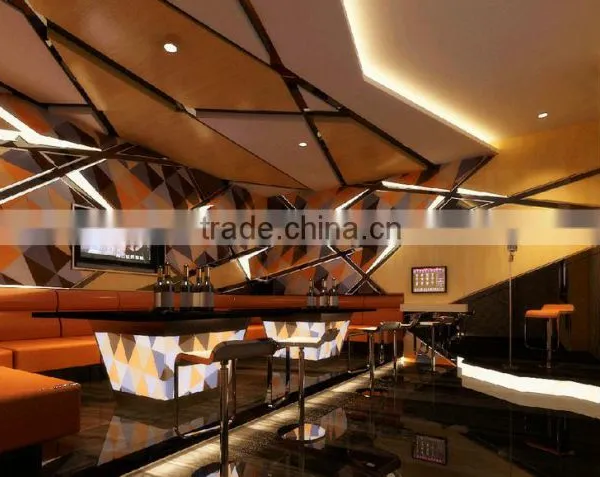

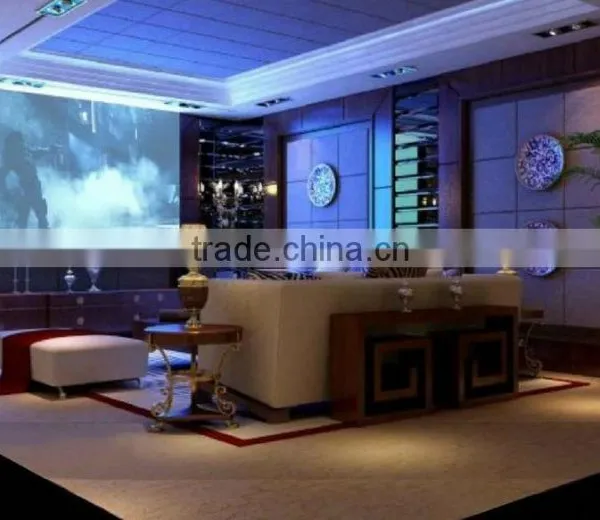

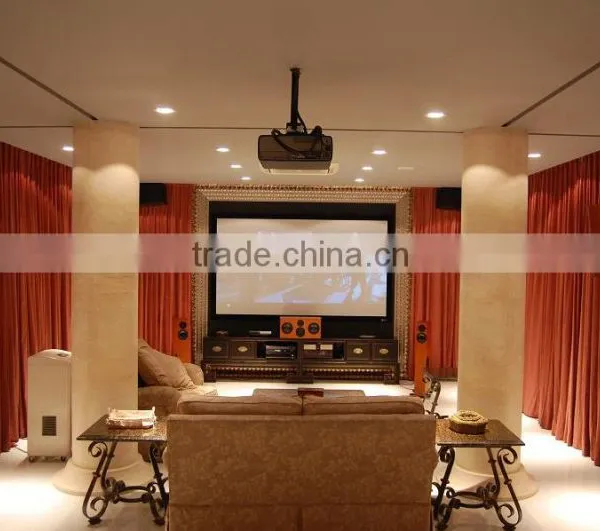

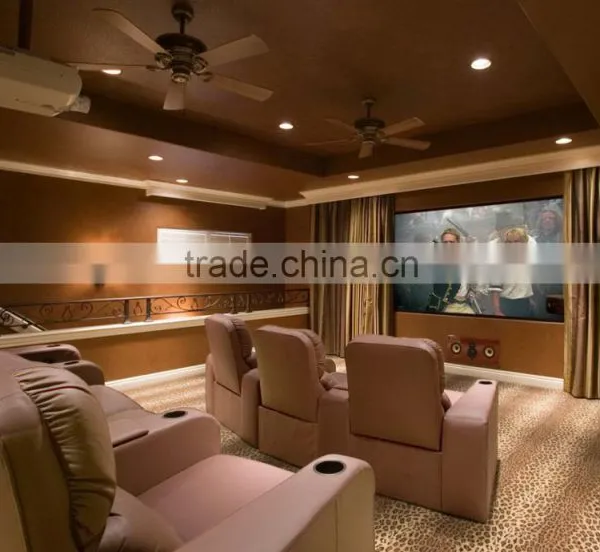

Intelligent Lighting Controller is specially designed for KTV, Bars, Night Club and home theaters where entertainment prevails. It combines the function of lights, aircon, exhaust fans, song & sound system control together into one mini set. With the help of the touch panel controller, one could easily get he ideal light and sound effect for the entertainment which usually has to be achieved through professional programming console.
Products Features:
1. 256 DMX Channels;
2. DMX512 input signal, program could be edited and saved;
3. Maximum 11 programs with maximum 20 steps for each;
4. Speed and brightness are adjustable during running;
5. Capable being sound activated with tunable sensitivity;
6. Support multi KTV control panels;
7. Support room number light with infrared control;
8. Compatible with the popular song selection system;
9. Input Voltage:AC110V/220V;
10. Size: L390*W200*H65mm
How to use:

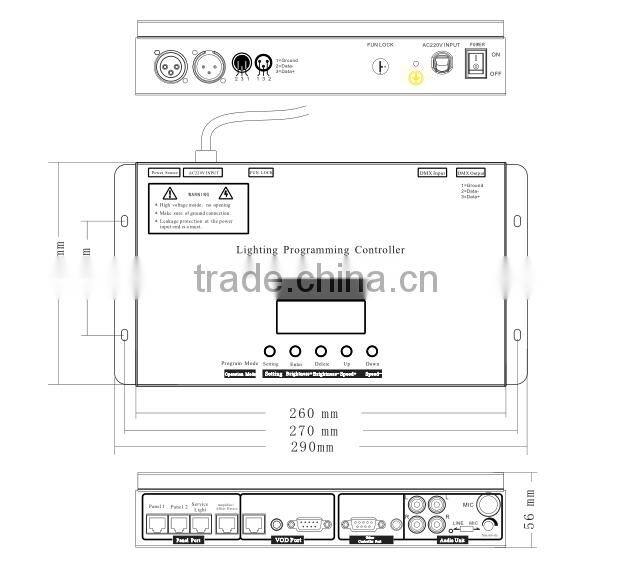

Size:

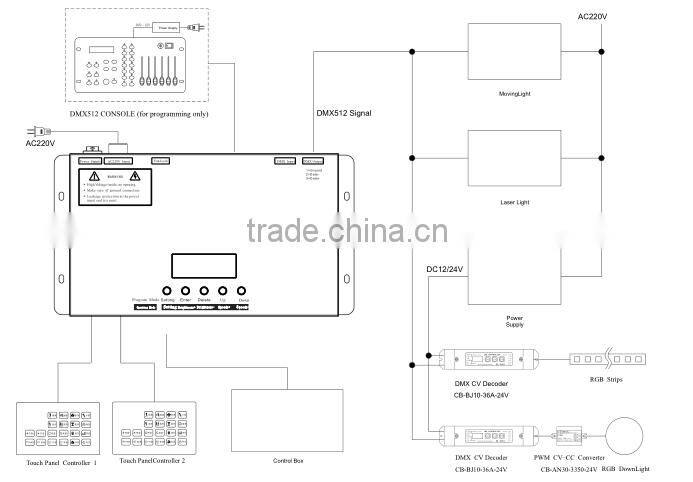

Connection Diagram:
How to edit Programs with the Intelligent Lighting Controller
Press and hold 'UP' and 'DOWN' at the same time till the first digit blinks, and it comes to the programming mode. When the small red dots at the foot of the first and forth digits flash, it receives the DMX signals from DMX512 console. If not, please check the connection between the lighting controller and the DMX512 console (signal wire of DMX 512 console must connect the DMX IN interface of the lighting controller).

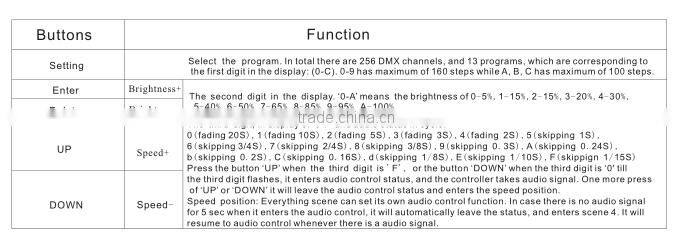

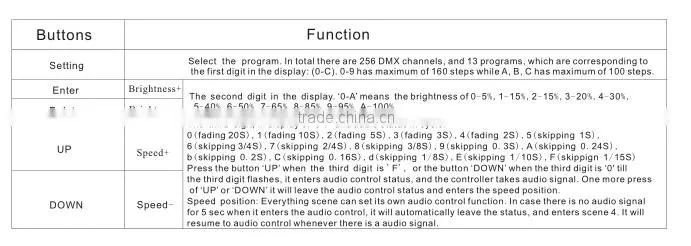

Button Function Introduction of the lighting Controller:
How to Run Programs
1. The touch panel controller connected to the 'Panel Port';
2. The central controller of other system connected to the 'Other controller Port';
3. The buttons on the lighting controller itself. The following is the introduction:
Established in May, 2002, Minar Illumination Electronic Limited is located in NanCun town, Panyu District, Guangzhou. Minar Illumination is a high-technology company, which has committed ourselves to fiber optic lighting and professional lighting control system manufacture.
Mnar Illuminatin has applied Colorbeam as the trademark for its lighting control system. The product ranges covers DMX512, PWM, 0-12V and Triac dimmer, decoder adn controllers. We also developed the touch panel master controllers and programming controllers for hotel, KTV and bars integrated lighting control.
Every year, Minar Illumination attends Lighting Fair, sucn as Guangzhou and HK lighting fair. Looking forward to meeting you in the fair.
We usually deliver the goods by Air, Sea, DHL, UPS, Fedex...
Question 1: Are you a factory or a trading company?
Answer: We are a factory.
Question 2: What's the main business of Minar Illumination?
Answer: Illumination focuses on Fiber Optic Lighting and LED controllers and dimmers from 2001. We have experienced engineers dedicated to the research and development of Optic Fiber and LED controlling and dimming system.
Question 3: What' s the main products of Minar controllers and decoders?
Answer: Minar Illumination has developed 0-10V/1-10V, DMX, Triac dimmer, decoder and controller series which are compatible with systems of Philips, Osram, Lutron, Meanwell etc.
Question 4: What Minar Illumination will do if we experience problems after receiving your products?
Answer: Our products have been strictly inspected before delivery. Once you receive the products you are not satisfied with, please feel free to contact us in time. We will do our best to solve the problems and meet your satisfactory.
