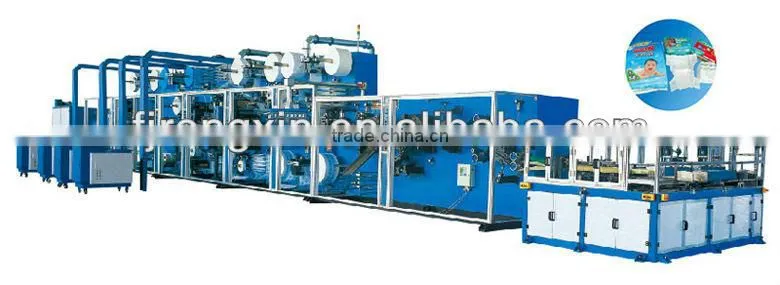

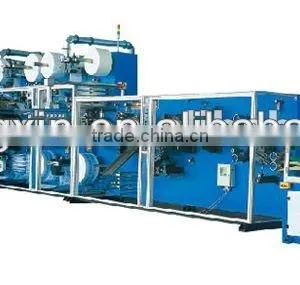

Baby Diaper Machine
1- The machine can produce four sizes (S.M.L.XL) baby products by changing cutting tools and gear box
2- High speed teeth-like crusher can take treated and untread pulp.
3- Adopt PLC control system.
4- Safety protective door.
5- Automatic splicing material without stopping the machine, so the working speed is guaranteed.
6- Automatically detect and reject defective products and trim remove.
7- Automatically stop the machine when material is broken or used out.
8- Human machine interface is controlled by touch screen.
9- Most electric components are famous international brand.
Baby Diaper Machine Technical Parameter
Power supply |
380V 50HZ |
Installation capacity |
100KW |
Designed production speed |
350 pcs/min |
Stable production speed |
250-300 pcs/min |
|
Product dimension
|
a). S(380-390)×280mm b). M(430-440)×320mm c). L(470-480)×320mm d). XL (510-520)×330mm (customized) |
Waster Percent |
less than 2% (excluding caused by glue applicators failure) |
Machine dimension |
20×1.5×2.8m (L×W×H) |
Weight |
30Tons |
