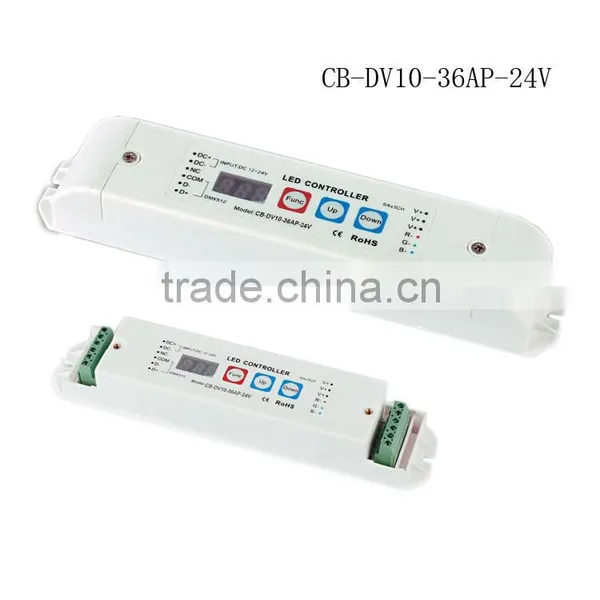

12V/24V 3CH RGB LED Strip 18A Constant Voltage DMX512 Decoder DMX Controller Quality Choice

Product Description

DMX Dimming Controller operates under either the control of DMX512 programming controller or its preset programs  (Master/Slave mode), it can satisfy different requirements, mainly used for dimming of  LED strips, LED linear wall washer,  LED spot light,LED downlight, LED ceiling light.

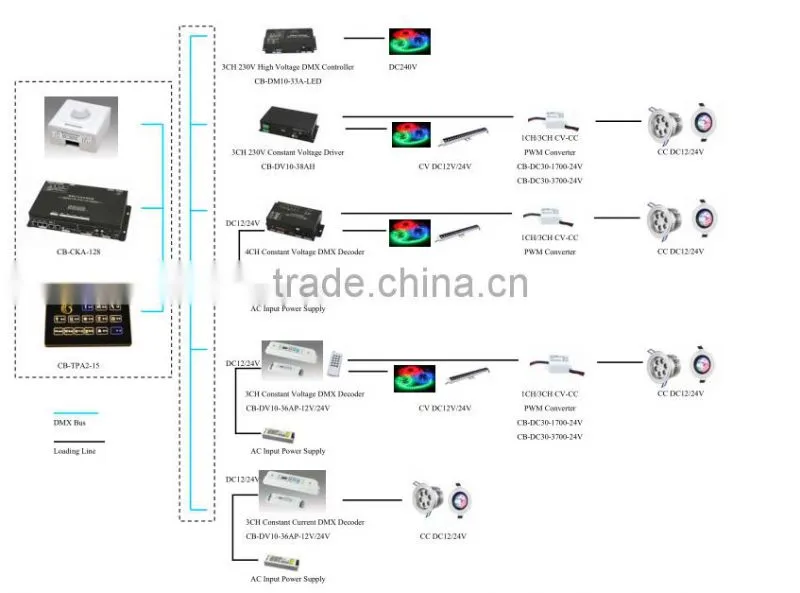

Related DMX512 Decoders

 Product Feature:

1. 0-100% dimmable, steady w/o any flicker;

2. 22 preset programs(effect of being static, skipping, fading, chasing), 8 levels of speed, with Master/Slave function;

3. DMX512 control (3 channels, 5 channels, and 6 channels are optional);

4. RGB dimmer has 256 levels;

5. Buttons & digital display;

6. Support PWM amplifier for more loading;

7. High frequency PWM output for LED lighting, capable for filming w/o flicker.

Technical Parameter:

 How to use

Connection Diagram

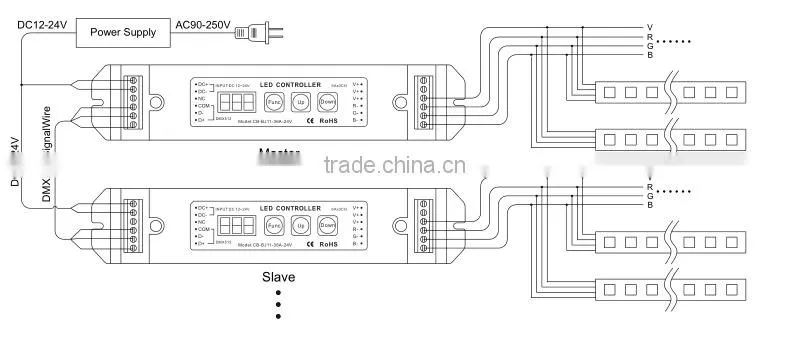

a. Master/Slave mode:

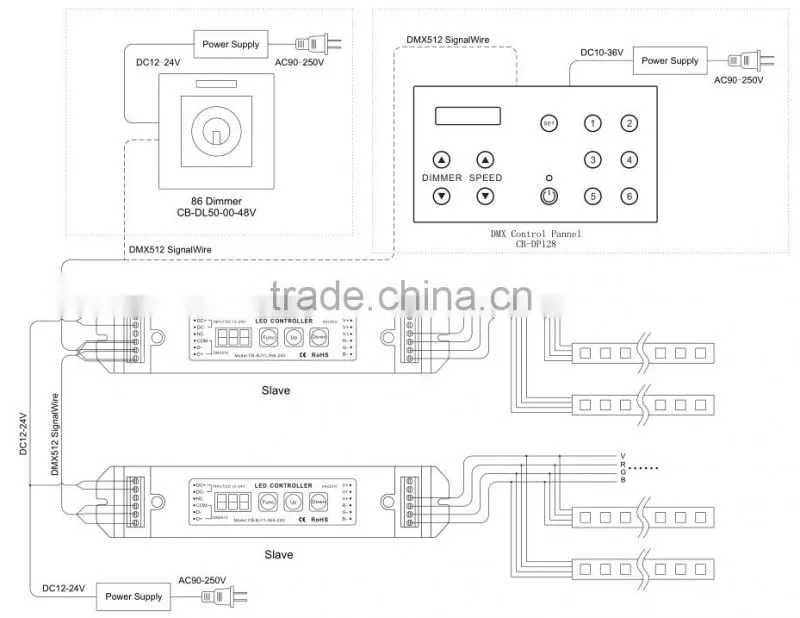

b. Mode of DMX controller:

Setting of DMX512 imming Controller

Our DMX decorder applies 3 buttons & digital display to set the control mode:

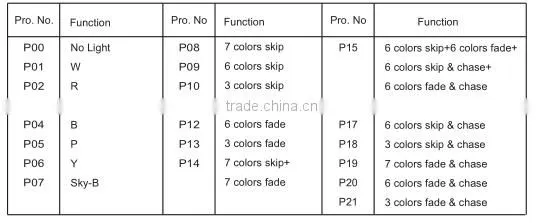

Chart of Presetted Programs

 IR Remote Controller

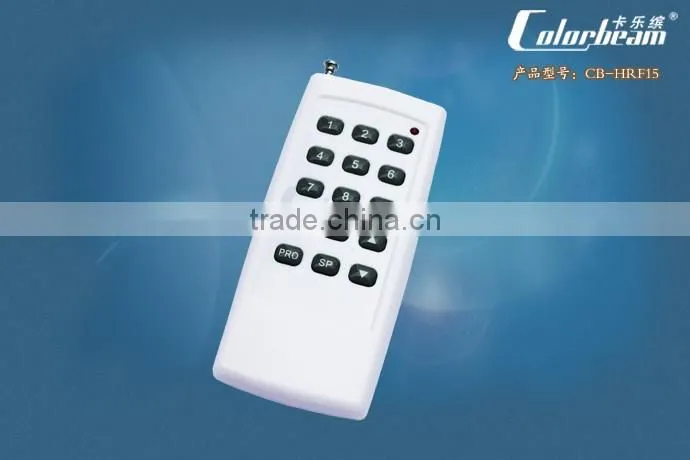

Wireless remote controller (15 keys): CB-HRF15

Turn on the wireless remote control function under MASTER menu Wireless remote control can set the Pre-programs running speed and brightness.

Press PRO to enter the pre programs set. Press the 0-9 keys to select the pre-program number that you want to run first select tens, Second choice bits, also available and keys to select the pre-program, no operation if more than three minutes, or twice the value is greater than 21.

SP key is to enter the pre-program speed setting, press the 0-7 keys to select the speed you want to run, also available and key to select running speed If did not operate more than three minutes, or twice the values of the press is greater than 7, then the operation is invalid.

The Dim key is to enter the pre program Brightness (DIMMER) setting, press the 0-7 keys to select 8 different brightness level (0 is no light for the most bright), also available and keys to select the brightness. If did not operate more than three minutes, or twice the value of the press is greater than the operation is invalid.

Press 9 to enter the FLASH speed settings press the keys to select the speed you want to run also available and key to select running speed Degrees If did not operate more than three minutes, or twice the values of the press is greater than 7, then the operation is invalid.
