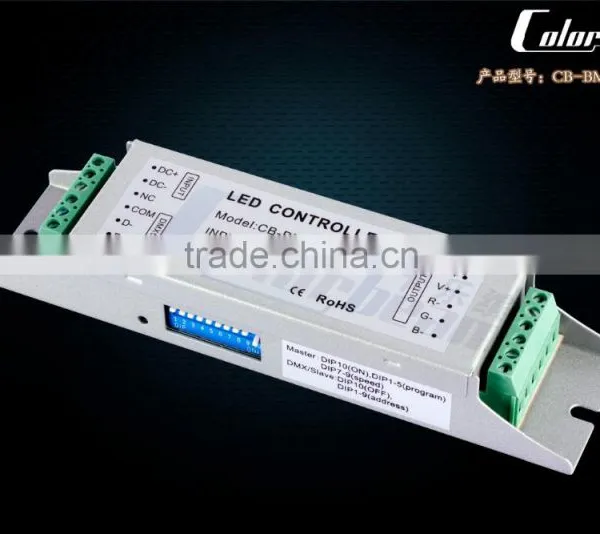

Help CenterMinar 12V-24V 3CH IR Control 18A Constant Voltage DMX512 RGB LED Decoder DMX Controller
Related Products
-
Minar 3CH IR Control 700mA Constant Current DMX512 RGB LED Decoder DMX ControllerUS$ 15 - 20MOQ: 20 Pieces -
Minar 2016 Remote Control Constant Current PWM Output DMX512 Decoder DMX ControllerUS$ 15 - 20MOQ: 20 Pieces
-
3CH IR Control 700mA Constant Current DMX512 RGB LED Decoder DMX ControllerUS$ 15 - 20MOQ: 20 Pieces
-
RGB 3CH 350mA Constant Current RF Wireless Remote Controller DMX512 DecoderUS$ 15 - 20MOQ: 20 Pieces
-
48V,350mA*3CH, DMX Constant Current DimmerNegotiableMOQ: 1 Piece
DMX Dimming Controller operates under either the control of DMX512 programming controller or its preset programs (Master/Slave mode), it can satisfy different requirements, mainly used for dimming of LED strips, LED linear wall washer, LED spot light,LED downlight, LED ceiling light.
Related DMX512 Decoders
Product Feature:
1. 0-100% dimmable, steady w/o any flicker;

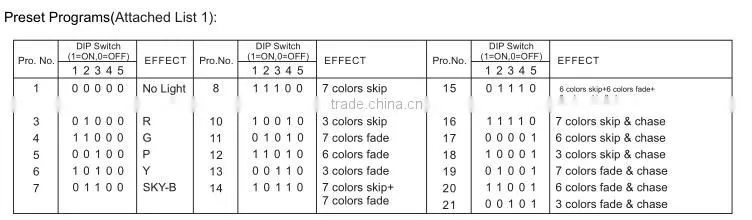

2. 22 preset programs(effect of being static, skipping, fading, chasing), 8 levels of speed, with Master/Slave function;
3. DMX512 control (3 channels, 5 channels, and 6 channels are optional);
4. RGB dimmer has 256 levels;
5. Buttons & digital display;
6. Support PWM amplifier for more loading;
7. High frequency PWM output for LED lighting, capable for filming w/o flicker.
Technical Parameter:
| Product name | 3CH IR Control 18A Constat Voltage LED RGB DMX Decoder |
| Item Number | CB-BM10-36A-24V |
| Channels | 6A x 3CH |
| Input Signal | DMX512 digital signal |
| Drive Output | 0~100% PWM dimming signal |
| Power Supply | DC12~24V |
| Power Output | 432W(24V), 216W(12V) |
| Remote Control Range | 10 meters |
| Operating Tempeture | 0~50℃ |
| Size | L165XW41XH27mm |
| Weight | 200g |
How to use

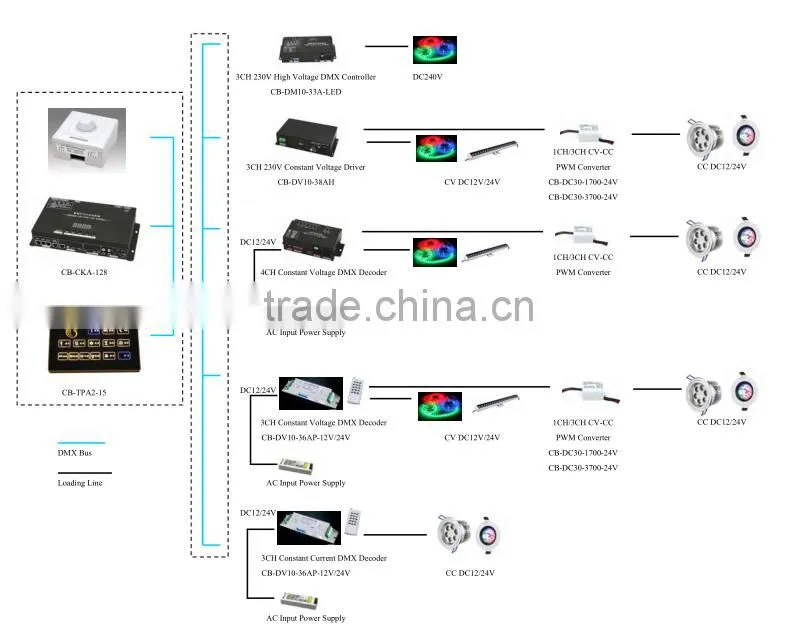

Connection Diagram

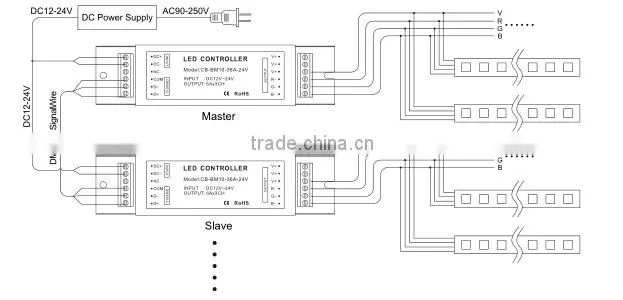

a. Master/Slave mode:

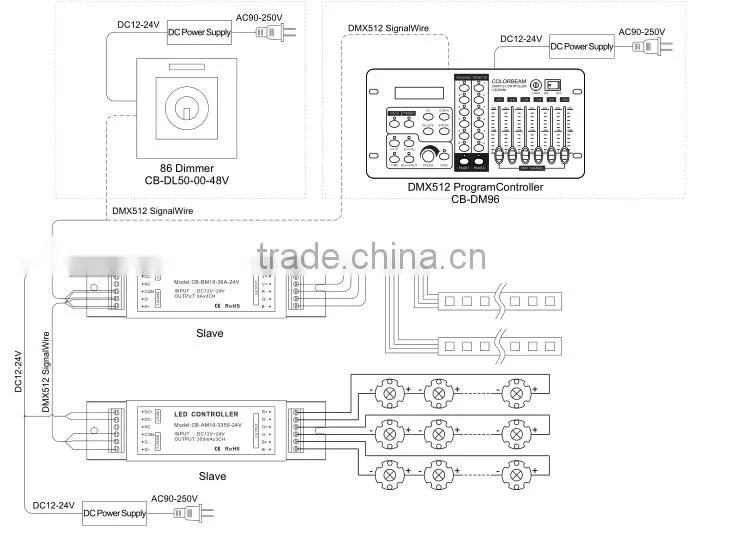

b. Mode of DMX controller:

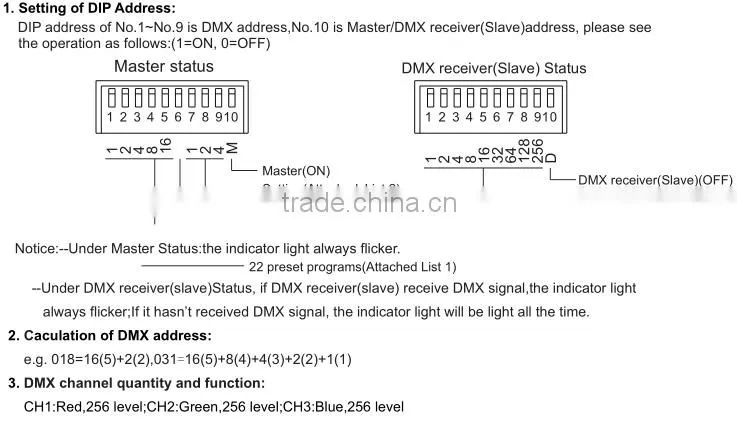

Setting of DMX512 imming Controller
Wireless remote controller (15 keys): CB-HRF15
Turn on the wireless remote control function under MASTER menu Wireless remote control can set the Pre-programs running speed and brightness.
Press PRO to enter the pre programs set. Press the 0-9 keys to select the pre-program number that you want to run first select tens, Second choice bits, also available and keys to select the pre-program, no operation if more than three minutes, or twice the value is greater than 21.
SP key is to enter the pre-program speed setting, press the 0-7 keys to select the speed you want to run, also available and key to select running speed If did not operate more than three minutes, or twice the values of the press is greater than 7, then the operation is invalid.
The Dim key is to enter the pre program Brightness (DIMMER) setting, press the 0-7 keys to select 8 different brightness level (0 is no light for the most bright), also available and keys to select the brightness. If did not operate more than three minutes, or twice the value of the press is greater than the operation is invalid.
Press 9 to enter the FLASH speed settings press the keys to select the speed you want to run also available and key to select running speed Degrees If did not operate more than three minutes, or twice the values of the press is greater than 7, then the operation is invalid.
Established in May, 2002, Minar Illumination Electronic Limited is located in NanCun town, Panyu District, Guangzhou. Minar Illumination is a high-technology company, which has committed ourselves to fiber optic lighting and professional lighting control system manufacture.
Mnar Illuminatin has applied Colorbeam as the trademark for its lighting control system. The product ranges covers DMX512, PWM, 0-12V and Triac dimmer, decoder adn controllers. We also developed the touch panel master controllers and programming controllers for hotel, KTV and bars integrated lighting control.
Every year, Minar Illumination attends Lighting Fair, sucn as Guangzhou and HK lighting fair. Looking forward to meeting you in the fair.
We usually deliver the goods by Air, Sea, DHL, UPS, Fedex...
Question 1: Are you a factory or a trading company?
Answer: We are a factory.
Question 2: What's the main business of Minar Illumination?
Answer: Illumination focuses on Fiber Optic Lighting and LED controllers and dimmers from 2001. We have experienced engineers dedicated to the research and development of Optic Fiber and LED controlling and dimming system.
Question 3: What' s the main products of Minar controllers and decoders?
Answer: Minar Illumination has developed 0-10V/1-10V, DMX, Triac dimmer, decoder and controller series which are compatible with systems of Philips, Osram, Lutron, Meanwell etc.
Question 4: What Minar Illumination will do if we experience problems after receiving your products?
Answer: Our products have been strictly inspected before delivery. Once you receive the products you are not satisfied with, please feel free to contact us in time. We will do our best to solve the problems and meet your satisfactory.
