Help CenterAluminium Aging Furnace (single Door,L=6m.)
Related Products
-
300T-630T Single Head Aluminum Profile Puller,with Automatically Interrupted SawUS$ 30,000 - 40,000MOQ: 1 Set -
1650T-2500T Single Head Profile Puller With Automatically Interrupted SawUS$ 30,000 - 40,000MOQ: 1 Set
-
630T-1350T Single Head Aluminum Puller With Automatically Interrupted SawUS$ 30,000 - 40,000MOQ: 1 Set
-
Aluminum Log Billet Heater,2000T With Hot Log ShearNegotiableMOQ: 1 Set
-
Aluminum Log Heating Furnace,2000T With Hot Log ShearNegotiableMOQ: 1 Set
We can produce 300T-3600T 6m,12m,18m single door or double door aluminium aging furnace,send us inquiry,and back you a success.
Parameters of 6m single door aging furnace
Product |
Description |
Basket size |
6000*1000*650mm |
Chamber size |
7500*2300*2300mm |
Basket distribution |
6 baskets, 2 rows each level, 3 levels in total |
Max length of profile |
6.5meters |
Overall size of furnace |
8600*2700*3400mm (furnace door and circulation fan is not included) |
|
Thickness of liner |
Side: 200mm |
Top: 160mm | |
Bottom: 120mm | |
|
Circulation fan |
Air volume:65000 m3/h, motor power: 30 KW |
The fan is frequency controlled to save energy | |
fuel |
Gas, directly heating model |
Rated working temp. |
205°C |
Max working temp. |
250°C |
Furnace door |
Single door, electric lift |
Self locked | |
Working time |
Less than 90 min (from room temp. to rated temp.) |
Temp. difference after keeping 30 min |
Less than 5°C |
|
Temp. control |
4 K type thermocouple, the temp. automatically displayed on the screen. |
Automatically temp. control, with alarm system | |
|
Furnace structure |
Stand: made of high quality steel |
Sealing plate: Q235 plate | |
insulation material: high quality alumina silicate fibre | |
Surface temp. of the furnace |
20°C higher than room temperature at most |

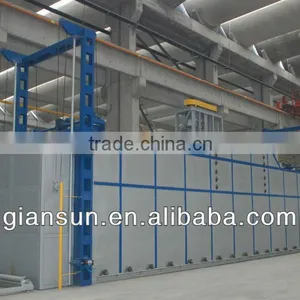

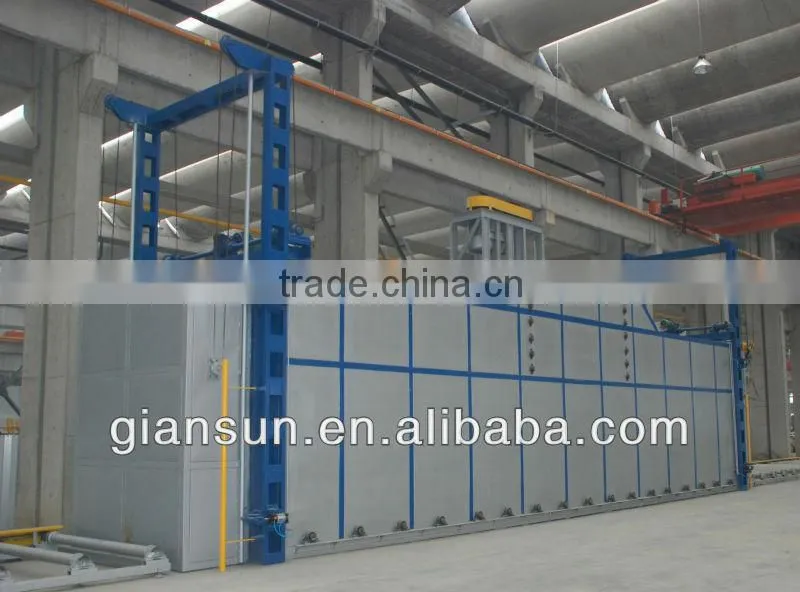

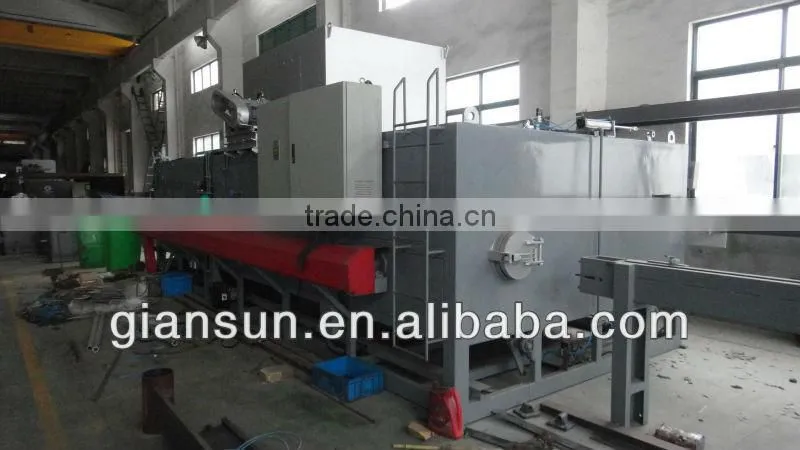

Pictures of aluminium aging furnace:
Total aluminum extrusion production line:
All items:
1,Billet heating furnace with hot log shear;
https://img13.fr-trading.com/search/product?SearchText=billet+heating+furnace
2,Aluminum extrusion press;
https://img13.fr-trading.com/search/product?SearchText=hydraulic+extrusion+press
3,Quenching system;
4,Handing table(Runout table-catching table-puller-cooling table-stretcher table-stretcher-store table-profile saw table-profile saw-saw gauge table-finishing saw)
https://img13.fr-trading.com/search/product?SearchText=handing+system
5,Puller
https://img13.fr-trading.com/search/product?SearchText=single+head+puller
6,stretcher
7,Aluminium aging furnace
https://img13.fr-trading.com/search/product?SearchText=aging+furnace
8,Control system
9,Die furnace
https://img13.fr-trading.com/search/product?SearchText=die+oven
We can do complete extrusion line for you,and our engineers are ready for sever you.

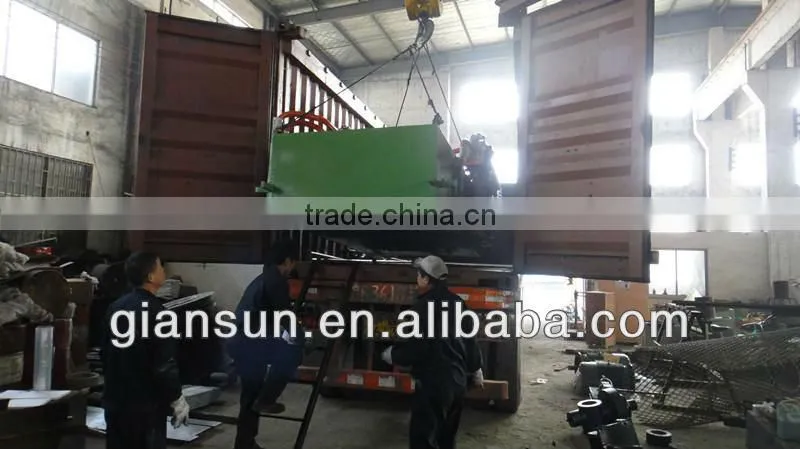

Factory:
Project case:
